Advanced Usage

Copy Image into Rich Text Editor​

  1. Firstly, upload the image file to SQL Connect

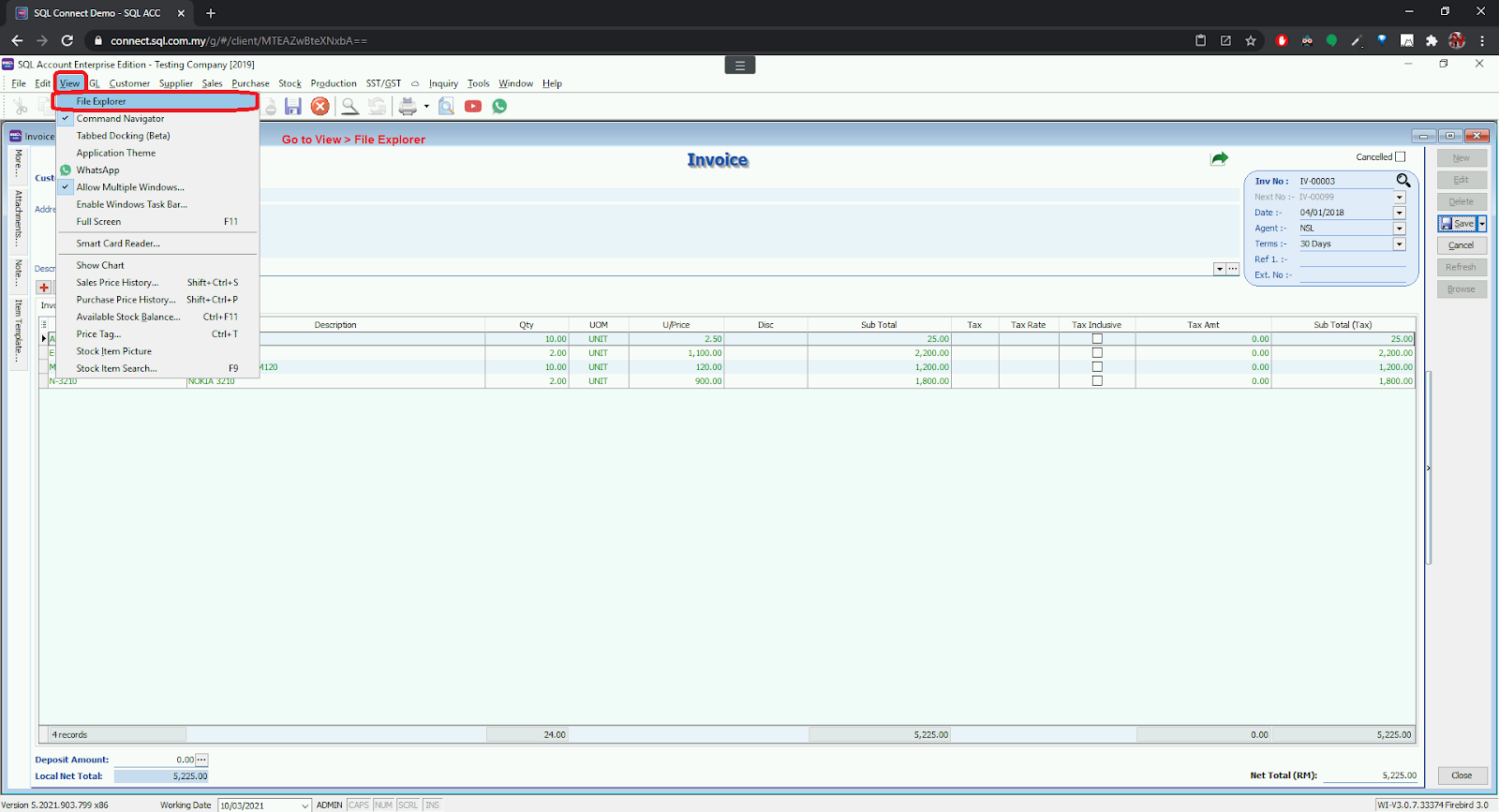

  2. In SQL Account / SQL Payroll, go to View > File Explorer

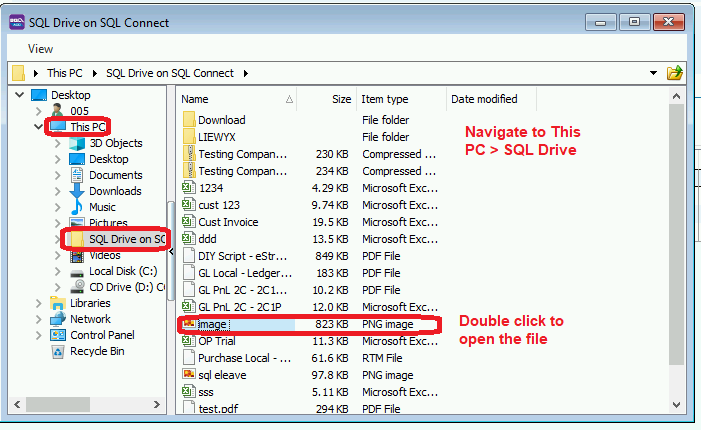

  3. Navigate to This PC > SQL Drive on SQL Connect > double click to open your image file

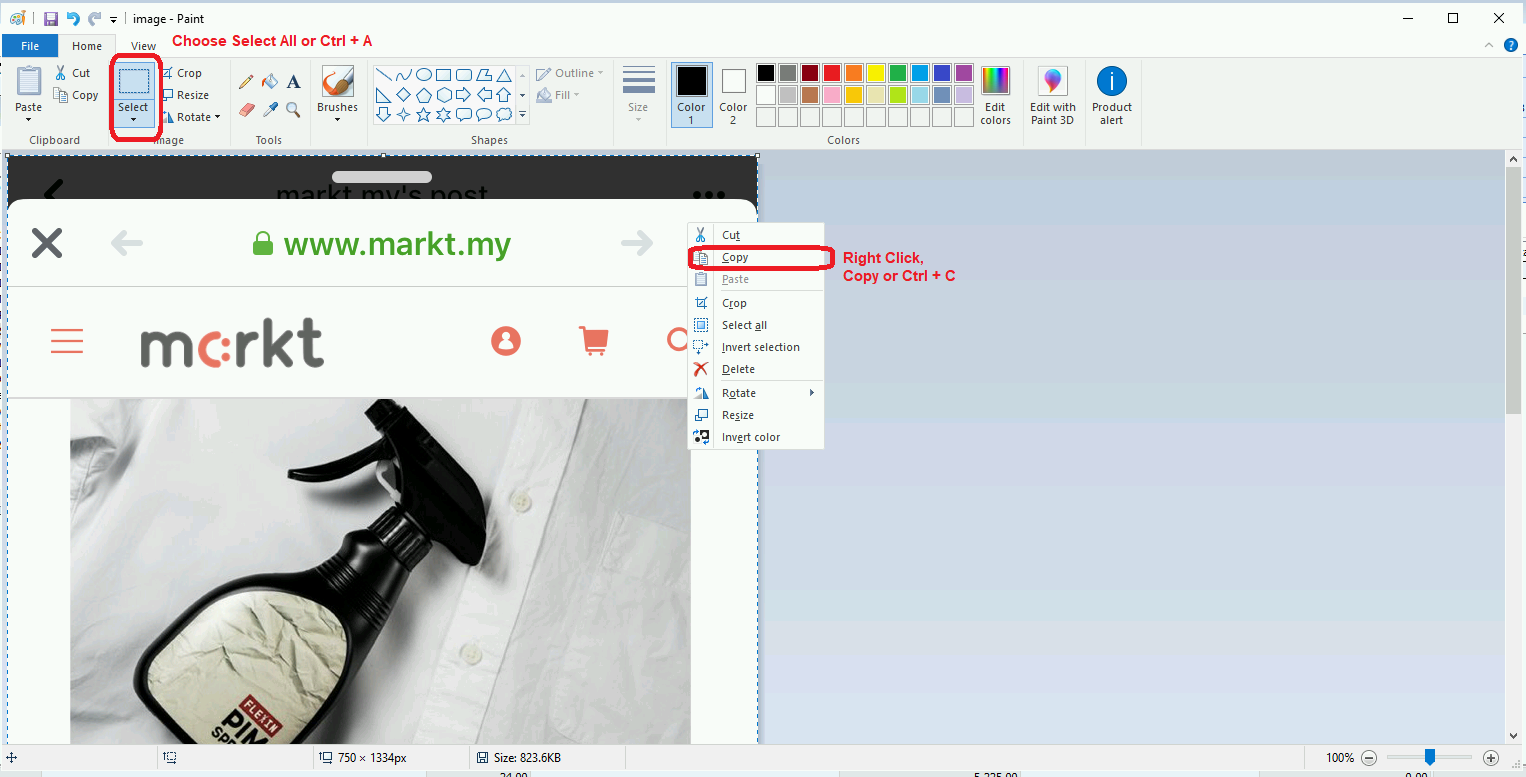

  4. Select All (or press Ctrl + A), and then copy it.

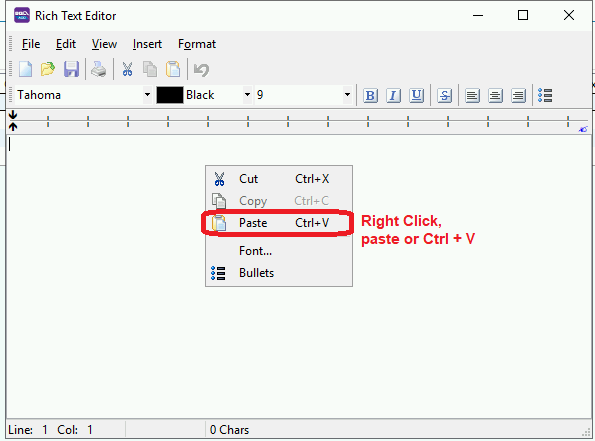

  5. Go to the rich text editor, paste the image you just copy.

copy-image-rich-1 copy-image-rich-2 copy-image-rich-3 copy-image-rich-4

Delete Files in SQL Drive​

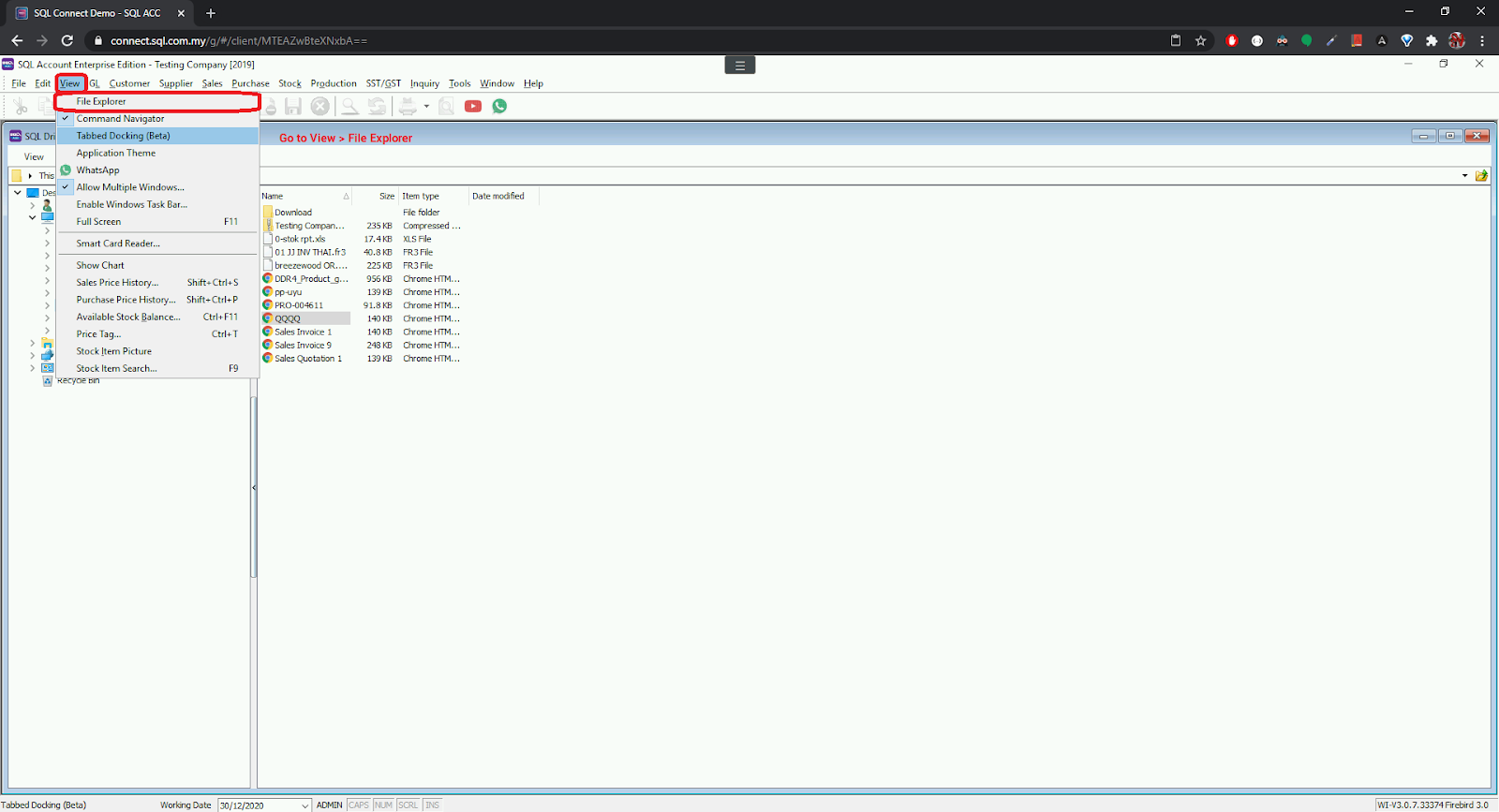

  1. In SQL Account / SQL Payroll, navigate to View > File Explorer

    delete-files-1

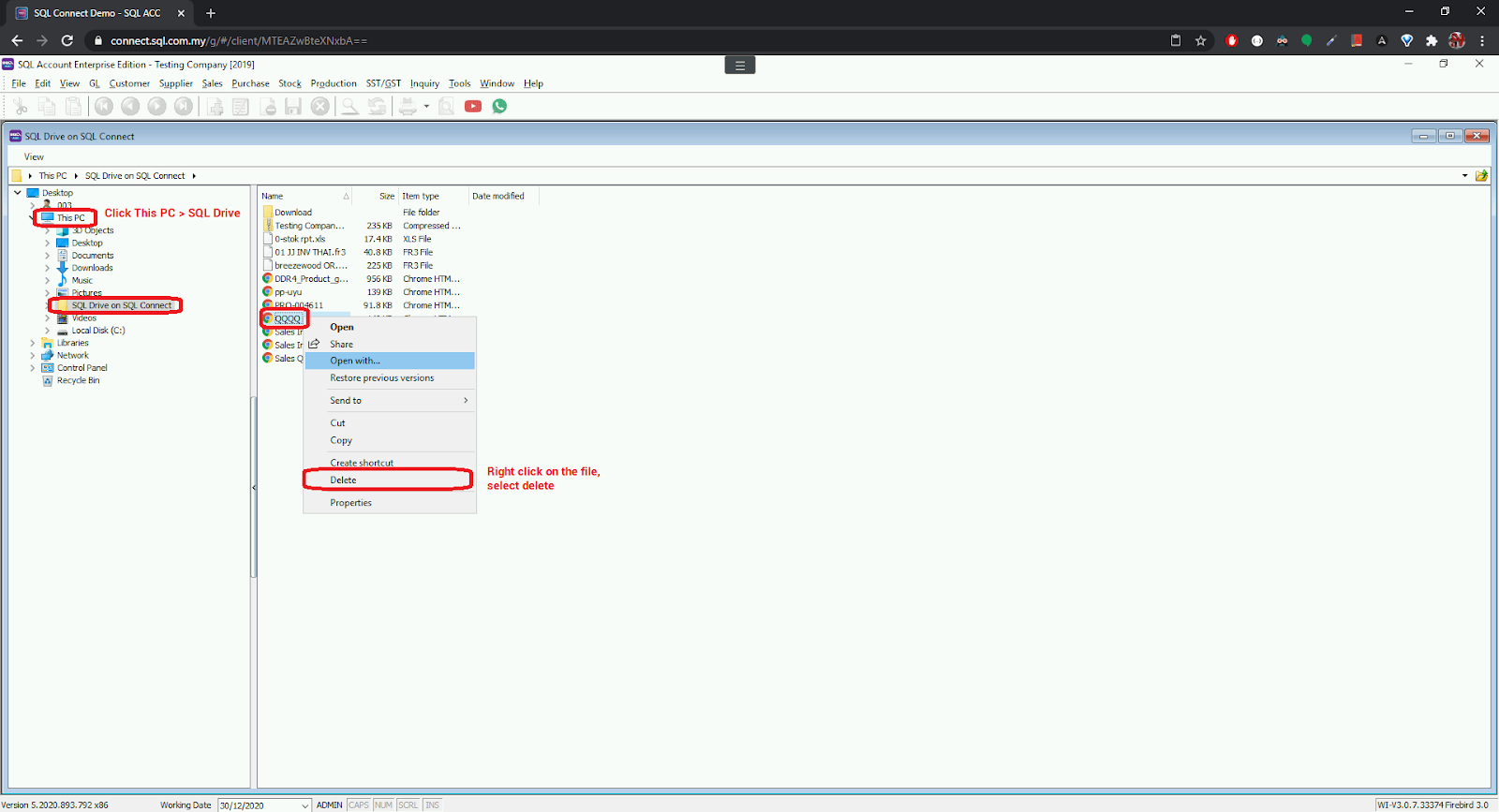

  2. Go to SQL Drive on SQL Connect, right click on the file and select Delete

    delete-files-2

Kill Firebird Connections From Application​

This action requires ADMIN user privilege

Login Screen​

warning

The last logged-in user must be ADMIN; otherwise, the process will fail.

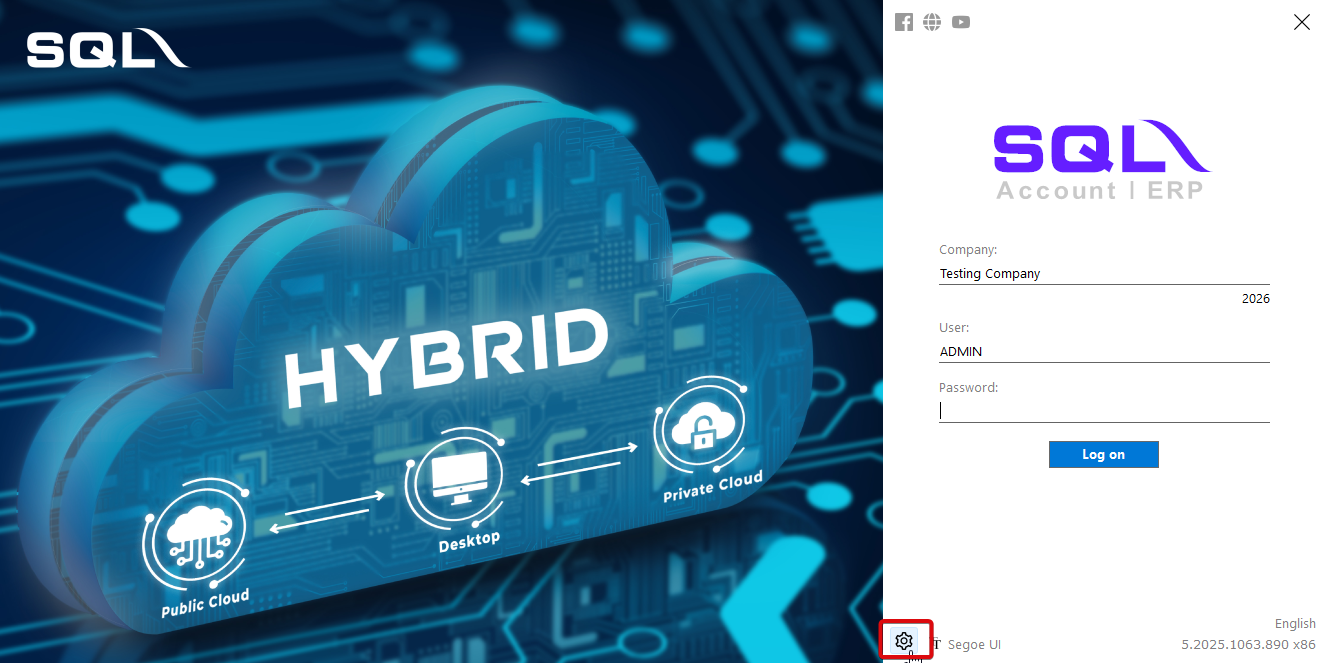

  1. In the login screen, click on the Settings ⚙️

    kill-firebird-connections-1-1

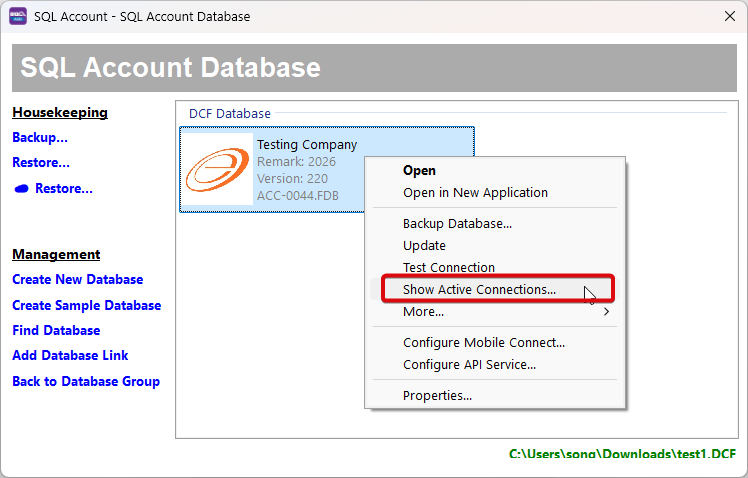

  2. Right click on the database, select Show Active Connections...

    kill-firebird-connections-1-2

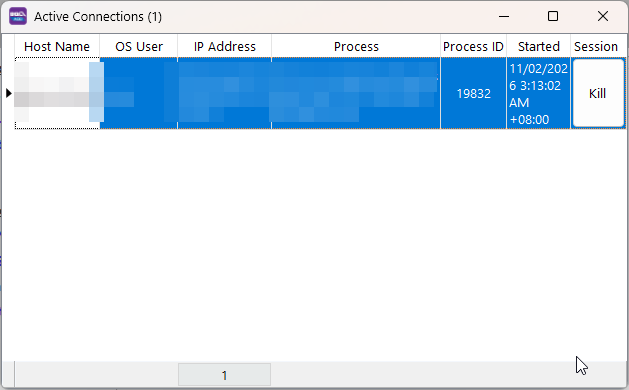

  3. Press on the "Kill" button to close the connection

    kill-firebird-connections-1-3

After Login​

  1. In the application, navigate to File > Show Active Connections...

    kill-firebird-connections-2-1

  2. Press on the "Kill" button to close the connection

    kill-firebird-connections-1-3

info

This guide applies only to the public cloud; for private‑cloud deployments, you can link as usual, similar to a local setup.

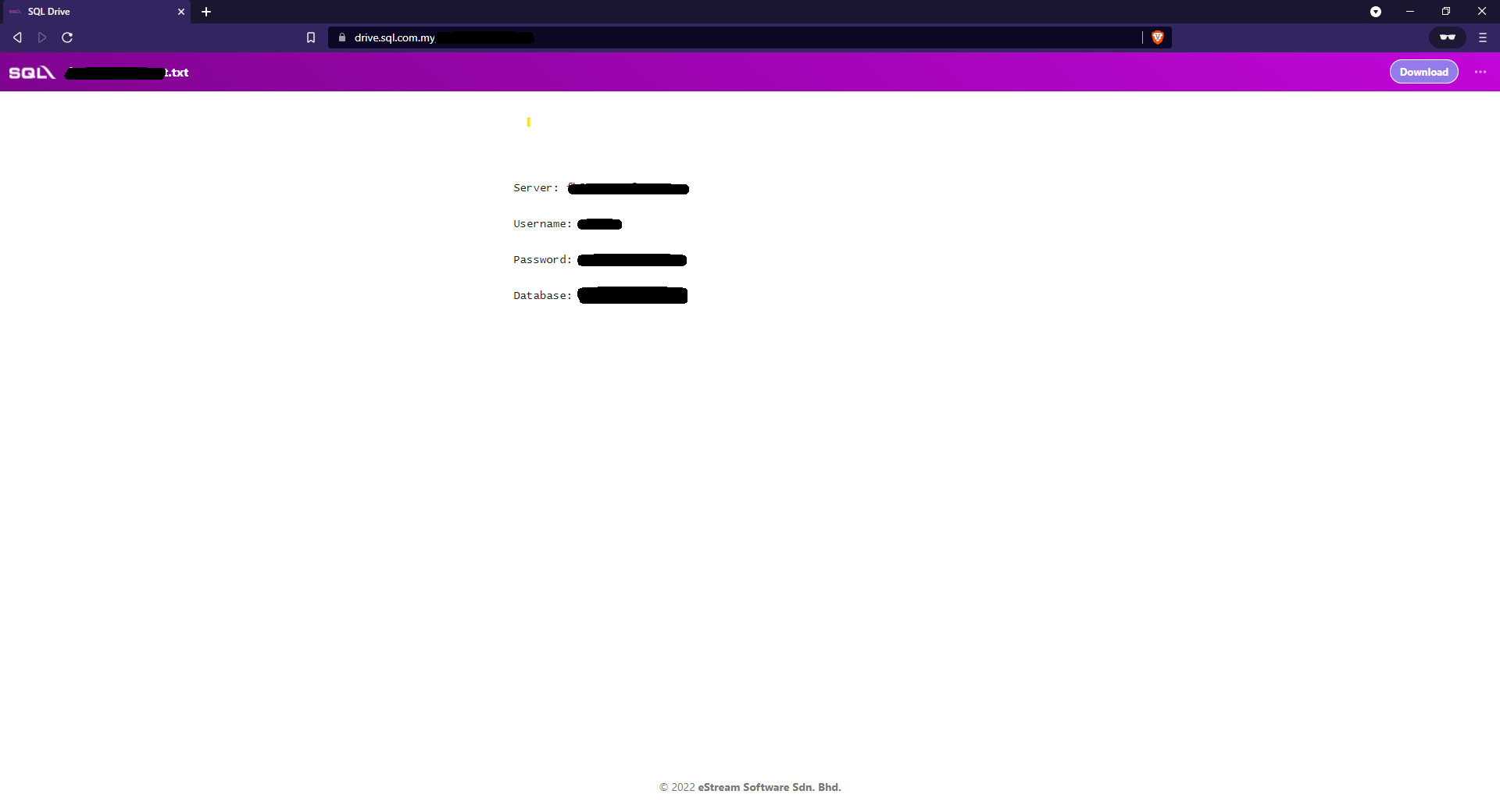

  1. First, request SQL Pos integration from your support/dealers. You will receive a file link. In the file, you can find all the information required to link local SQL Pos with SQL Account. Example on how the file looks like:

    link-with-sql-pos-1

  2. In SQL Pos, fill in accordingly.

    link-with-sql-pos-2

Printing Half Page​

Windows 10​

  1. Navigate to Control Panel > View devices and printers

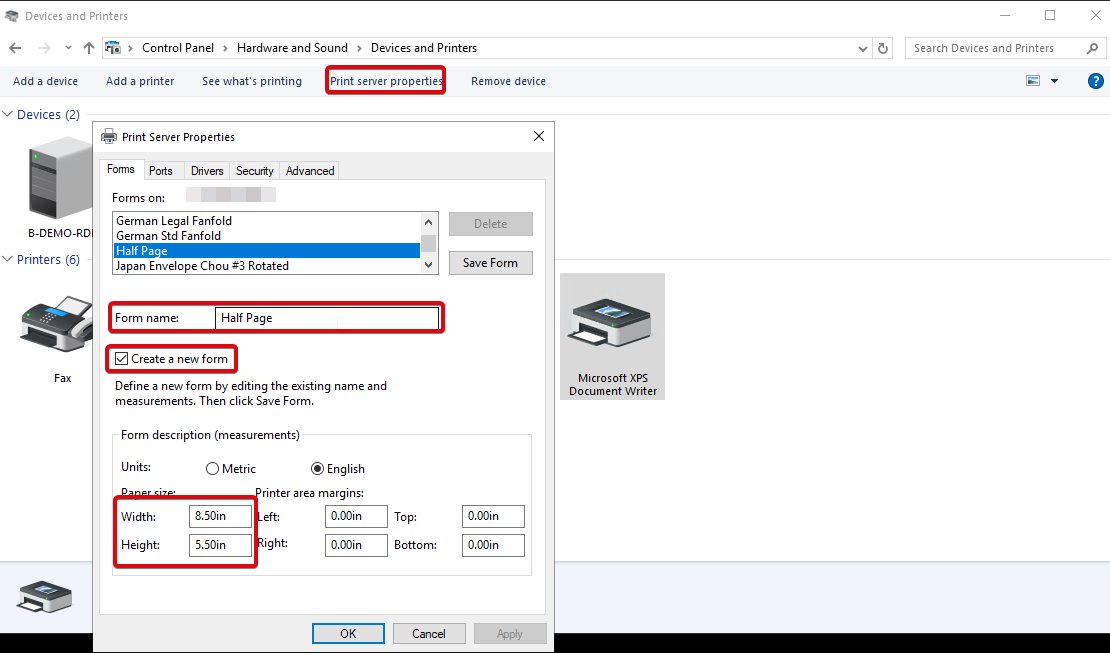

  2. Next, select the printer and click on Print server properties, add a new page size (half page)

    half-page-1

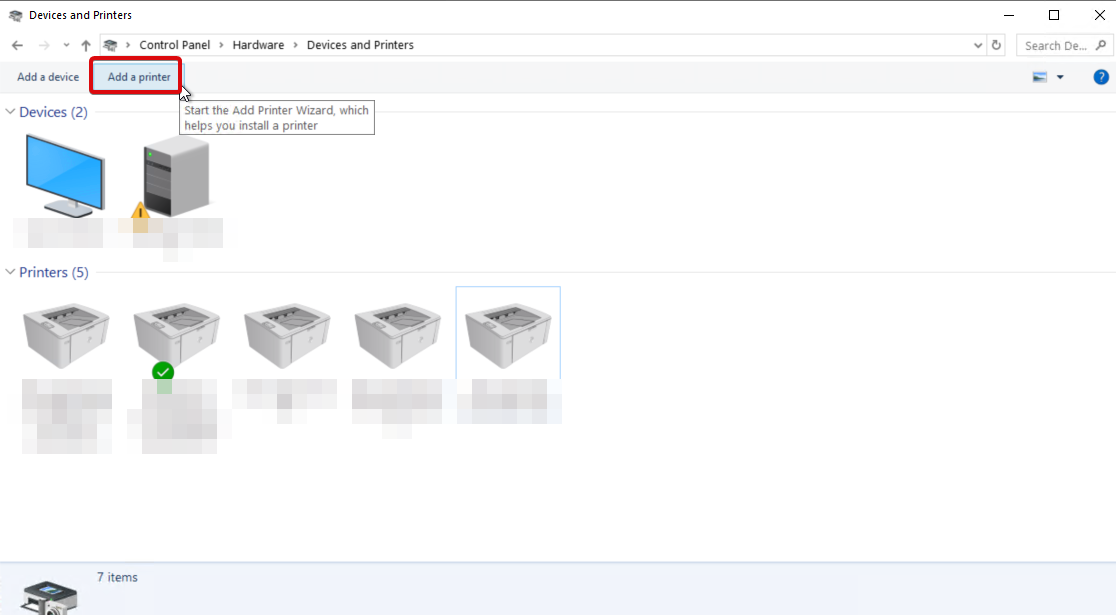

  3. Close the form dialog, then click Add a device at the top left of the control panel. Add a duplicate printer profile for the desired printer.

    half-page-2

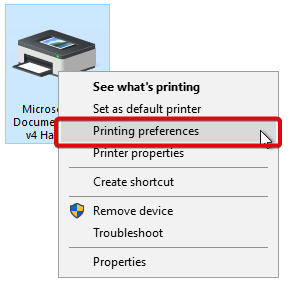

  4. Right click on the printer, and go to printer preferences, click on the profile we had created.

    half-page-3

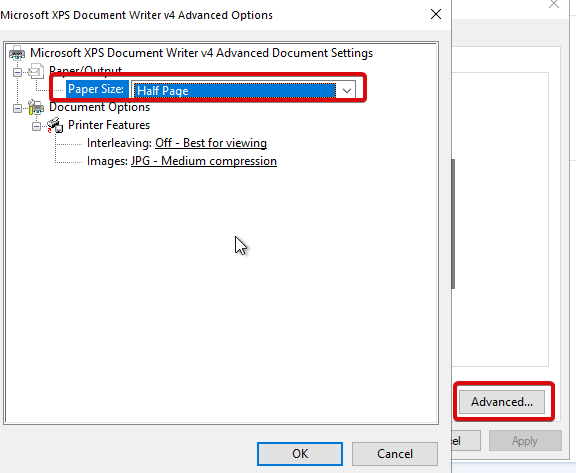

  5. Go to "Advanced", configure the printer profile to use the paper size we created before.

    half-page-4

  6. Next, right click on the printer again, go to printer properties.

    half-page-5

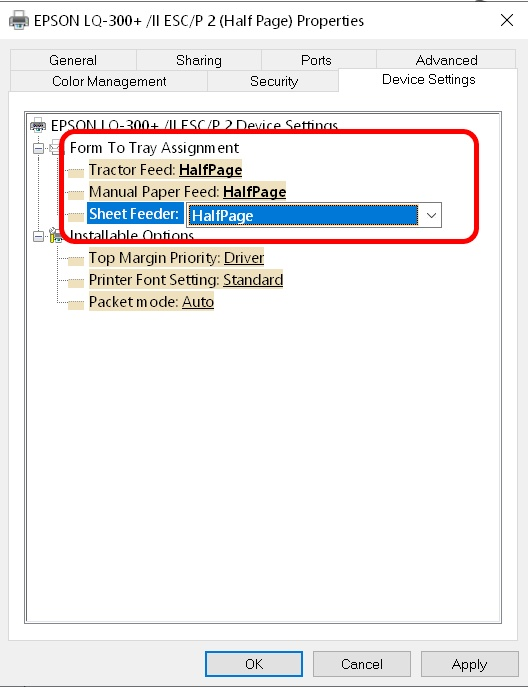

  7. Set the default paper size to the custom paper size we created.

    half-page-6

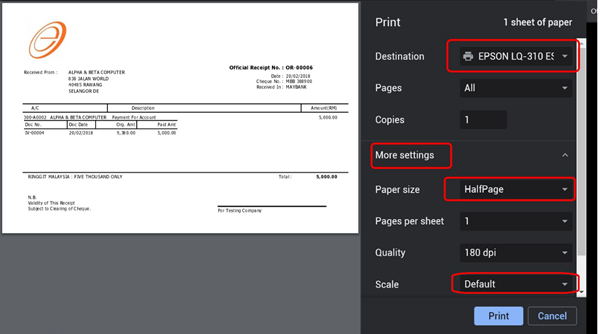

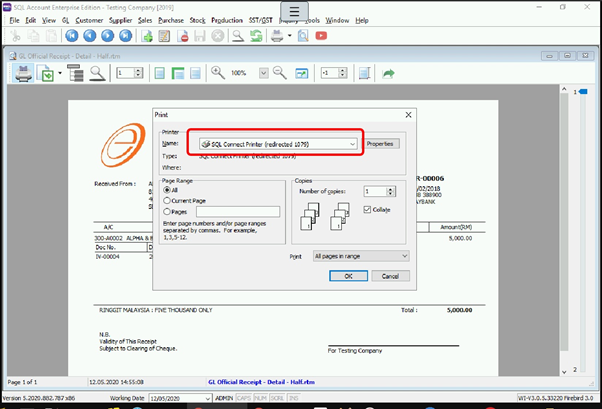

  8. Once you have done with the above settings, login into your SQL Connect session and test print with the following steps:

    half-page-7 half-page-8

Windows 11​

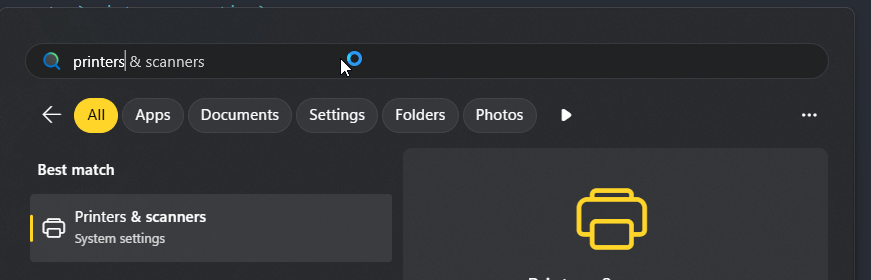

  1. Search "Printers" in Windows search bar

    half-page-win11-1

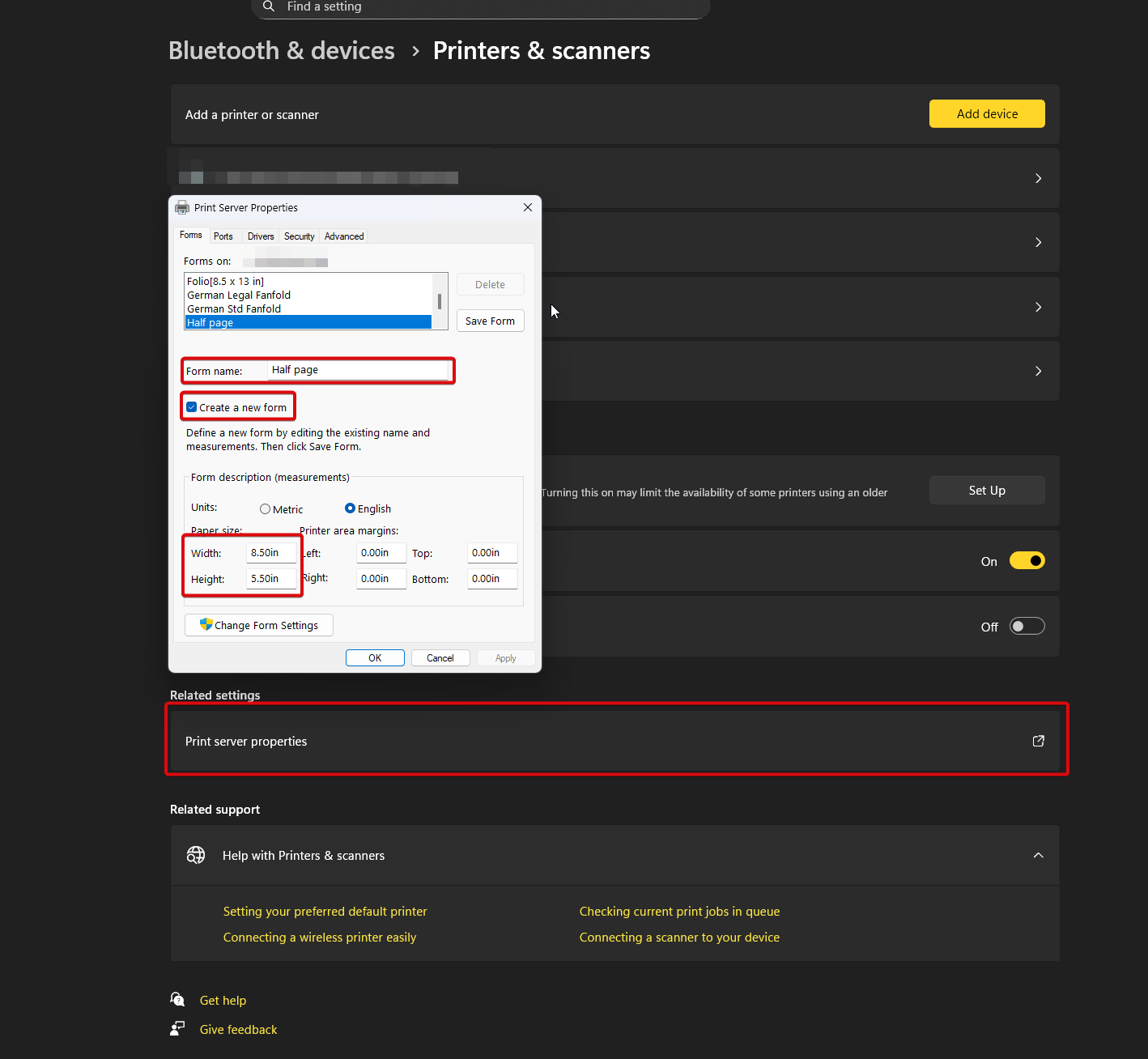

  2. Select on Print server properties, add a new page size (half page)

    half-page-win11-2

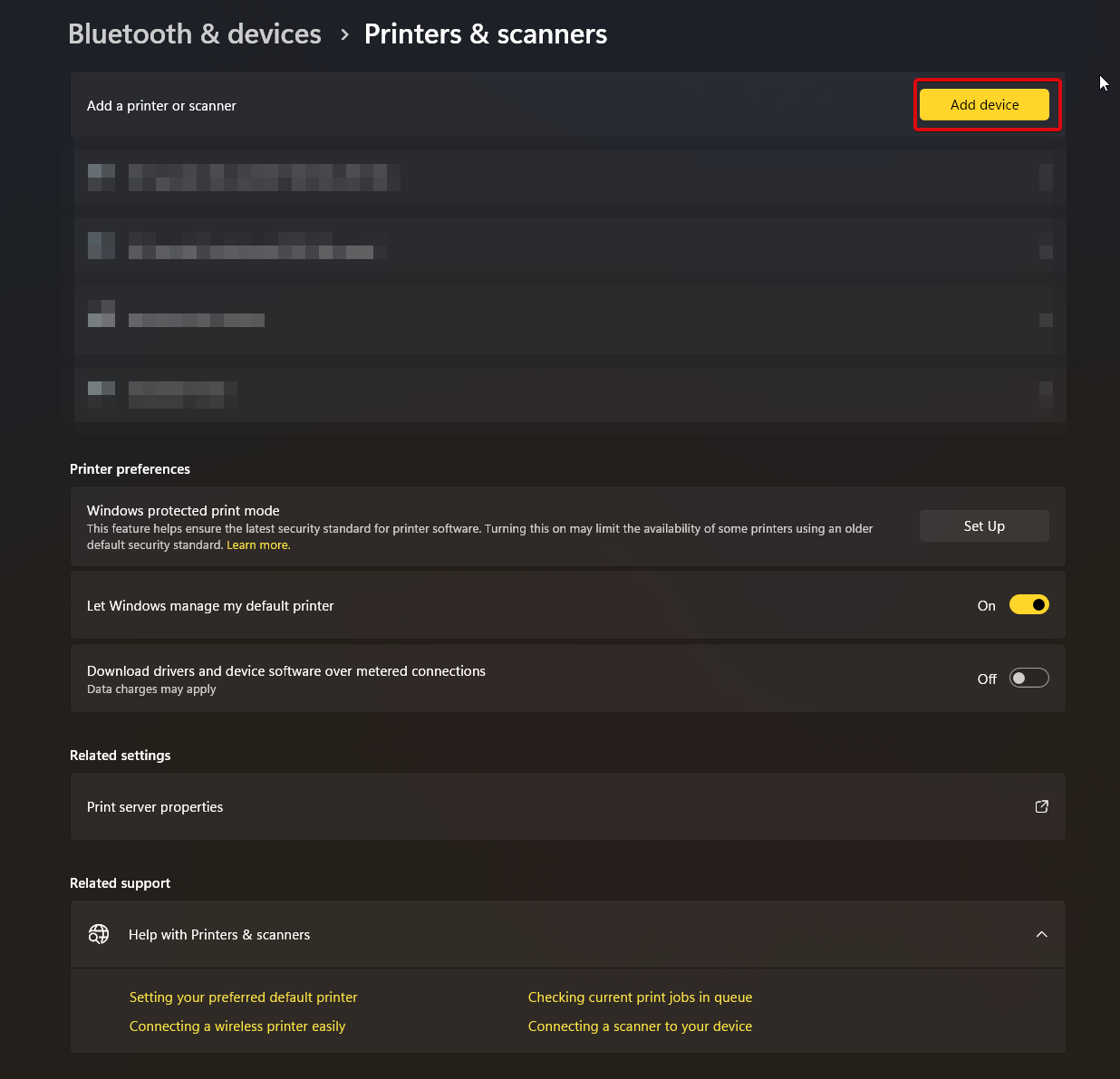

  3. click Add a device to add a duplicate printer profile for the desired printer

    half-page-win11-3

  4. Click on the desired printer, go to printer preferences, select the profile create in previous step

    half-page-win11-4

  5. Go to "Advanced", configure the printer profile to use the paper size we created before.

  6. Next, go to printer properties.

  7. Set the default paper size to the custom paper size we created.

  8. That's all. 🥳

Saving PDF​

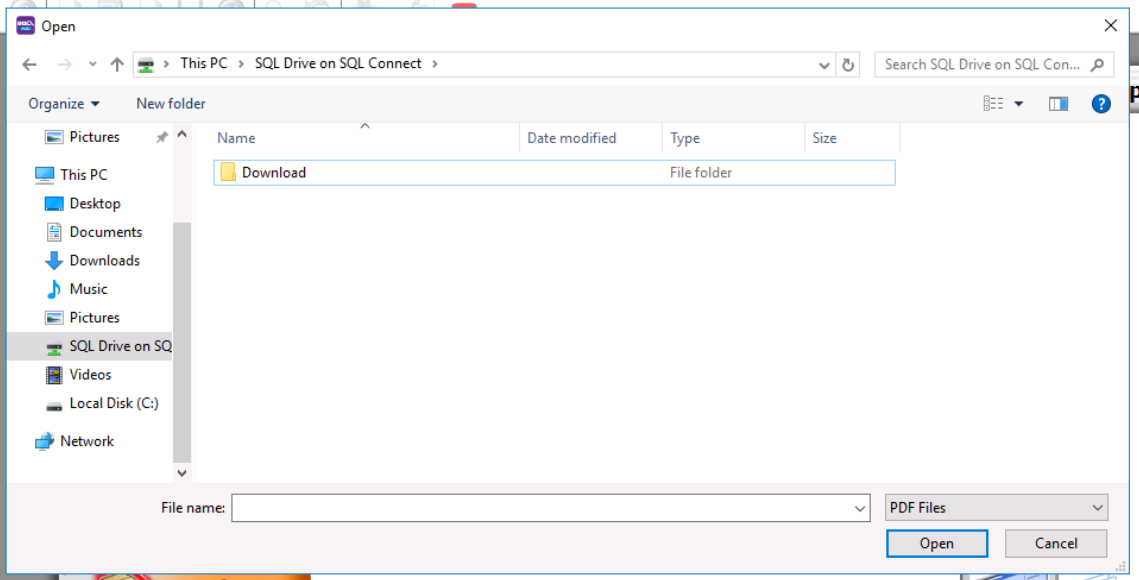

If you want to download PDF file, save it to the "Download" folder in the "SQL Drive on SQL Connect"

save-pdf-1

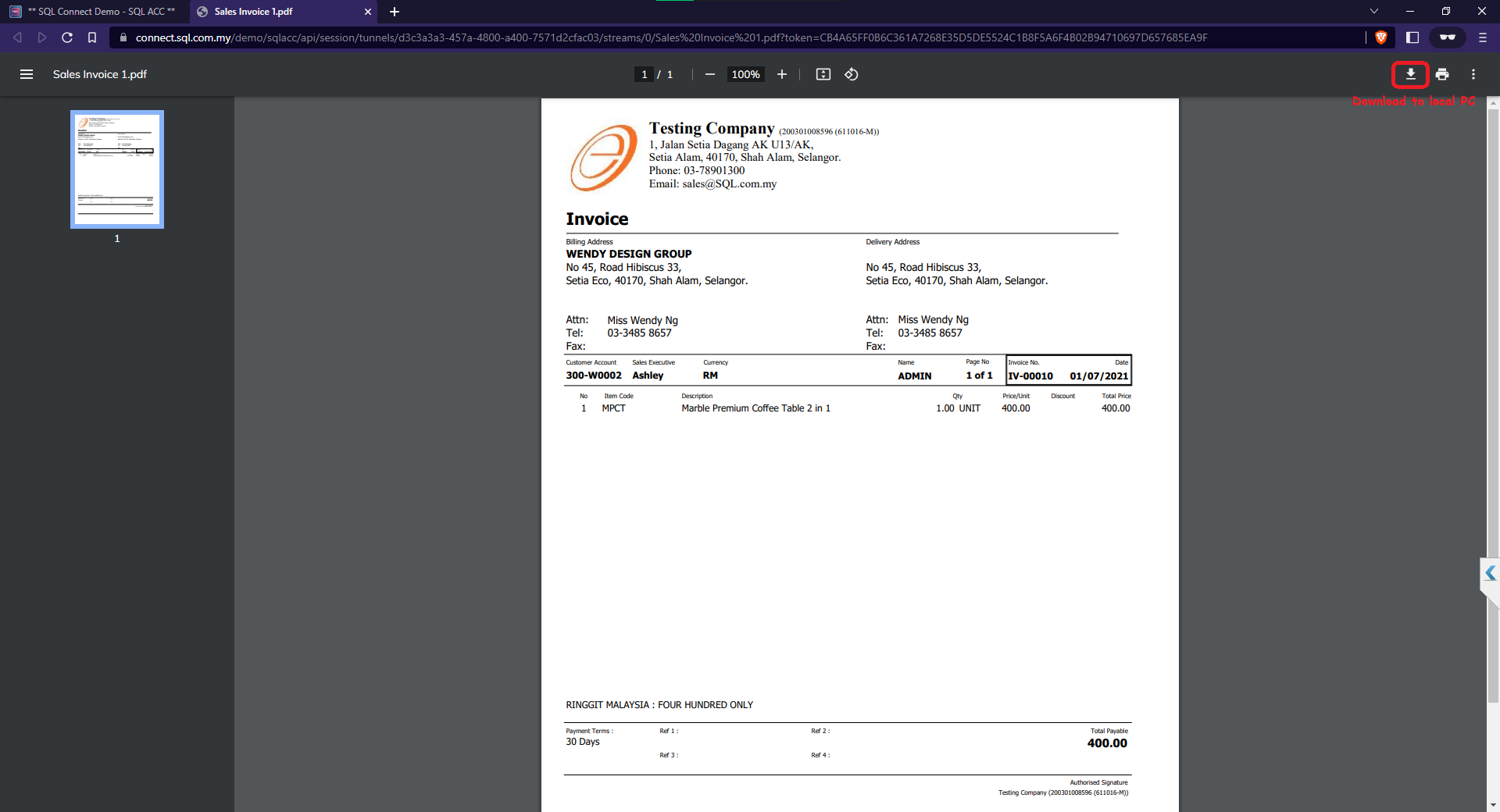

The PDF file will be opened in a new tab, click download and save the file to local PC.

save-pdf-2

Signout (Private Cloud only)​

info

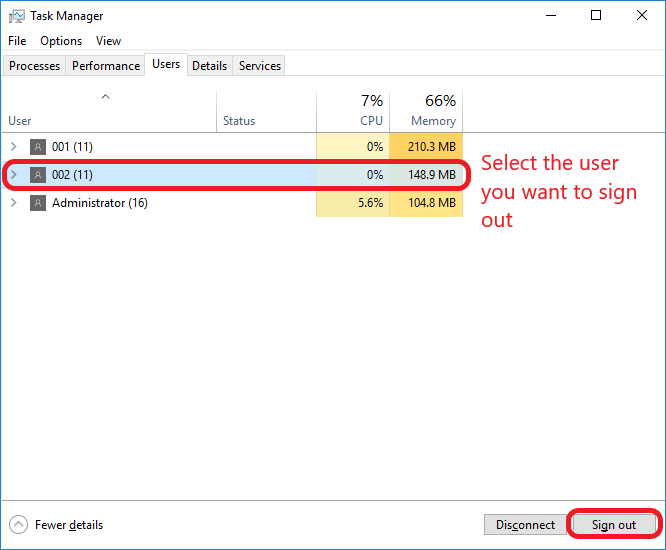

The is exclusive for private cloud users only. In private cloud, the user has control over the server. Thus, the administrator has the right to signout connections.

signout-conn

SQL Connect Printing​

In SQL Connect, we have two groups of users (Public cloud users & private cloud users). As a private cloud users, you gain an extra option which able to print directly to your local printer as long as the printer is accessible from your server. While for public, you can select any option listed below:

PDF Print​

info

This feature is available in specific versions:

  • SQL Account version 5.2024.976.842 and above
  • SQL Payroll version 1.2024.254.204 and above

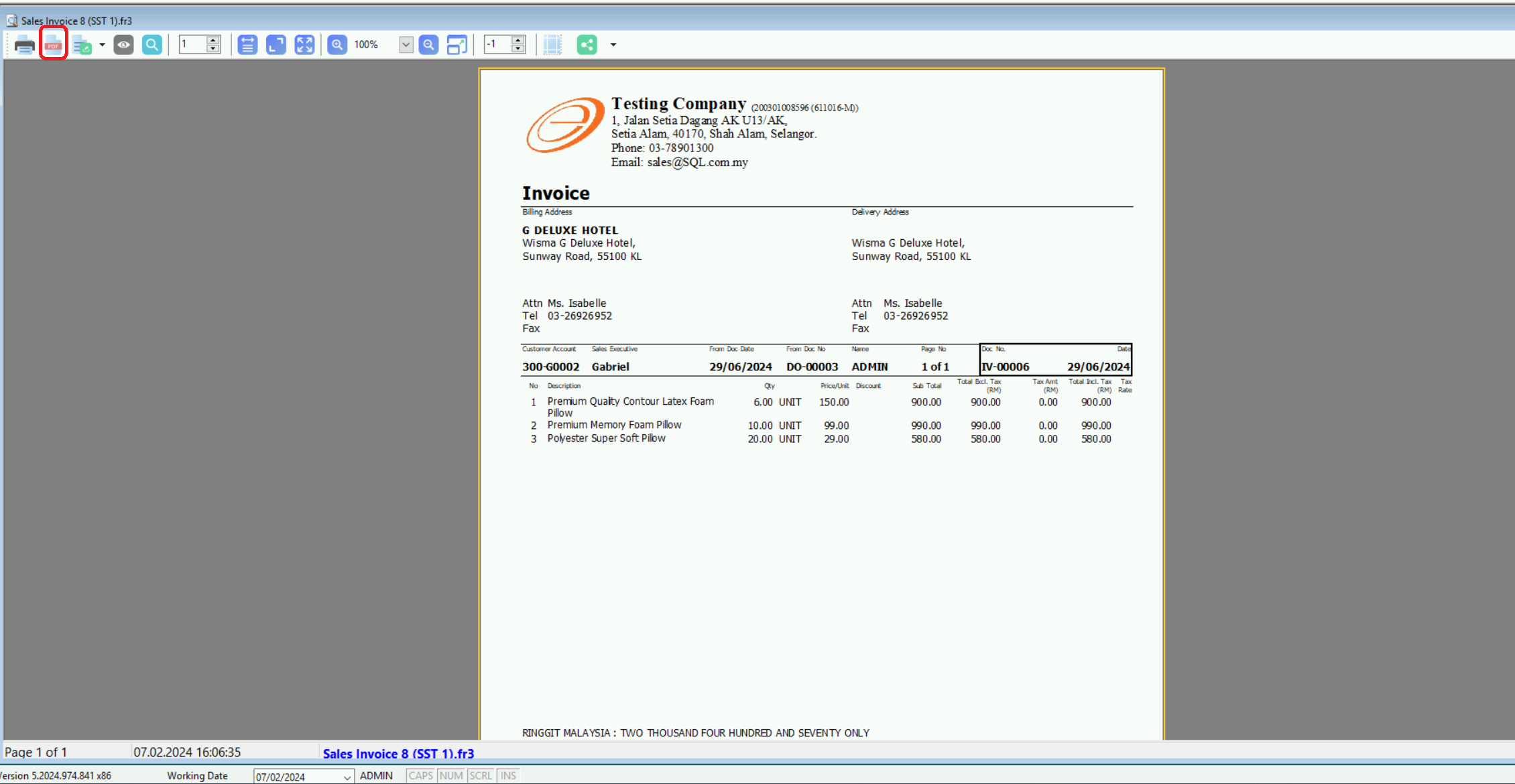

In SQL Account, go to the report preview, click on the PDF button located at the top left.

pdf-print-1

The pdf will be open in your new tab, you can then select your local printer and print.

SQL Connect Printer​

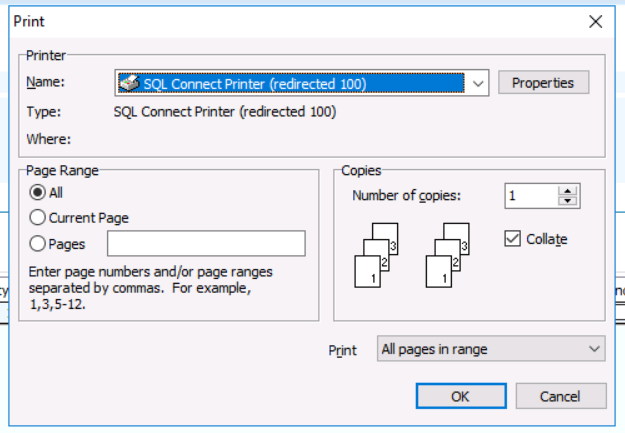

sql-connect-printer-1

By using "SQL Connect Printer", you will then able to access the browser print dialog which has the right to utilize your local printer. From there, you can select the printer you want, size you like and so on. After select all the options you wish, click print. Below is an example of chrome print dialog:

sql-connect-printer-2

SQL Drive method​

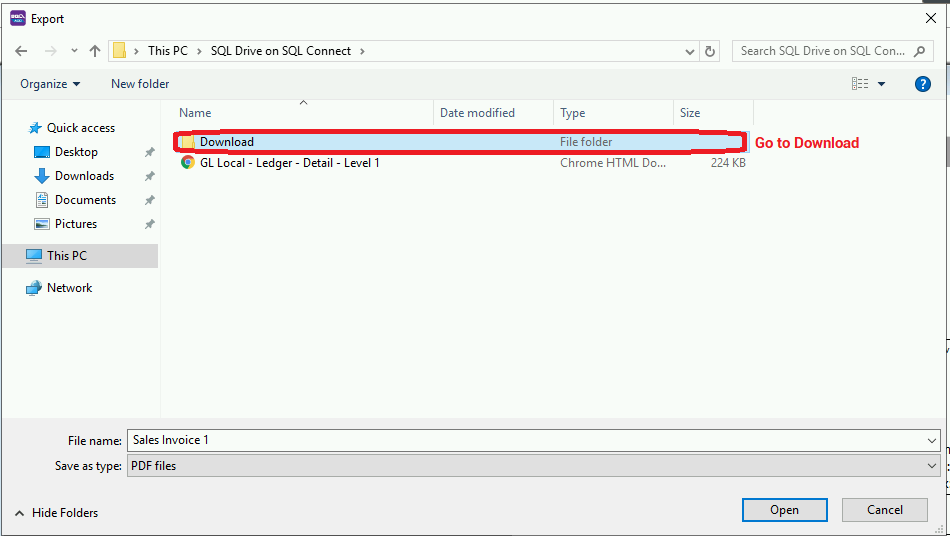

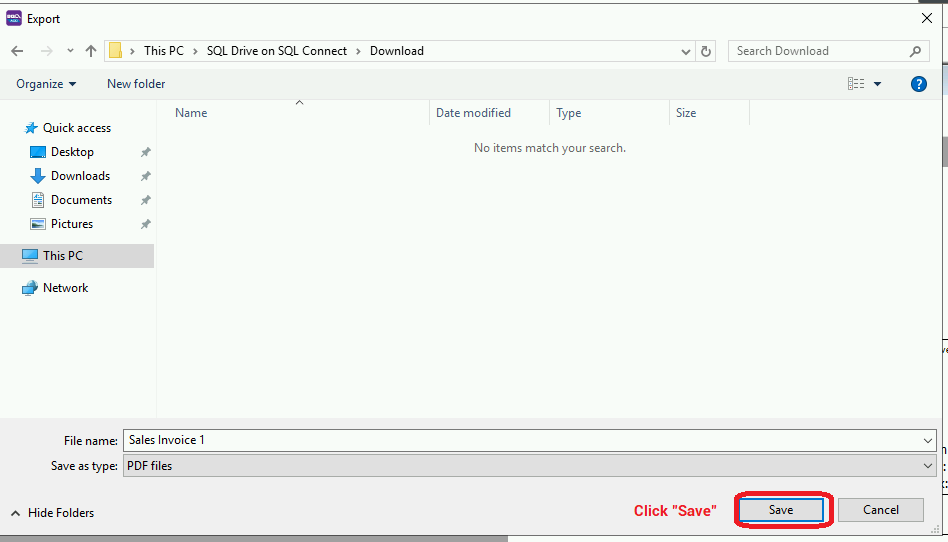

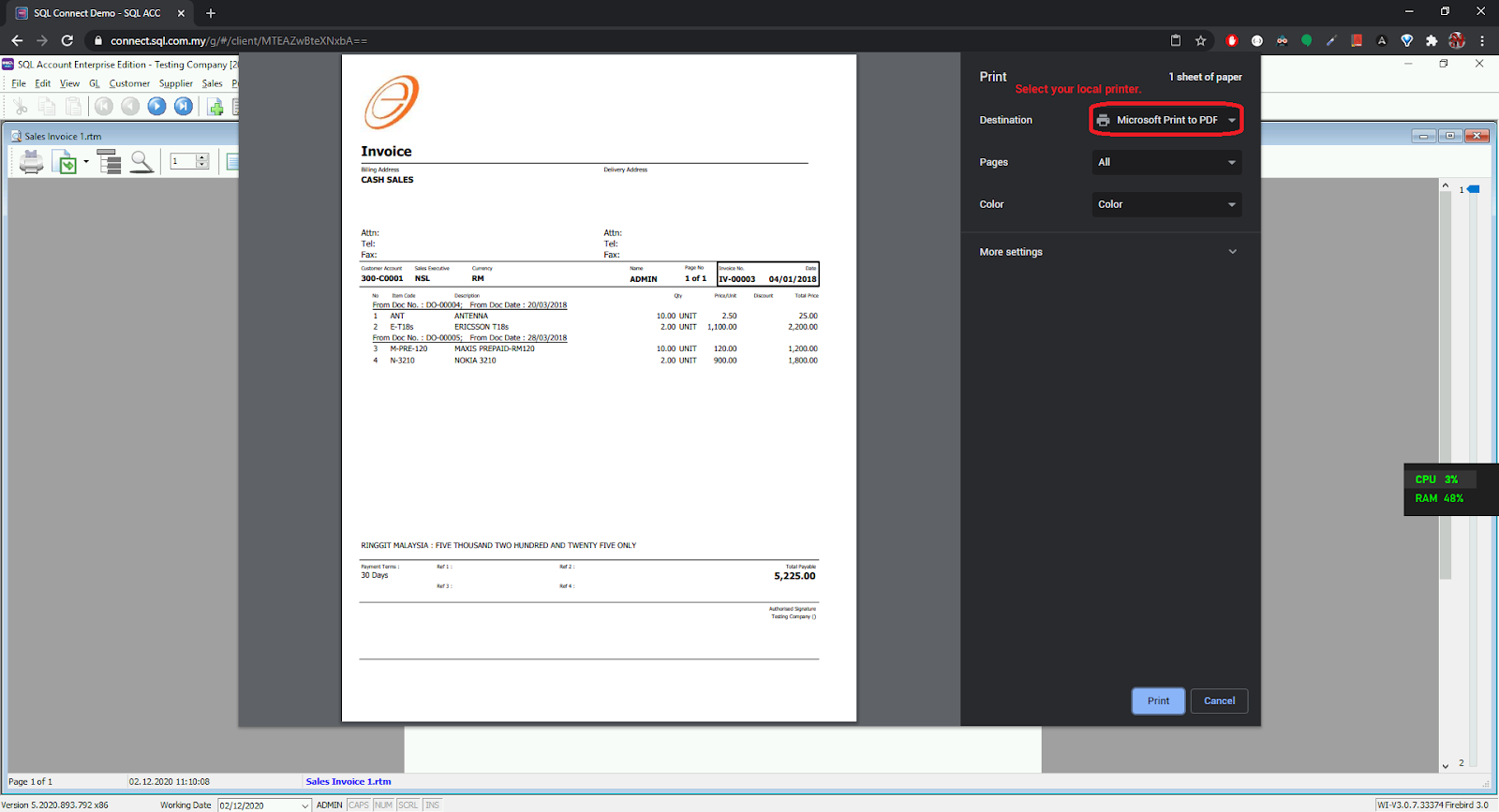

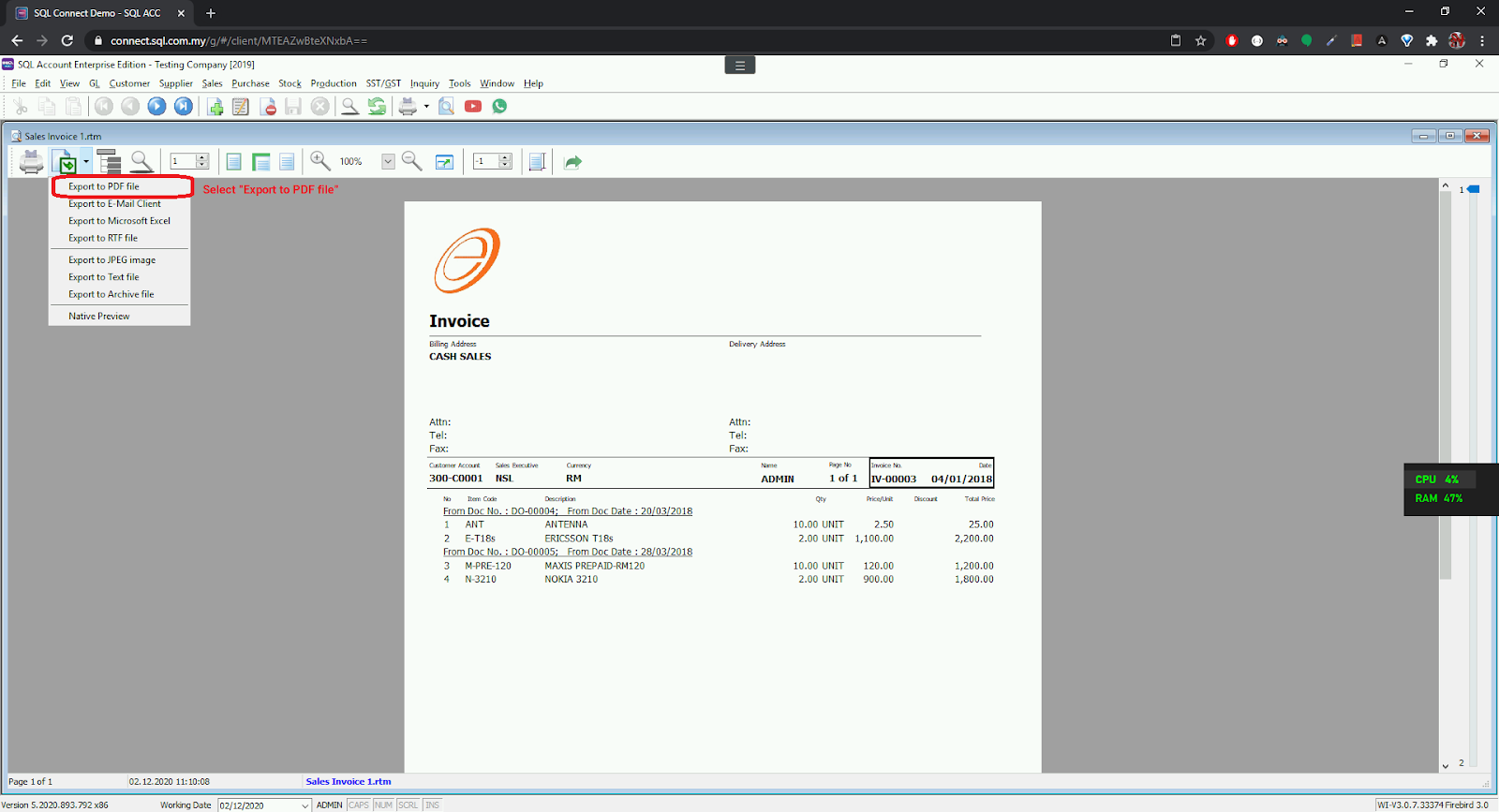

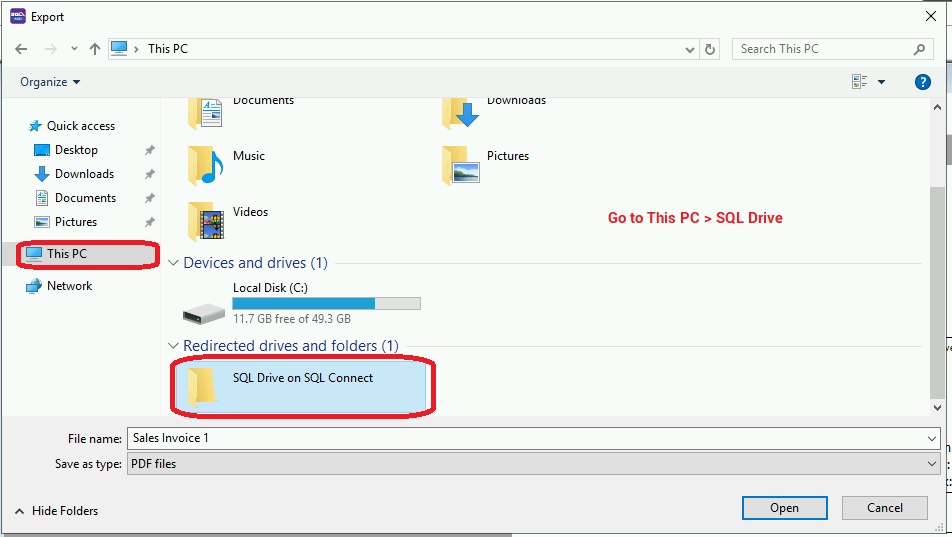

This method should produce identical result compared with PDF Print. In SQL applications, export the report as PDF and save it to "SQL Drive on SQL Connect" > Download directory

sql-drive-method-1 sql-drive-method-2 sql-drive-method-3 sql-drive-method-4 sql-drive-method-5

SQL Connect Subscription Checker​

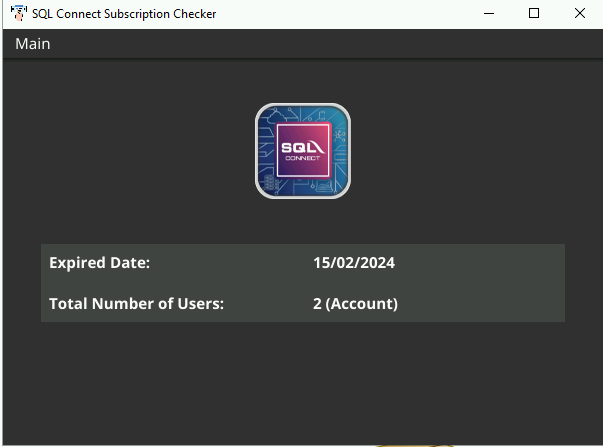

To check your subscription, you can open the app by following the steps below:

  1. Go to File > Run
  2. Select SQL Connect Subscription Checker

sqlconnect-checksub-1

If the app is not there, you can add it manually by following the steps in SQL Utilities

SQL Utilities​

By default, SQL Connect has already generate the list when you connect to a session. But if it didn't show up, you can add them manually by following the steps below:

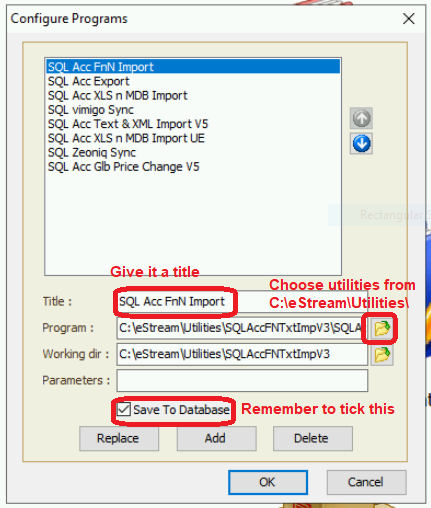

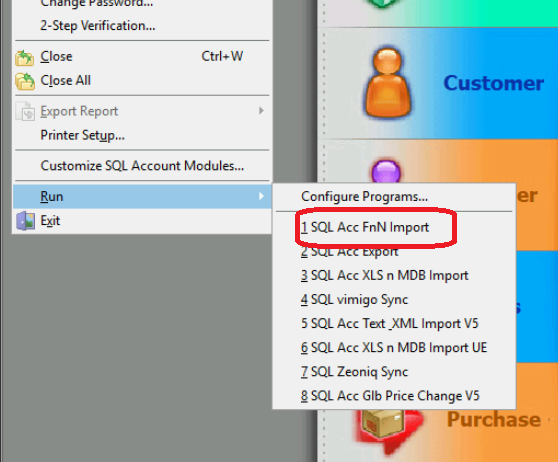

  1. Go to File > Run > Configure Program...
  2. Add the utilities software from here: C:\eStream\Utilities
  3. After add successfully, the program should be available at File > Run > ...
  • Summary:

sql-utilities-1 sql-utilities-2 sql-utilities-3 sql-utilities-4
