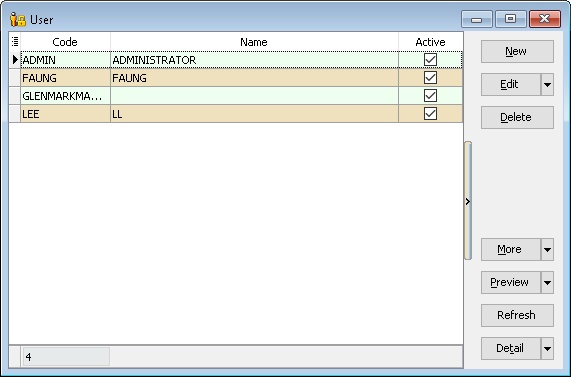

Maintain User

Create New User

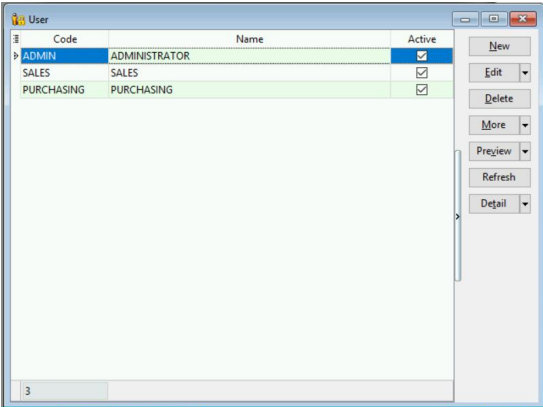

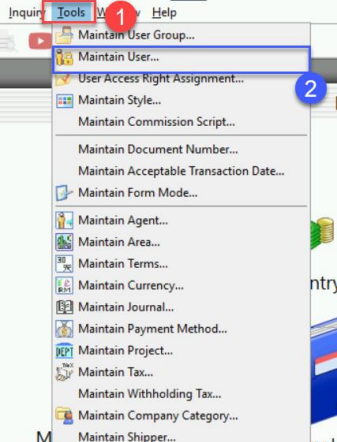

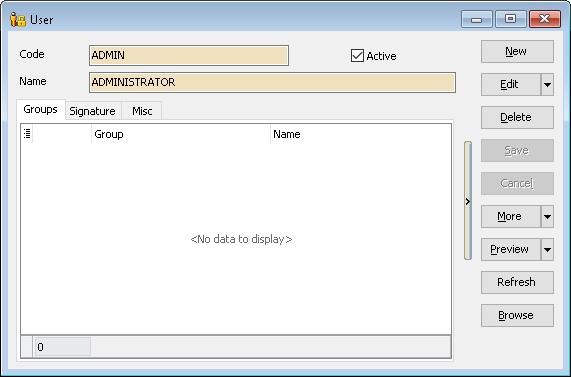

1. Select Tools > Maintain User > New.

2. Enter the Code and Name (both can be the same, e.g., Code = ALI, Name = ALI).

3. Click on More and select Change Password.



4. Click Save. Your new user account is now created.

info

SQL User license is on a concurrent basis (i.e., how many users can login to the system at the same time). This means that if you have 5 staff in the office who can access SQL but you only have 3 licenses for 3 concurrent users, you can still maintain all 5 users in the system, but only 3 users can login and access it at the same time.

User Access Right

Video Guide

Watch the tutorial video here: Youtube

Not every user will have the same access rights as ADMIN, and the ADMIN user might want to set security control settings in the system.

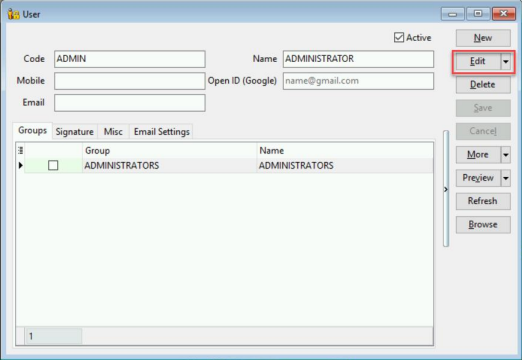

1. Select Tools > Maintain User > Edit for the user you want to set the access rights for.

2. Click on More and select Access Right.

3. Check the transactions/functions (row), compare with the user (column), and tick = Allowed or untick = Disallowed the action for a particular user for specific transactions. For example, based on the settings in the following images, the user is not allowed to delete Customers or to view Customer Payments.



Bar Navigator

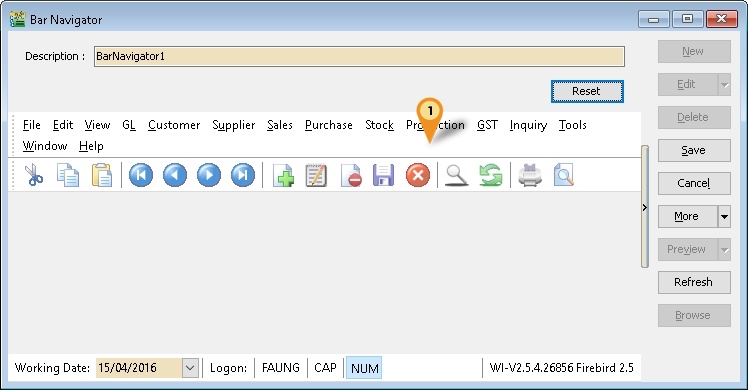

Tools > Maintain User > More > Bar Navigator:

Use this function to customize the buttons in the Main Application by user.

Field Name	Properties
Description	Definition: Navigator Full Description; Field Type: Alphanumerical; Length: 160
Reset Button	To restore to Default Layout

1. Right-click here:

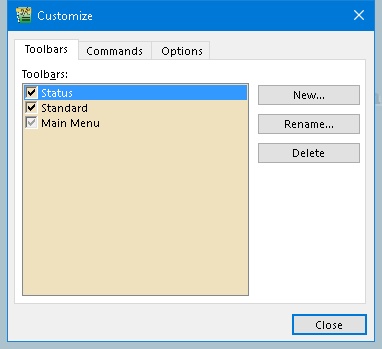

2. Select Customize....



   Field Name	Properties
   Toolbars	Show list of available Toolbars
   New... button	Create New Toolbar
   **Rename...**button	Rename the highlighted Toolbar
   Delete	Delete highlighted Toolbar

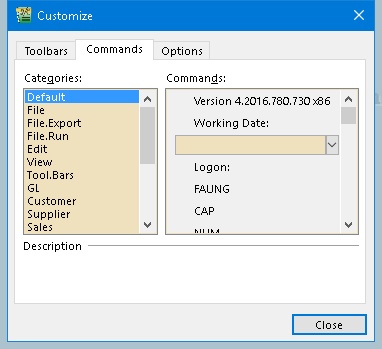

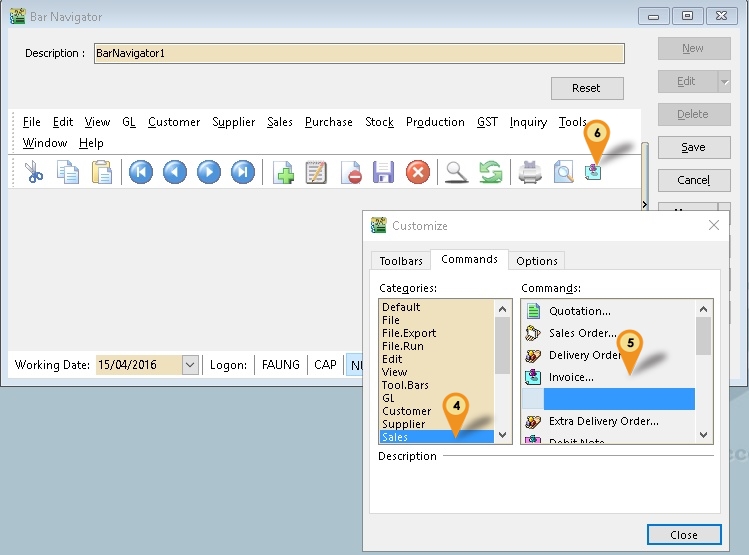

3. Select the Commands tab.



   Field Name	Properties
   Categories	List of Available Buttons Category
   Commands	List of Available Buttons on the Selected Category



4. Select Categories (e.g., Sales).

5. Select Commands (e.g., Invoice...).

6. Drag from Step 5 to here.

7. Click Close.

8. Click Save.

9. Click Browse.

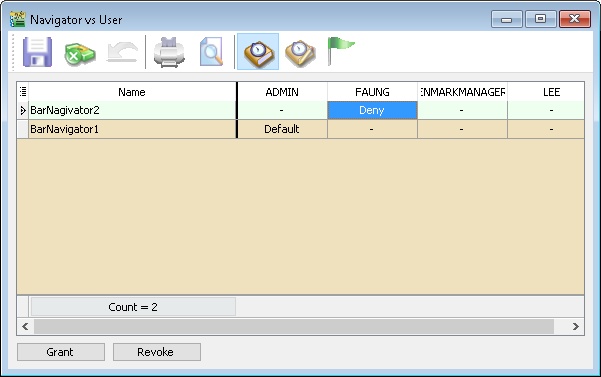

10. Click More > Navigator vs User.



    Options	Properties
    –	No setting is set
    Default	Set the setting
    Deny	Not allowed to use (Not used in this function)

11. Set the User to use the Toolbar.

12. Click Save (Blue Disc Icon button).

Maintain Document Number

Use this function to maintain document number formats and next numbers.

info

Watch the tutorial video here: Youtube

1. Tools > Maintain Document Number.

2. Insert a Description for the particular set of documents and select a Document Type (e.g., Payment Voucher).

3. The system’s default is the Format %.5d, where % is the formula that enables the function to auto-run for the document number, while 5d stands for 5 digits.



4. You can select the Frequency option as Never Reset or others.

5. Set the Next Number for this document.



Maintain Acceptable Transaction Date

info

SQL does not need to perform a year-end; it will cut off automatically. Once the account is closed, if you wish to block the period to avoid users changing the account figures, you may apply this setting.

Maintain Acceptable Transaction Date enables you to control which documents you are allowed to maintain (New, Edit) based on their dates.

• Any document whose date falls within the allowed transaction dates can be edited.

• Any document whose date falls outside the allowed transaction dates cannot be edited/created.

New Acceptable Transaction Date

1. Tools > Maintain Acceptable Transaction Date.



2. Click on Append (Icon with + symbol).



3. Choose the period for which you want to allow transactions.

4. Click Save.



5. Result:

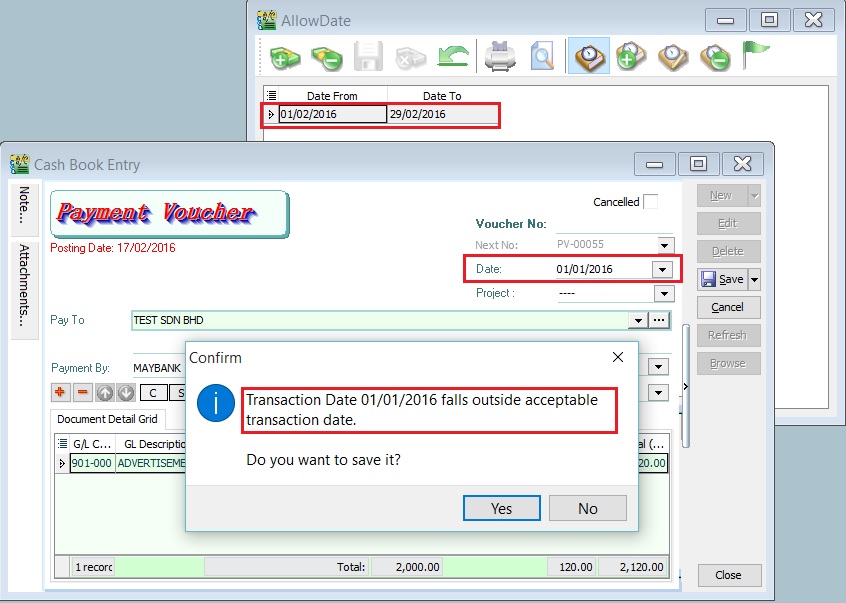

   The system will show a message if users try to save a document that is not in the acceptable transaction period.



   If the user clicks Yes, a dialogue box will request override permission by ID/PW with rights to override it.

   info

   The default setting grants users override permission. Refer to the following section for instructions on revoking this privilege from a specific user.

Override Acceptable Transaction Date

To override (i.e., save a document that falls outside the acceptable transaction dates), you will need to be logged in as a user with the right to override acceptable transaction dates.

1. Tools > Maintain User. Double-click on the user you want to Edit.



2. Click on More > Access Control.



3. Under Group Tools, tick or untick the option Override Acceptable Transaction Date to allow or deny the user from having the overriding right to save a document outside of the acceptable transaction period.

4. Save the access rights.



5. Result:

   If the user is not permitted to override, the system will prompt the following dialog, and you can choose either:

   • OK = cancel saving
   • Override = Enter the ID and password of a user who can override, then save the transaction.

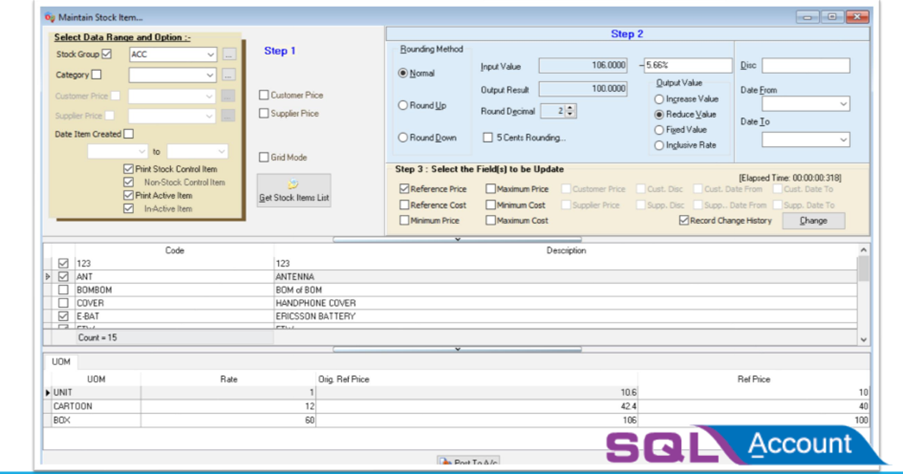

SQL Global Price Change

SQL Global Price Change helps you mark down prices for all items with a few clicks.

info

This is a paid module. Contact your SQL Service provider to get this standalone application.

Setup

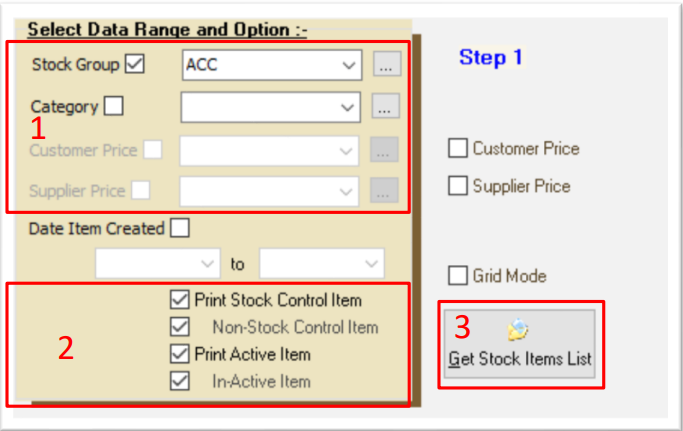

1. Select your group of items:

   1. You can select a certain Stock Group or Category. If you want all items, leave Stock Group and Category blank.
   2. You can also choose only Active items.
   3. Once your group of items is selected, click on Get Stock Items List.

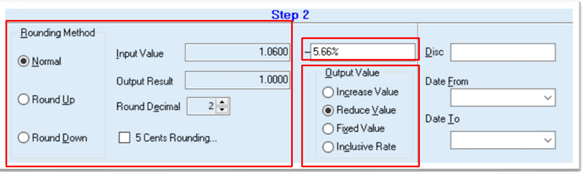

2. Setting the value to be adjusted:

note

Scenario: You are trying to reduce prices due to the removal of GST (6% > 0%).

• Rounding Method (Assuming Round Decimal is 2):

  1. Normal: Example: 0.1234 => 0.12
  2. Round Up: Example: 0.1234 => 0.13
  3. Round Down: Example: 0.1274 => 0.12

• Input Value = Sample Value

• Output Result = Sample Result

• Round decimal = Number of Decimal Points

It may look like a 6% reduction, but it is actually 5.66%.

Example:

Item price = RM 100

With 6% GST = RM 100 * 1.06 = RM 100 + 6% = RM 106 Removal of 6% GST = RM 106 / 1.06 = RM 106 - 5.66% = RM 100

• Mark down = 5.66%

• Why 5.66% instead of 6%?

• 30 May 2018 selling price = RM 106 GST Inclusive

• 01 June 2018 selling Price RM 106 – 5.66% = RM 100

• NOT RM 106 – 6% = RM 99.64

• sfds

• sdfds

• sdfsd

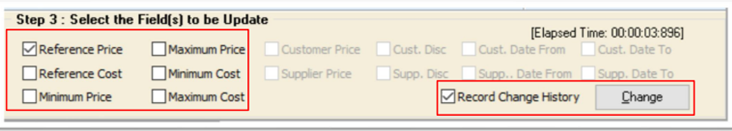

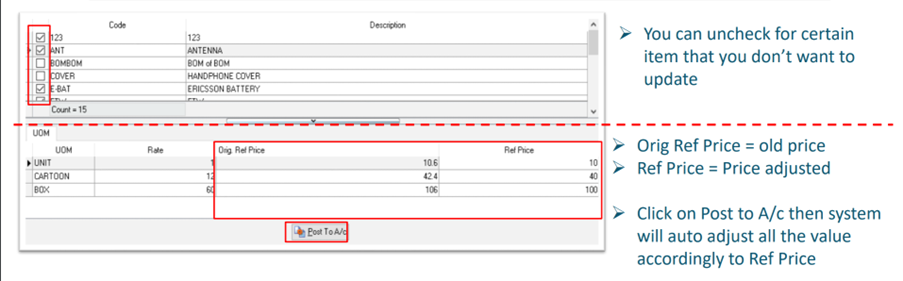

1. Select fields to be updated:



   • Tick the option you want to adjust/update, e.g., Reference Price.
   • You can also tick Record change history, and the system will update this change history in your notes.
   • Once you complete the settings, click on Change.

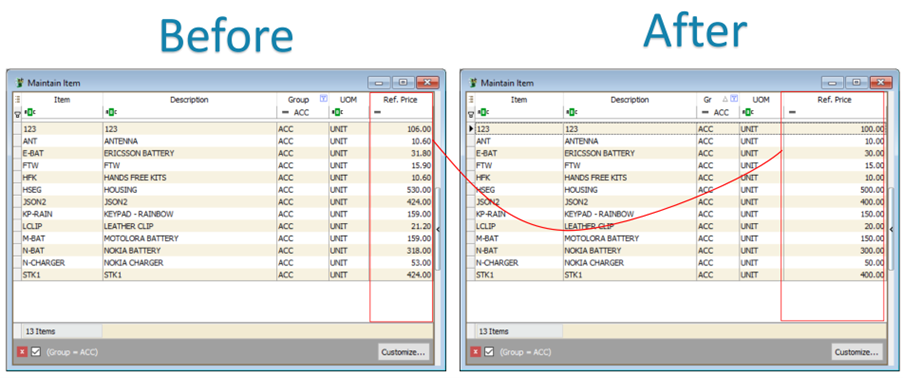

2. Check & Post

Maintain Form Mode

Form Mode helps filter data based on defined criteria. It is used to restrict users to viewing only specific sets of data for a certain document. For example, agent Lip Fong can view and access the sales invoices belonging to his agent code LF ONLY.

New Form Mode

info

Watch the tutorial video here: Youtube

1. Tools > Maintain Form Mode > New.

2. Enter Code and Select the document form you want to filter, e.g., Invoice.



3. Click on Customize Filter and then click the button to add a new condition.



4. Change SL_IV.DOCKEY to SL_IV.Agent because you need to filter based on the sales invoice agent field. Then change = equals to like, enter the Agent Code you want to filter, and click OK.



5. Ensure the info is updated correctly, then click Save.



6. Other optional settings:





7. If you have set more than 1 form mode, once you click Sales > Invoice, you will get a prompt to choose which Form Mode you want to apply.



Form Mode VS User

How do I apply the form mode to a specific user?

1. Tools > User Access Right Assignment…

2. Under the list of security, click on Form Mode.

3. Select the user, e.g., user code: LF (Lip Fong).

4. Tick to apply the Form Mode, e.g., tick Form Mode: IV-LF and click Save.

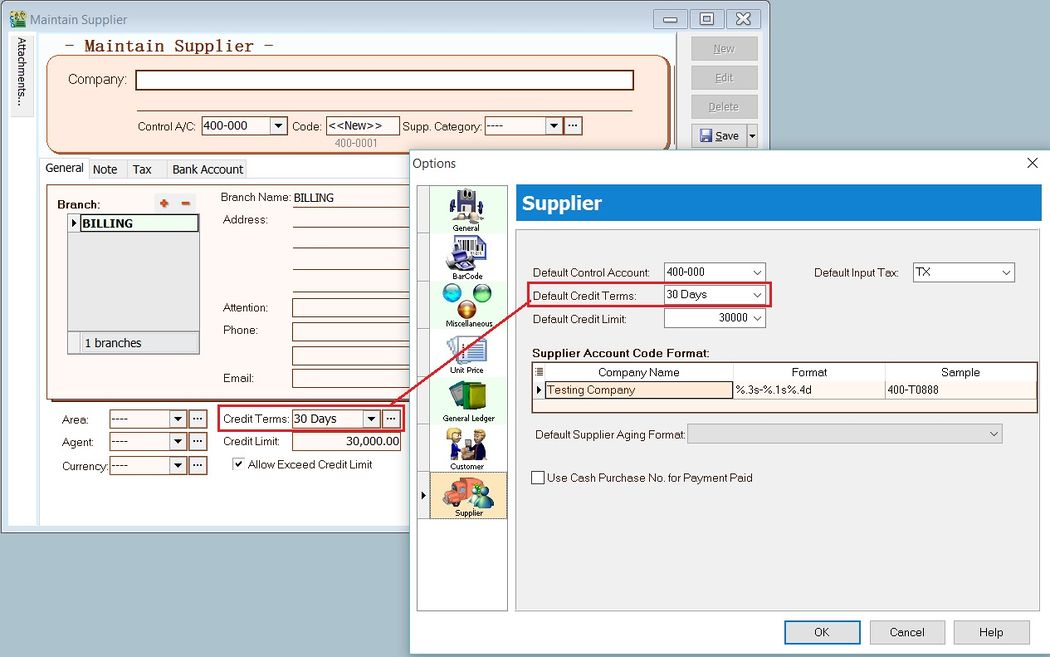

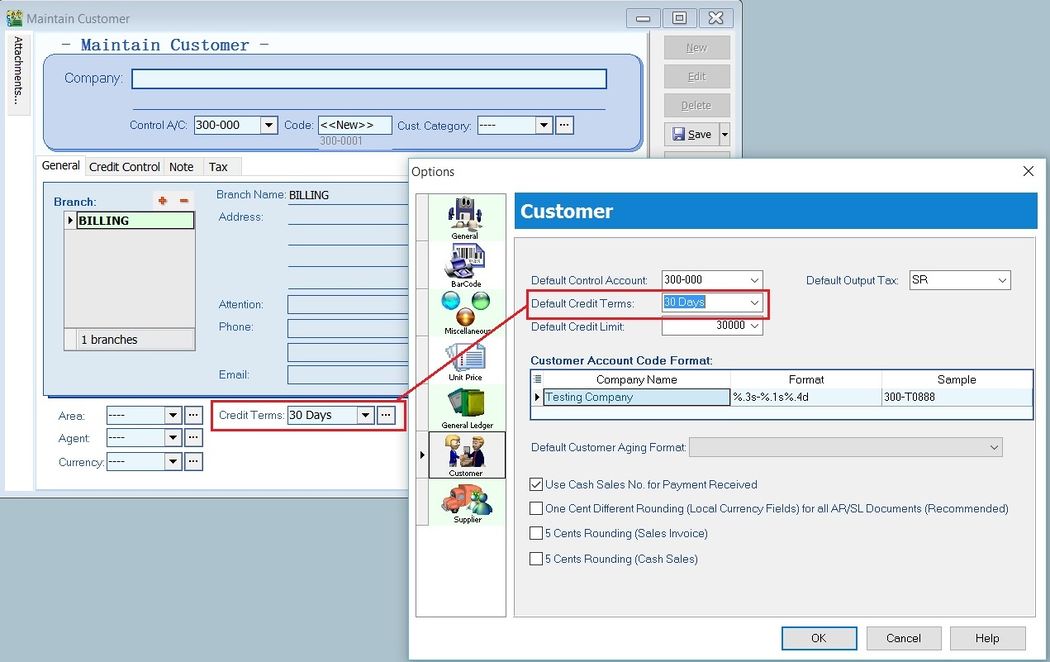

Maintain Terms

Maintain Terms enables users to maintain their Customer and Supplier terms. In SQL, there are 3 different types of terms you can assign.

1. Tools > Maintain Terms > New.

2. Insert Code, Description, and allocated Term Type.

   • Due in number of days – Specifies how many days until the document is due. For example, if you set 30 days, the document will be due on the 30th day from the document date.



   • Due on specific day of the month – Specifies the month and day the document is due. For example, if you set it as 1 Month 6 Days, the document will be due on the 6th of the next month.



   • Due in the month end – Specifies how many months until the document is due at the end of the final month. For example, if you set it as 2 months, the document will be due at the end of the 2nd month.

Maintain Currency

New Foreign Currency

info

Watch the tutorial video here: Youtube

You can bill overseas customers and suppliers in foreign currencies (e.g., USD, SGD, Euro, etc.). (Prof Package Inclusive)

1. Tools > Maintain Currency > New.



2. Maintain Customer / Supplier to assign the currency.



3. Sales document, select the customer, sample as below:

   1. Currency Rate will follow your settings from Tools > Maintain Currency, but it is still changeable in this invoice.

   2. Unit Price entered is based on the Customer’s currency (e.g., this customer is in USD).

   3. The system will automatically convert this into the default currency (RM) in the Local Net Total column at the bottom right.



Payment from Foreign Customer

Scenario 1

note

Customer Invoice billing in USD, but payment paid in your local RM bank.

1. Customer > Customer Payment > New.

2. Select your Customer.

3. Choose your RM Bank.

4. Enter your RM Amount.

5. Knock off the invoice, and the Rate will be updated automatically by the system. Foreign gain/loss will be automatically calculated and posted to the account accordingly. (You can call out the Rate and Gain Loss columns from the hidden fields).



Scenario 2

note

Customer Invoice billing in USD, Payment paid in your Foreign USD Bank.

(Advance Currency module required)

1. Go to Tools > Maintain Payment > Edit your USD Bank.

2. Currency: You can assign the currency for the particular payment method so that the payment method will be in foreign currency payment.

3. Bank Charge Acc: You can pre-set the bank charges account for the payment method accordingly.

4. OR & PV Number Set: Set the default running document number for the particular payment method (optional).

5. Bank Info: Enables you to set Giro info and make payments through Giro (refer to the Interbank Giro topic for more details).



   Select your payment received in your Foreign USD Bank, enter your paid Amount in USD, enter your USD Rate, and knock off the invoice. Foreign gain/loss will be automatically calculated by the system.



Scenario 3

note

Customer Invoice billing in USD, but payment in another currency (e.g., SGD / RMB / EURO).

1. Select your bank (e.g., you received payment in an SGD Bank), enter your SGD Amount and SGD Rate.

2. Knock off your USD Invoice.

3. The USD Rate will be automatically calculated, and foreign gain/loss will be automatically calculated and posted to the account accordingly.



Maintain Project (Required Project Module)

note

This is an extra module that must be purchased. You may contact customer support to purchase it.

This module enables users to maintain project accounting on a branch or departmental basis. Users can use this module for simple construction businesses to view Profit and Loss / Balance Sheet by Project.

1. Click on Tools > Maintain Project.



2. Insert the Project Code and Description. Project Value and Project Cost are not compulsory fields; if filled in, they serve as remarks.



3. Click on Tools > Options.

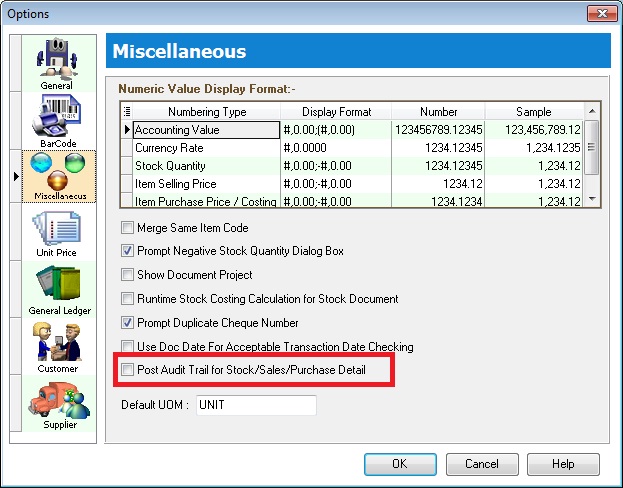

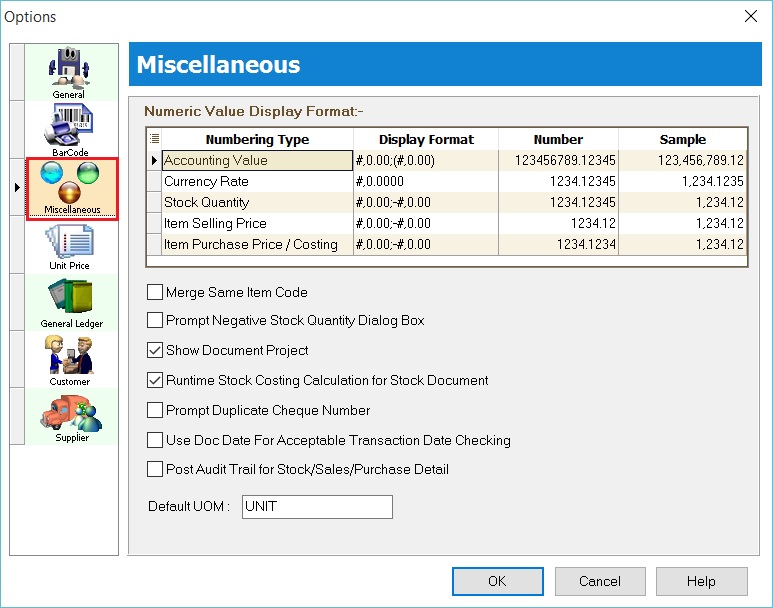

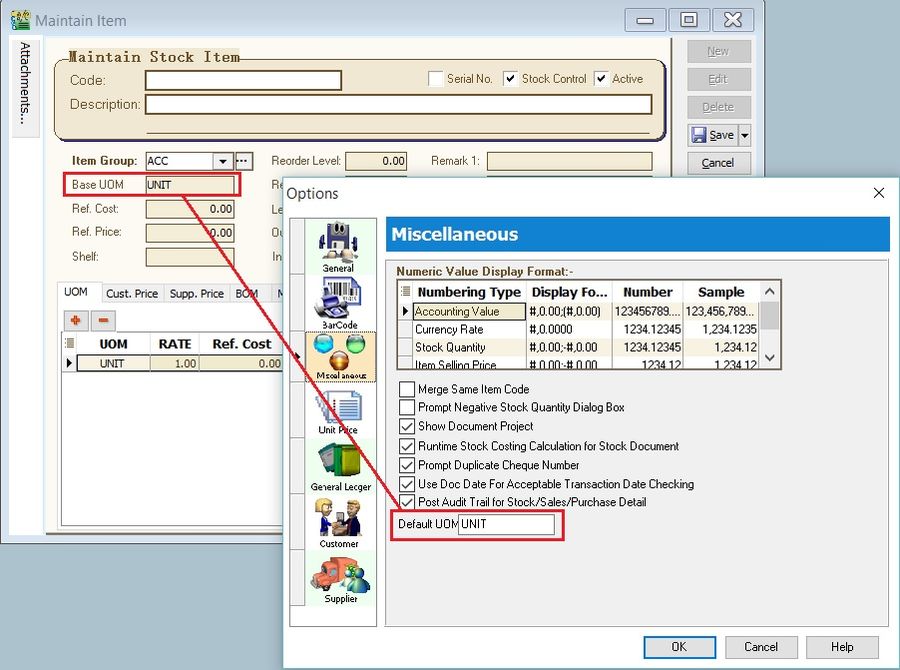

4. Look for Miscellaneous and ensure the option Show Document Project is ticked.



5. During Sales and Purchase transactions, ensure you can see the Project column, then update it accordingly.



   When keying in a transaction, some users may ask why there is a project at the item detail level and another beside the Customer. Is it a duplicate tab?

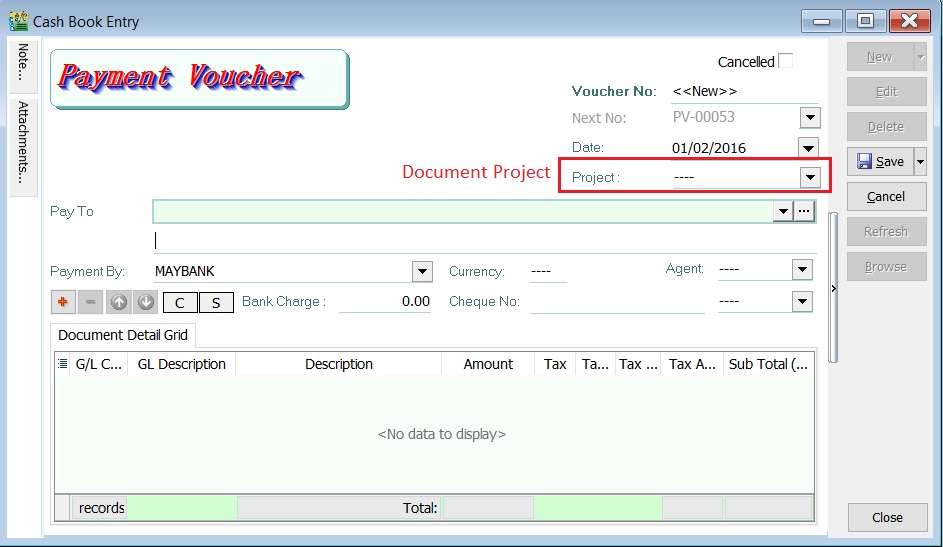

   What is the difference between More > Project (Document Project) and Item Detail > Project (Item Project)?







   The project feature is also available for GL > Cash Book Entry.

   After updating the document with a project, how do you view reports by project and compare them? For example: GL > Print Profit & Loss Statement.

6. Filter by the date you want to view for the P&L report. If you want to perform a project-to-project comparison, choose Comparison – Project (6 columns).



   note

   6 Columns = up to 6 projects

   10 Columns = up to 10 projects

   19 Columns = up to 19 projects.

7. Criteria:

   1. After selecting the report you need, ensure you tick Show Column Options. The top of the report will then show column options.

   2. You may change the period you want to view; by default, it will be Current Month.

      If you want to view the whole year's figures, change it to Current Year.



8. After changing the column options, tick Print Project Comparison. The Project tab will appear on the right-hand side. Select the project you want to view and click Add.



9. Click Apply to see the result. The P&L report will compare each project you selected.

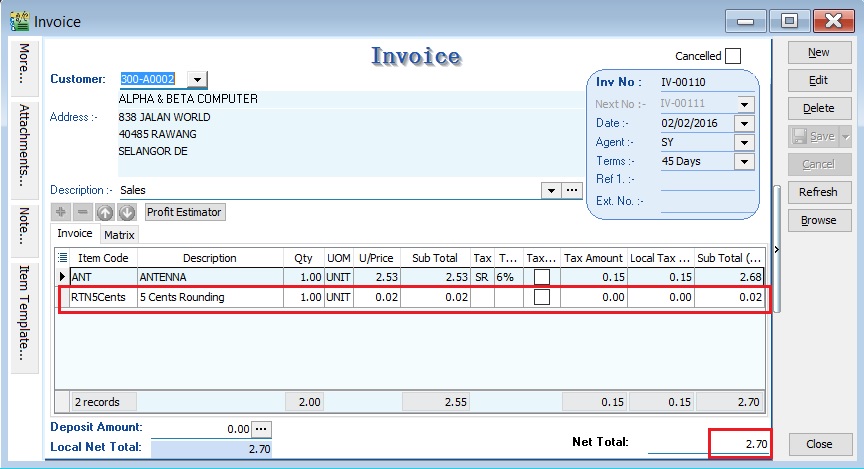

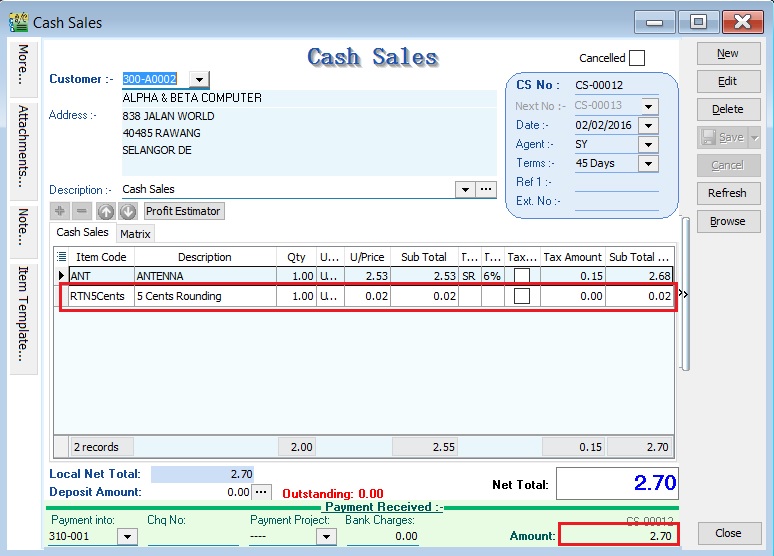

5 Cents Rounding

You can pre-set the system to automatically round your invoice or cash sales amounts to the nearest 5 cents.

info

Watch the tutorial video here: Youtube

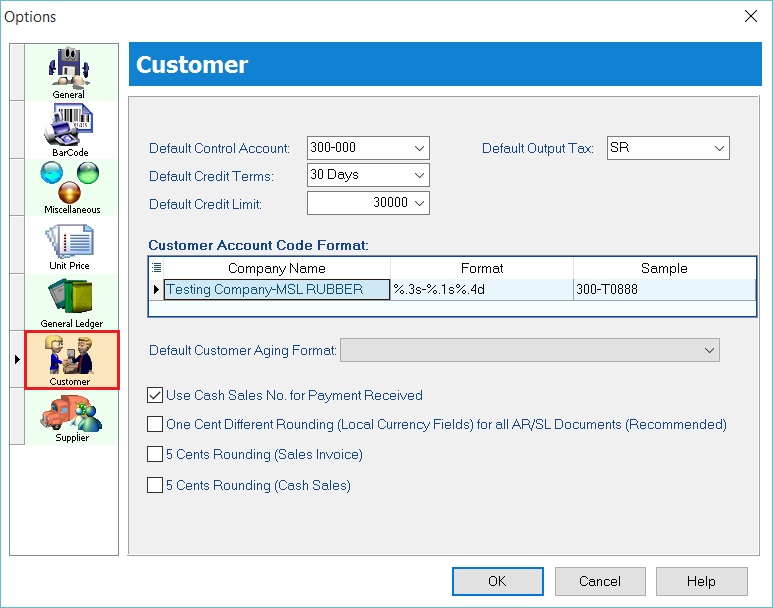

1. Tools > Options > Customer.

2. Tick 5 Cents Rounding for Sales Invoice / Cash Sales.





Online Mobile Approval

How it works?

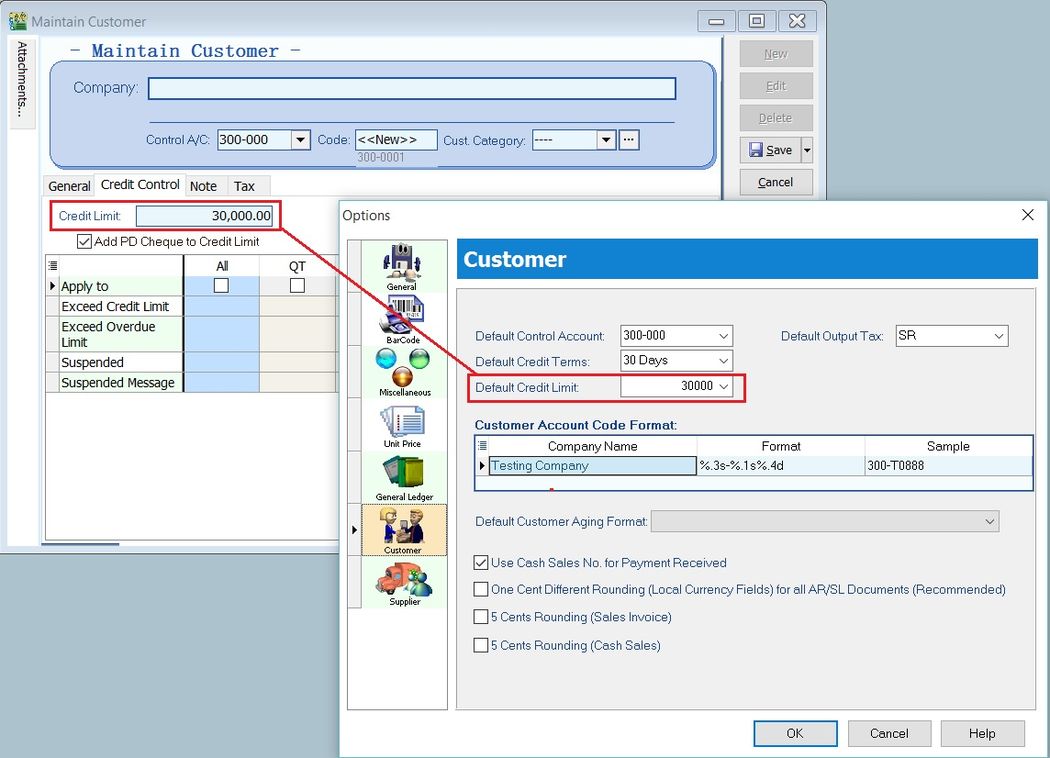

For example: If we set a Credit Limit over RM30,000, an override will be required.

1. A dialog box will be prompted after clicking Save Invoice: "Do you want to override?" > Click Yes.



2. Click on Online Approval.



   1. Tick the ID you choose to get approval from.

   2. You can choose to send via WhatsApp, Email, or WhatsApp & Email.



3. You will receive a message via WhatsApp or an Email sent by the system.

   • Scenario 1: Send By WhatsApp

     You will receive a message > Click the link.



   • Scenario 2: Send By Email

     You will receive an email > Click 'CLICK HERE FOR MORE ACTIONS'.

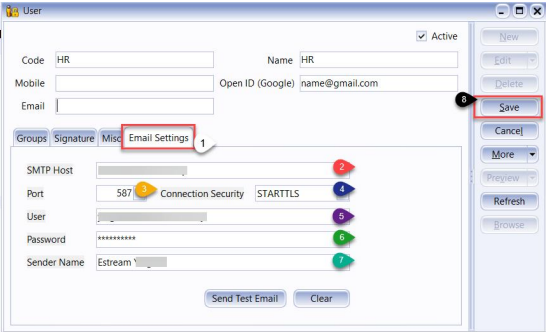

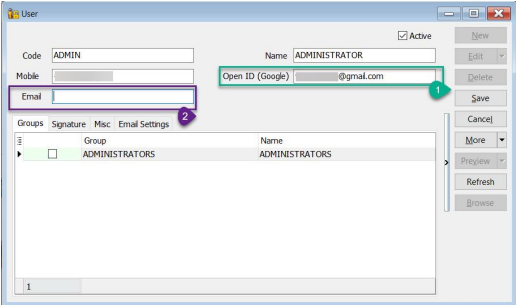

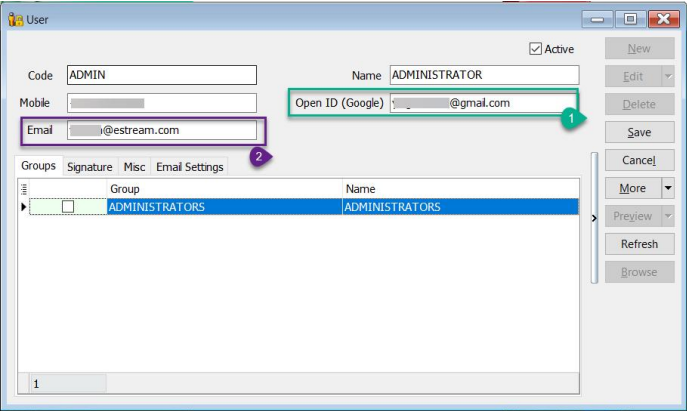

4. Login with the Gmail Address you set in Maintain User > Open ID (Google).

   note

   • This step is for those who send via WhatsApp and do not use Gmail to receive notifications.
   • Those who use a Gmail Address to receive notifications and approve can skip to Step 6.



5. Enter your Gmail Password.



6. After logging into Gmail, you will see this window:



7. You can click on Doc Detail and ScreenShot to see the details.

   1. Doc Detail: Shows the Customer Code and the reason why an override is needed.

   2. ScreenShot: Shows the transaction screen.

   3. Reply: You can leave a message and click Approve or Reject.



   note

   After clicking Approve or Reject, return to SQL Accounting. You will see one of the following scenarios:

   • Scenario 1: Approve Override

     a. Message: Approve Message

     b. A green tick will appear after approval.

     c. Click OK to save the transaction.



   • Scenario 2: Reject Override

     a. Message: Reject Message

     b. A cross will appear after rejection.

     c. The OK button is disabled after rejection; click Cancel.



     After clicking Cancel, the system will prompt this dialog box again:



When to use?

Online Approval can be used for the following actions:

Module	Action
Logon Screen	- No access right to change password
All Module	- All Document entry without Execute / Print / Preview / Export access rights
	- Unable to Save and Manage Grid Layout
	- Unable to Grid Export
	- Save Document Fall Outside Acceptable Trans Date
Customer Invoice	- Fast entry save Invoice

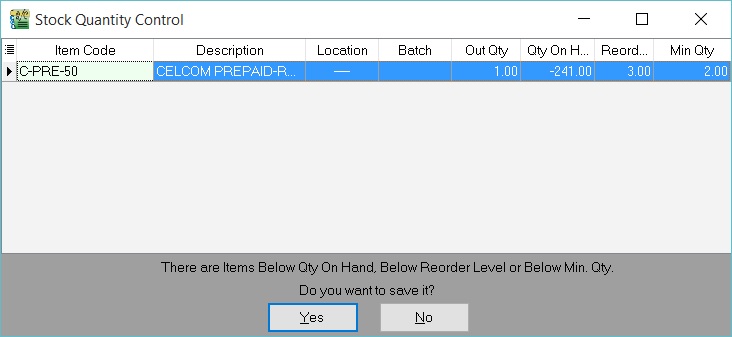

SL&PH	- Prompt Stock Qty Control Dialog
	- Prompt change unit price
	- Save price below cost (fmSLPriceControl)
	- Override Credit Control
GL	- Bank Recon Entry form to Check Bank Recon Listing
Stock	- Update GL stock value from other stock month end report
	- Stock Report with Execute access right but without Process right
Inquiry	- Hide Dashboard

1. Maintain User

1. Tools > Maintain User.



2. Edit User

1. Double-click the user you want to set up > Edit.





3. Set Approval Person

• Set the details for the Approval Person (ONLY GMAIL CAN LOGIN TO APPROVE OR REJECT).

  1. Mobile number: The WhatsApp number to receive notifications for approval.

  2. Email: The email address to receive notifications for approval.

  3. Open ID (Google): The Gmail account used to approve or reject.

  note

  If the notification email and approval email are both Gmail, configure only Open ID (Google) and leave the Email column blank.



  For Example:

  • Scenario 1: Use the Same Gmail to Receive Notifications and Give Approval

    Your Gmail address is: XXXXXX@gmail.com

    1. Open ID (Google): XXXXXX@gmail.com
    2. Email: Leave blank



  • Scenario 2: Use Different Emails to Receive Notifications and Give Approval

    • Gmail Address for Approval: XXXXXX@gmail.com

    • Email Address for Notifications: XXXXXX@estream.com

      1. Open ID (Google): Put your Gmail address XXXXXX@gmail.com
      2. Email: XXXXXX@estream.com



4. Setting SMTP

note

• This setting is for users who want to use Email to send notifications.
• If using WhatsApp to send approvals, you can skip this step.

1. Ensure you have created an App Password.

   • If you are using Gmail, you can click this link to follow the steps to create your App Password.
   • After obtaining your App Password, return to SQL Accounting.

2. Click on Email Setting.

3. Enter your Email SMTP Host.

4. Enter your Email SMTP Port.

5. Enter your Email SMTP Connection Security.

6. Enter your Email Address.

7. Enter your App Password.

8. Enter your Email Sender Name.

9. After completing the settings, click Save.



Maintain Journal

Journal is primarily used to categorize document types while analyzing reports by journal.

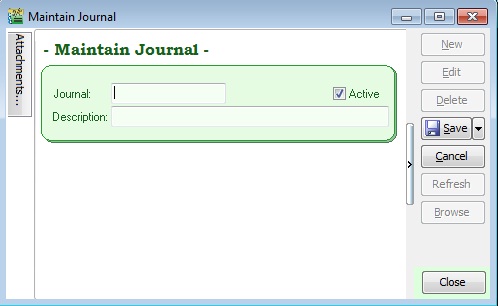

Create New Journal

Field Name	Explanation & Properties
Journal	- Input the new Journal code

• Field type: Alphanumerical
• Length: 10 | | Description | - Input the Journal description
• Field type: Alphanumerical
• Length: 80 | | Active | - Checked = Active
• Unchecked = Inactive | |

Journal Setting

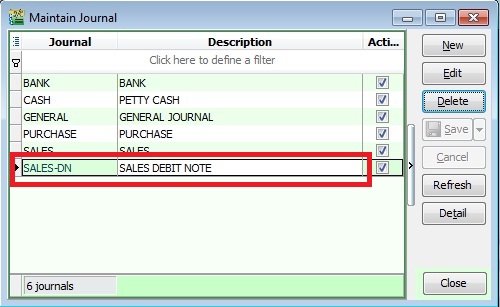

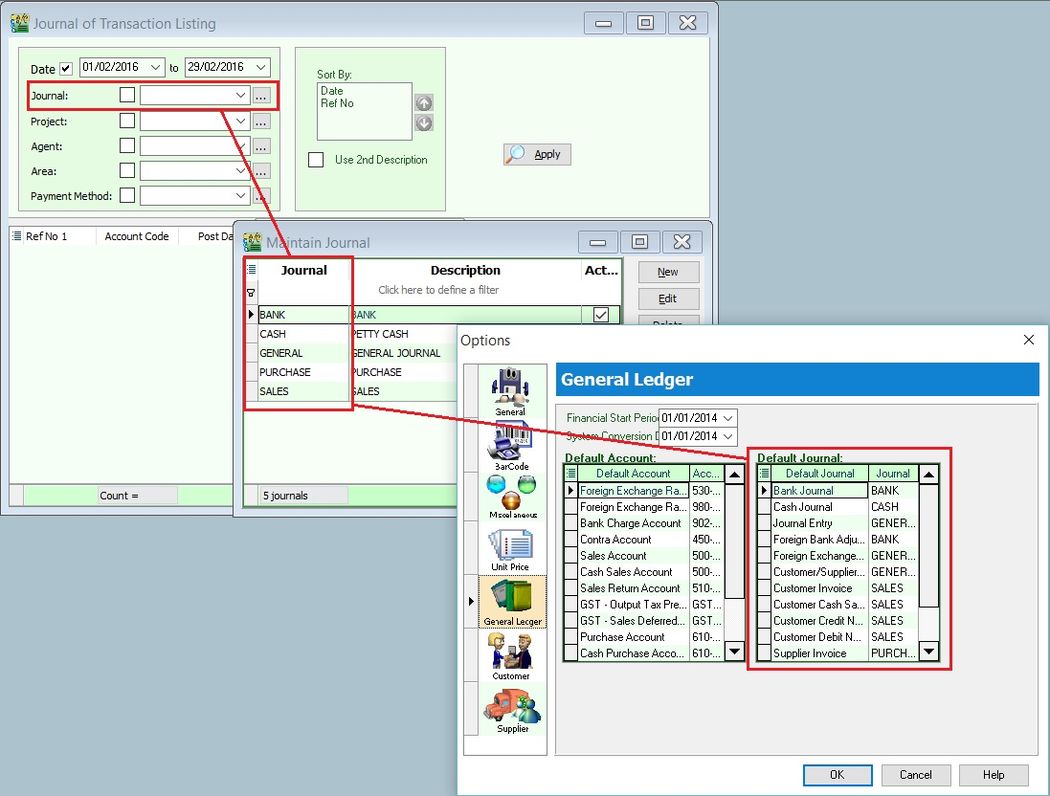

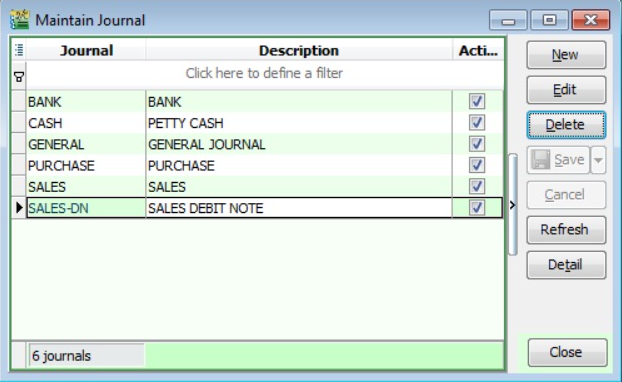

1. Let's say you have created a new Journal named Sales-DN. See the screenshot below.

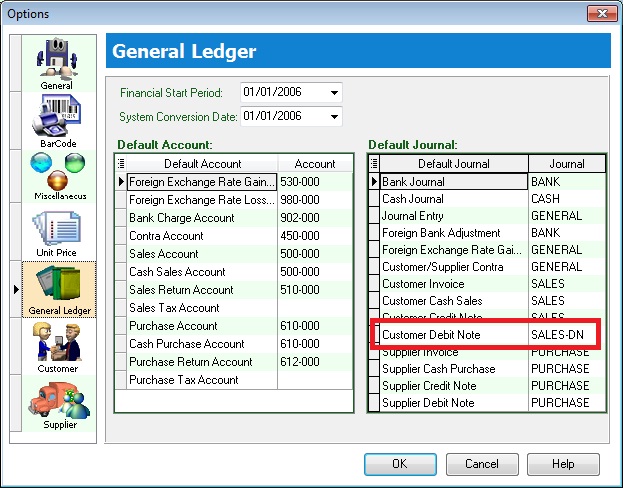

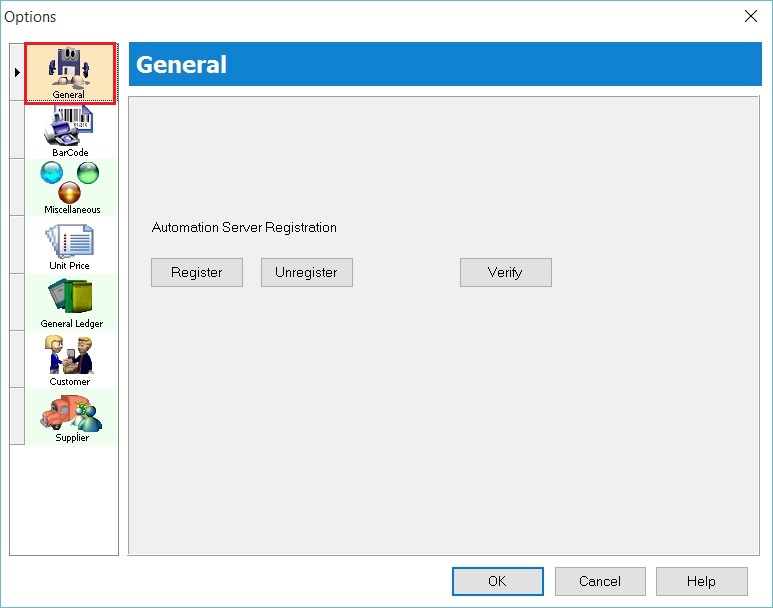

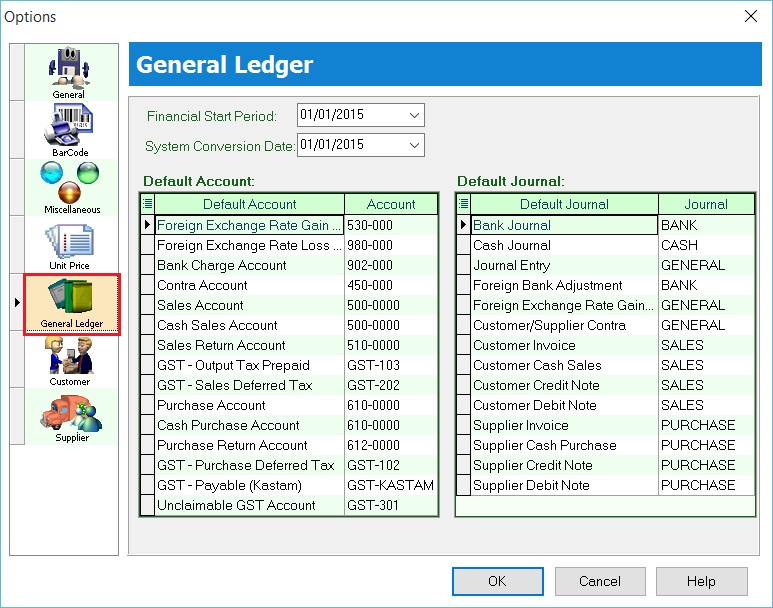

2. You must set the Journal at Tools > Options....

3. In the General Ledger tab, you can link the Journal to a default Journal.

4. For example, link the Sales-DN Journal to a default Journal like Customer Debit Note. See the screenshot below.

Reporting by Journal

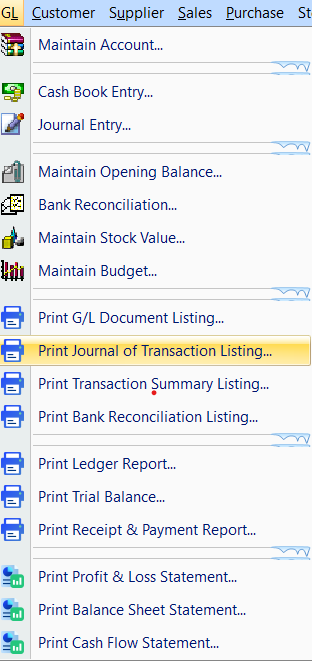

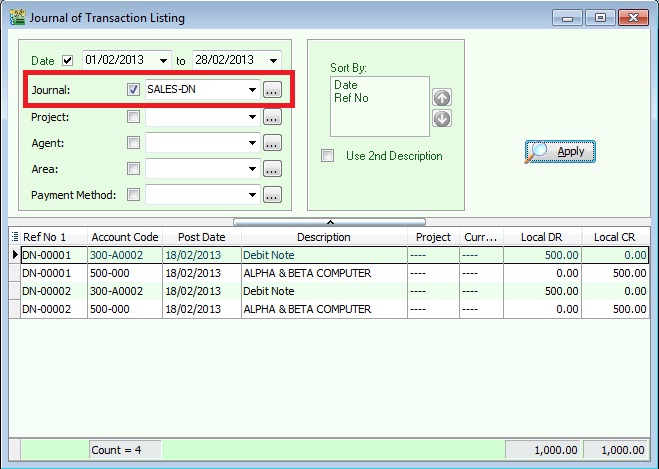

GL > Print Journal of Transaction Listing... See the screenshot below:

1. You can select the Journal lookup as shown in the screenshot above.
2. The system will list the double entries posted from the Sales / Customer Debit Note.

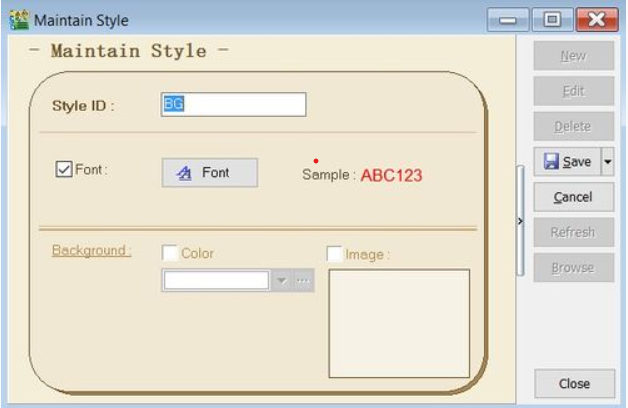

Maintain Style

Menu: Tools > Maintain Style

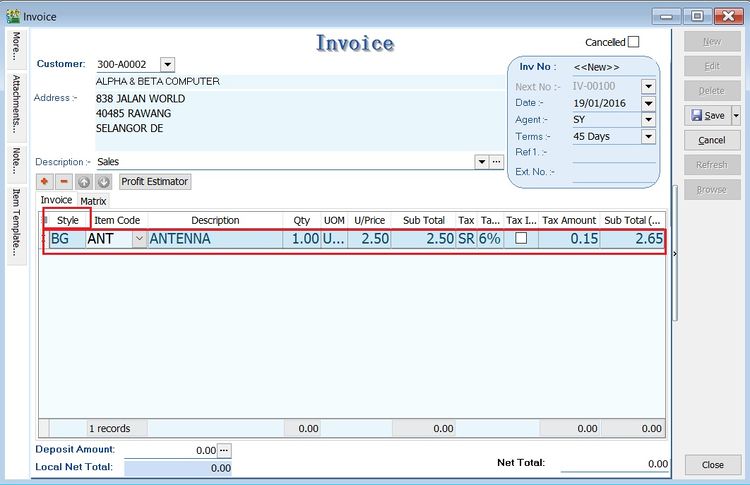

Use this to display document details in different font types (currently not supported) and sizes. For example, if the document detail font size is 10, see the screenshot below:

Create New Style

Field Name	Explanation & Properties
Style ID	- Input the new Style ID. - Field type: Alphanumerical - Length: 5
Font	- Always tick and click on the Font button to select the font size. - Field type: Checkbox
Background - Color	- Not supported
Background - Image	- Not supported

Maintain Commission

Menu: Tools > Maintain Commission Script...

1. Execute a simple commission script to determine the commission rate based on the payment age (Payment Date - Invoice Date).
2. The Sales Commission Script module is required.

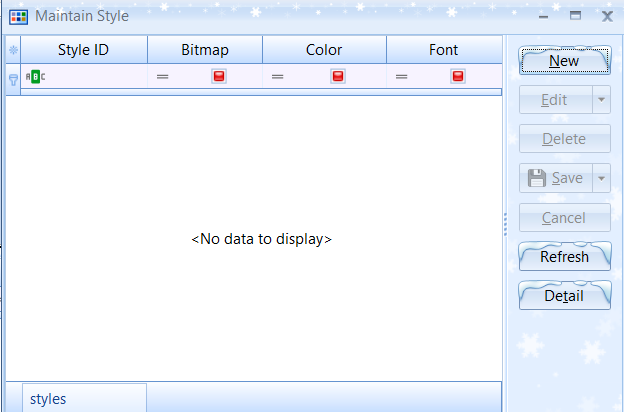

Browse mode in Maintain Style. See the screenshot below:

Create New Commission Script

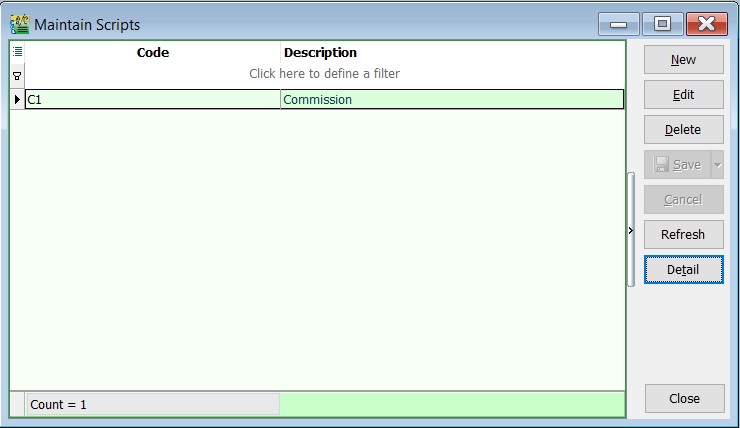

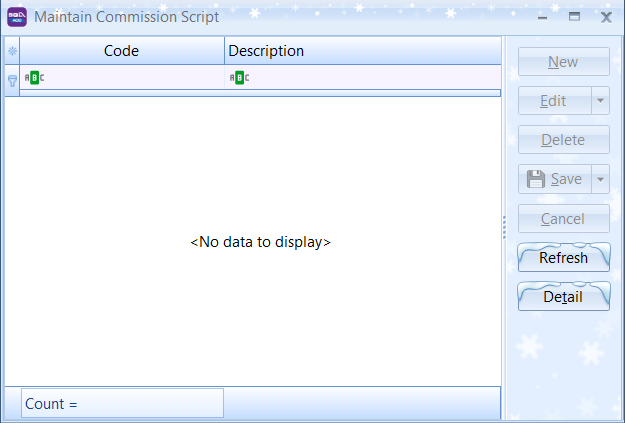

1. Click on NEW. See the screenshot below.

Field Name	Explanation
Code	Input the new code.
Description	Input the commission script description.
Script	Load the commission script.

2. Example of the scripts:

   a. Script 1

Commission Script

procedure CalculateCommission(AKODocAmt, AAge: variant; var Value: variant);
begin
  if AAge < 10 then
    Value := AKODocAmt * 0.05
  else if AAge < 20 then
    Value := AKODocAmt * 0.03
  else if AAge < 30 then
    Value := AKODocAmt * 0.02
  else
    Value := AKODocAmt * 0.005;
end;

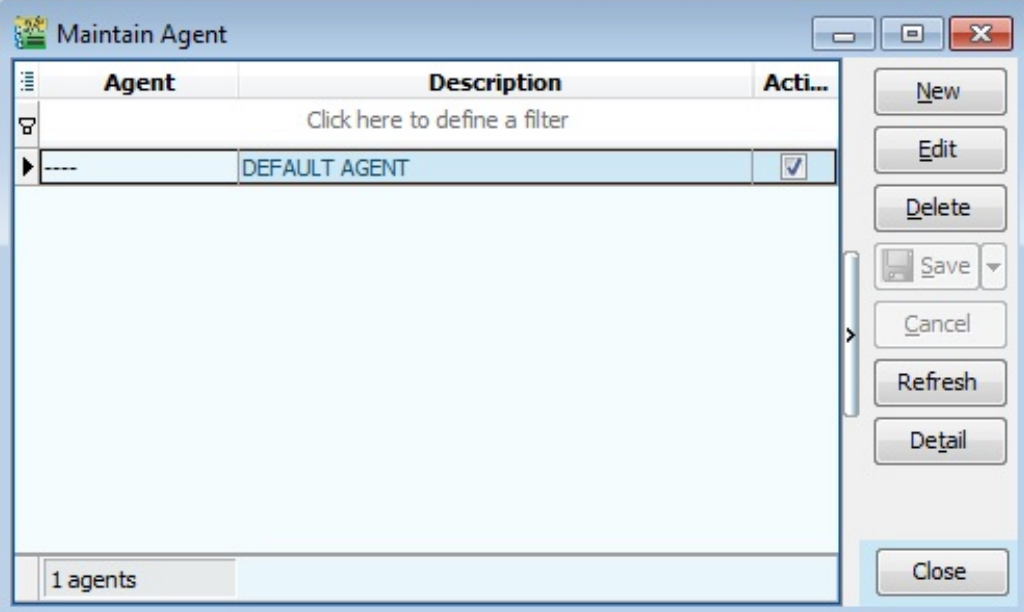

Maintain Agent

Menu: Tools > Maintain Agent...

1. An Agent is a sales person or sales representative.
2. This is very useful when applying reports by an Agent.
3. You can create or edit the Agent or sales person code here.

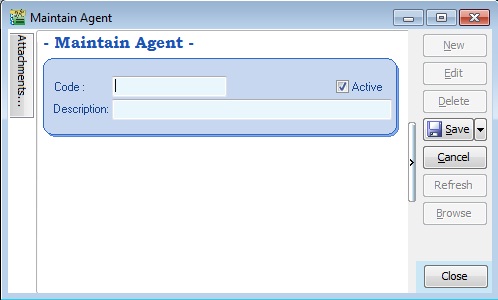

Create New Agent

Field Name	Explanation & Properties
Code	- Input the new Agent code - Field type: Alphanumerical - Length: 10
Description	- Input the Agent Name - Field type: Alphanumerical - Length: 80
Active	- Checked = Active - Unchecked = Inactive

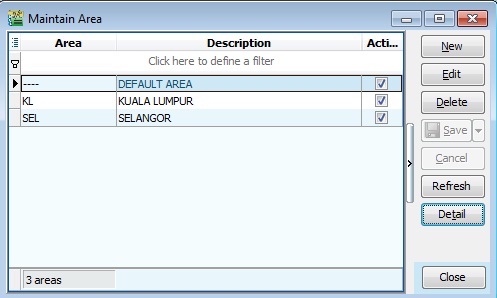

Maintain Area

Menu: Tools > Maintain Area...

1. Area can represent states, countries, or regions.
2. This is very useful when applying reports by Area.
3. You can create or edit the area or country code here.

Create New Area

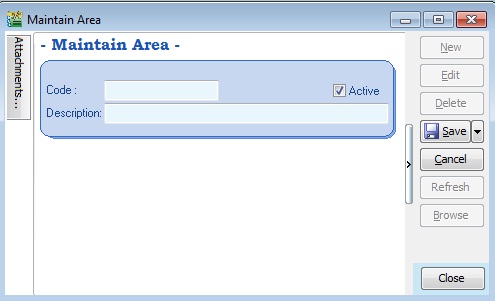

Below is the Area entry form:

Maintain Withholding Tax

Menu: Tools > Maintain Withholding Tax...

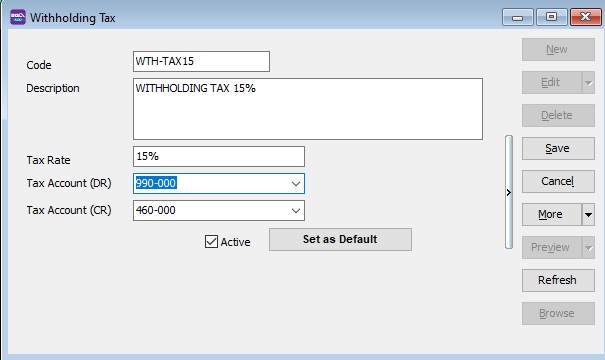

Create Withholding Tax Code

1. Click New.

2. Input the following data:

   Field Name	Explanation	Remark
   Code	Set a code	WTH-TAX15
   Description	Describe the meaning/usage of this code	Withholding Tax 15%
   Tax Rate	Withholding Tax Rate	15%
   Tax Account (DR)	Set to Withholding Tax Expense account	At GL > Maintain Account, create the Withholding Tax Expense account under Expenses
   Tax Account (CR)	Set to Withholding Tax Payable account	At GL > Maintain Account, create the Withholding Tax Payable account under Current Liabilities



3. Click Save.

Maintain Company Category

Menu: Tools > Maintain Company Category...

1. Company Category is usually used to categorize customers/suppliers. For example: 3rd Parties-Domestic, 3rd Parties-Export, Intercompany, etc.
2. This is very useful when applying reports by Company Category.
3. You can create or edit the Company Category or sales person code here.

Create New Company Category

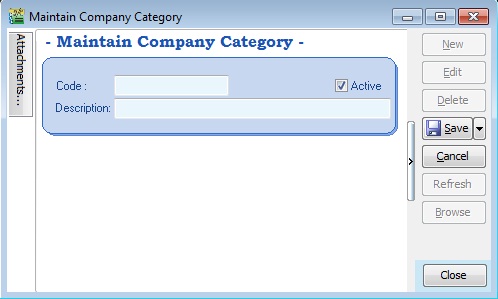

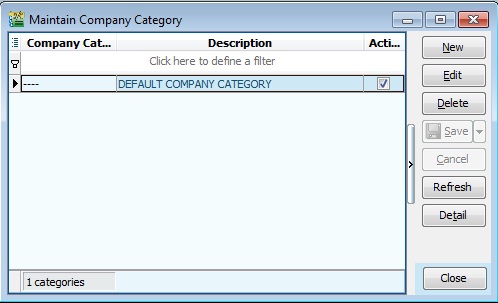

The screenshot below shows the Company Category entry form.

Field Name	Explanation & Properties
Code	Input the new Company Category code Field type: Alphanumerical Length: 10
Description	Input the Company Category Name. Field type: Alphanumerical Length: 80
Active	Checked = Active Unchecked = Inactive

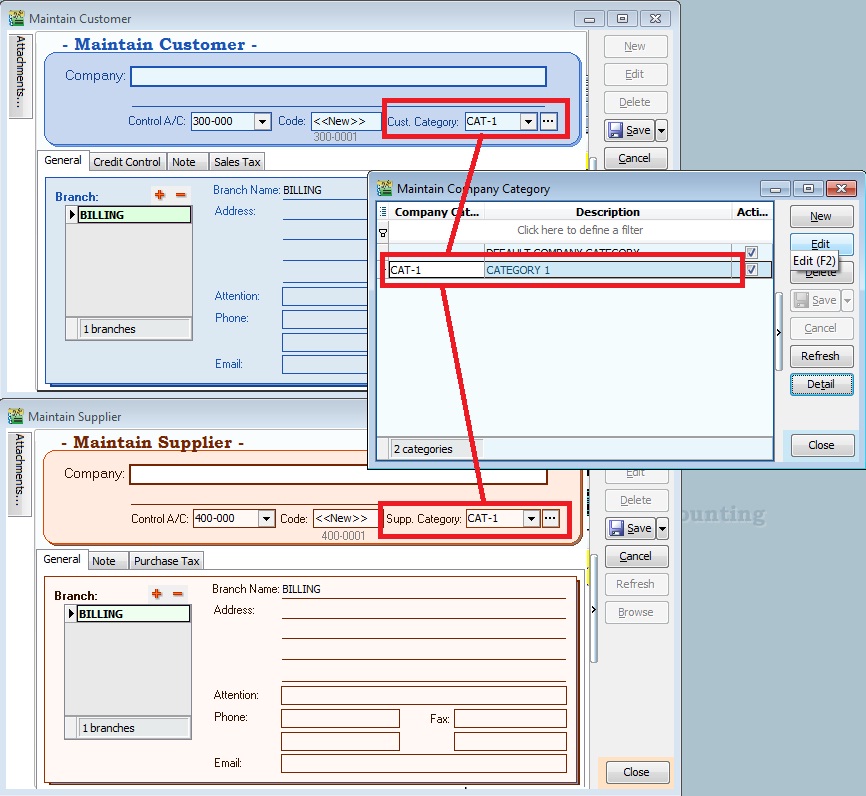

Use of Company Category

You can link the Company Category to a Customer or Supplier.

Reports by Company Category

1. You can apply the following reports by Company Category:

   Customer

   a. Print Customer Document Listing...

   b. Print Customer Balance Report...

   c. Print Customer Due Document...

   d. Print Customer Aging Report...

   e. Print Customer Statement...

   f. Print Customer Post Dated Cheque Listing...

   g. Print Customer Analysis By Document...

   h. Print Customer Sales and Collection Analysis...

   Supplier

   a. Print Supplier Document Listing...

   b. Print Supplier Balance Report...

   c. Print Supplier Due Document...

   d. Print Supplier Aging Report...

   e. Print Supplier Statement...

   f. Print Supplier Post Dated Cheque Listing...

   g. Print Supplier Analysis By Document...

   h. Print Supplier Sales and Collection Analysis...

   Sales

   a. Print Sales Document Listing...

   b. Print Outstanding Sales Document Listing...

   c. Print Sales Price History...

   d. Print Profit & Loss by Document...

   e. Print Sales Analysis by Document...

   f. Print Yearly Sales Analysis...

   Purchase

   a. Print Purchase Document Listing...

   b. Print Outstanding Purchase Document Listing...

   c. Print Purchase Price History...

   d. Print Purchase Analysis by Document...

   e. Print Yearly Purchase Analysis...

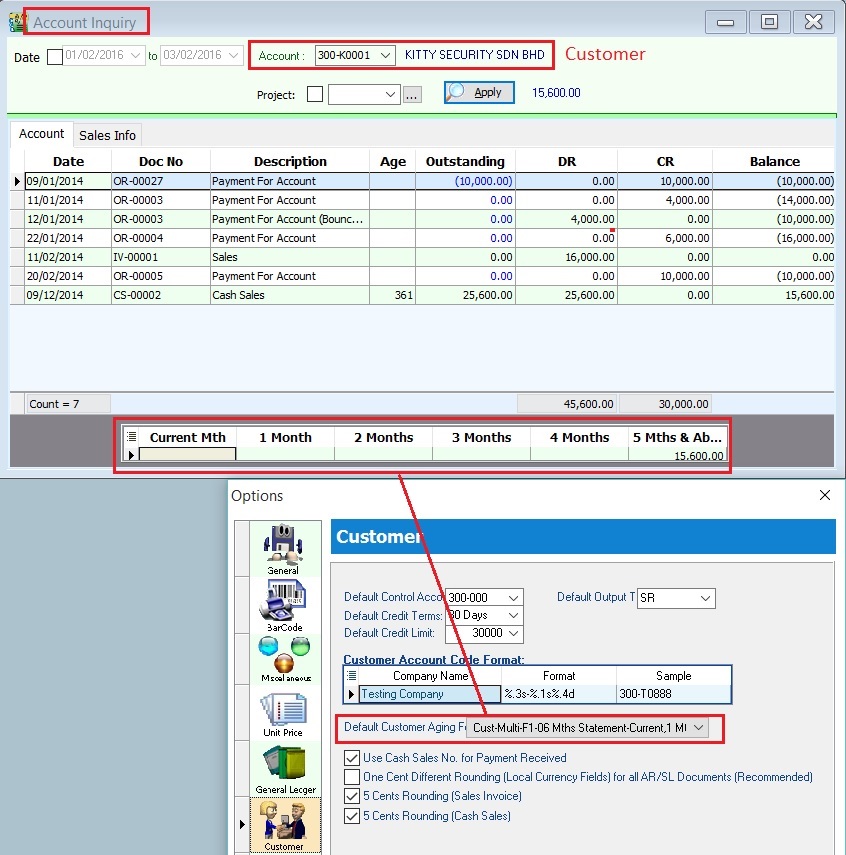

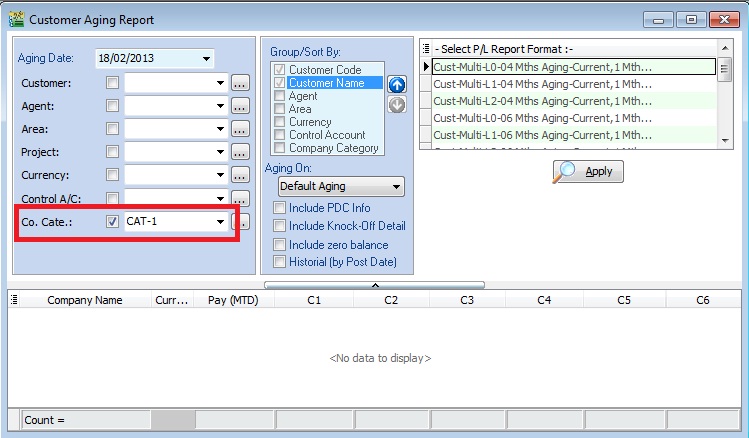

2. Example of the Print Customer Aging Report screenshot:

Maintain Shipper

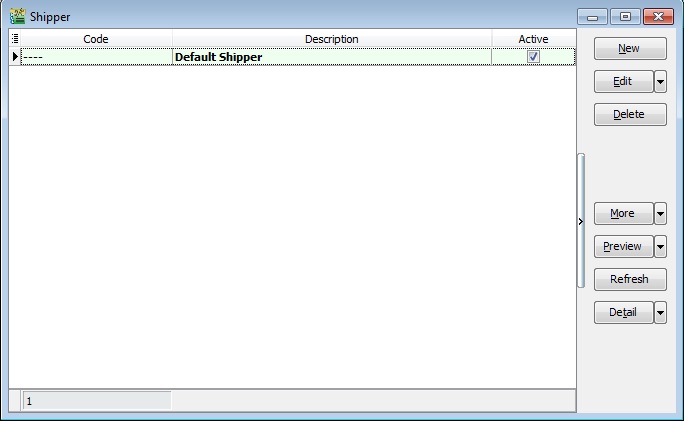

Menu: Tools > Maintain Shipper...

1. Maintain the shipper profile, such as Name, Address, Phone, Account, etc. This makes it easy to trace the shipper who shipped the goods or services.
2. Sometimes, you can use this as a "Global Delivery" where you can apply it to both sales and purchase documents.

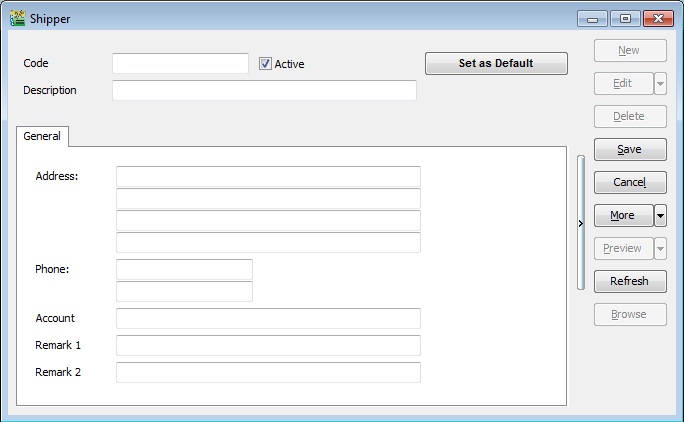

Create New Shipper

Shipper Fields

Field Name	Explanation	Properties
Code	Input the new Shipper code	Alphanumerical, Length: 30
Description	Input the Shipper name	Alphanumerical, Length: 160
Address	Input the Shipper Address	Alphanumerical, Length: 60 per line
Phone	Input the Shipper Phone	Alphanumerical, Length: 20 per line
Account	Input the Shipper Account	Alphanumerical, Length: 40
Remark 1	Input any remark (free field)	Alphanumerical, Length: 200
Remark 2	Input any remark (free field)	Alphanumerical, Length: 200
Active	Checked = Active, Unchecked = Inactive	Boolean

Use of Shipper

1. In both Sales and Purchase documents, you can select the shipper by clicking on the MORE tab (left sidebar).
2. Example of the Sales Delivery Order screenshot:

Report by Shipper

1. You can apply the Sales report by Shipper, especially reports from Sales > Print Sales Price History.

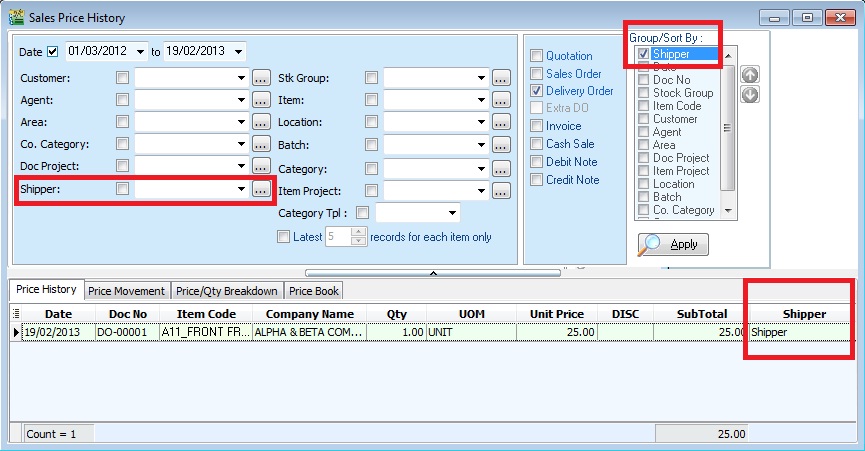

2. Example of the Sales Price History report screenshot:

Maintain Tariff

Menu: Tools > Maintain Tariff...

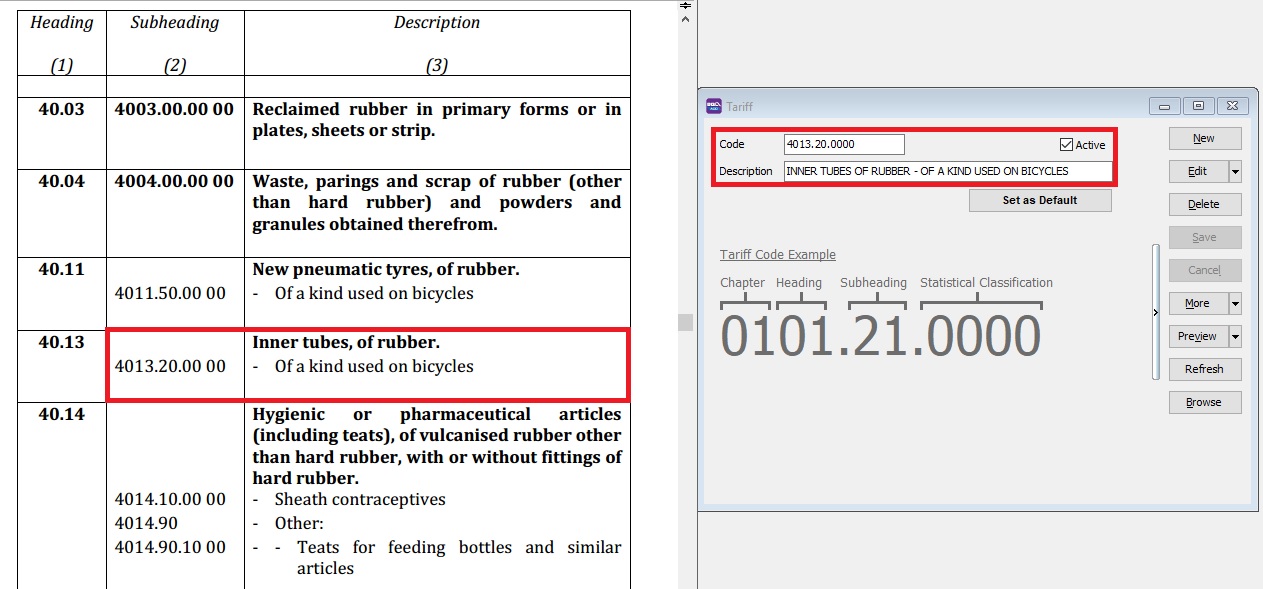

• Tariff classification is a complex yet extremely important aspect of cross-border trading.

• Goods imported from or to Malaysia are classified by the Harmonized Tariff Schedule (HTS), commonly referred to as HS Codes.

• These codes, created by the World Customs Organization (WCO), categorize up to 5,000 commodities. HS Codes consist of 6-digit numbers recognized internationally, although different countries can extend the numbers by two or four digits to define commodities at a more detailed level.

Click here to search for tariff rates on products to search the tariff code list from the Kastam system.

Create New Tariff

Field Name	Explanation	Properties
Code	Input the new Tariff Code	Alphanumerical, Length: 20
Description	Input the Tariff Description	Alphanumerical, Length: 160
Active	Checked = Active, Unchecked = Inactive	Boolean

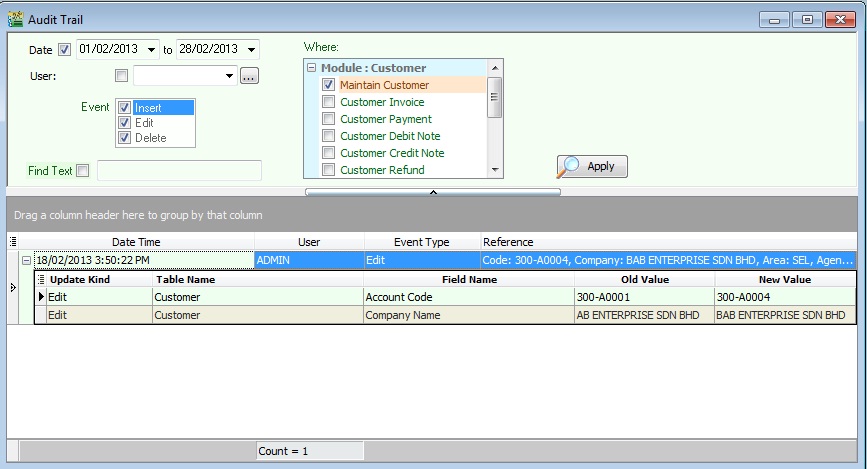

Print Audit Trail

Menu: Tools > Print Audit Trail...

All questions regarding who created, edited, or deleted data, and when, can be answered through the Print Audit Trails.

Field Name	Explanation & Properties
Date	Input the date range to be audited.
User	Select the user to be audited.
Event	Insert = Check who/when the data was created. Edit = Check who/when the data was modified. Delete = Check who/when the data was deleted.
Where	Tick the modules to be audited.
Find Text	Input a specific keyword to be audited, e.g., invoice no., customer code, etc.

Advanced Options

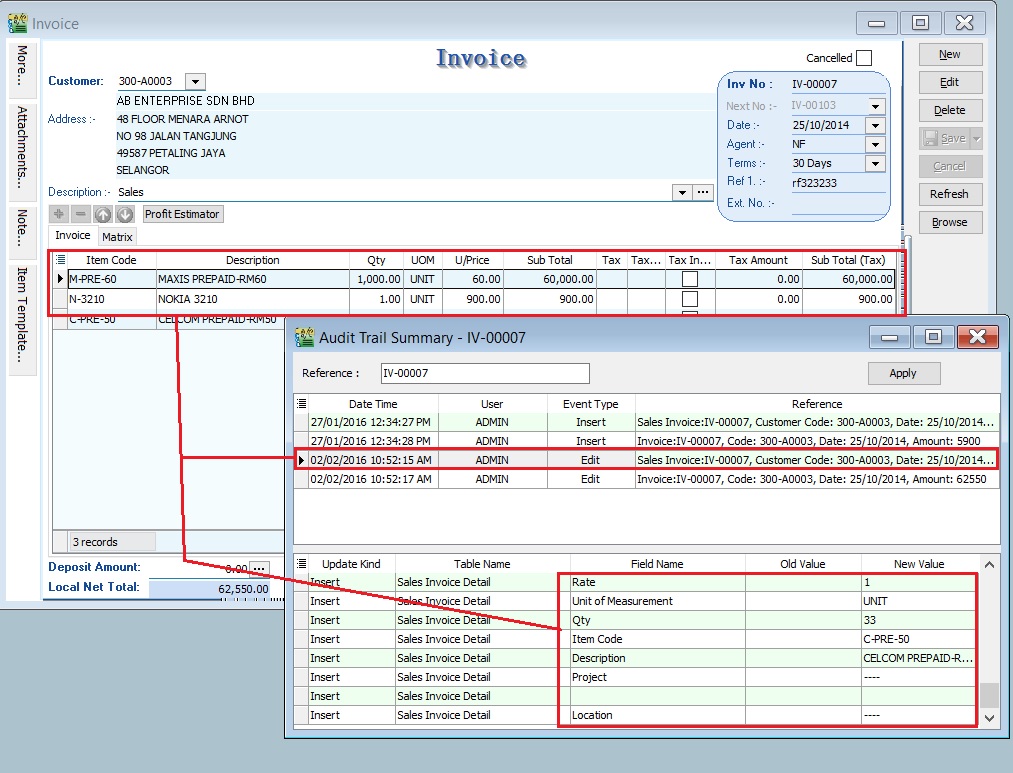

If you wish to audit Sales / Purchase / Stock document details, you must enable Post Audit Trail for Stock/Sales/Purchase Detail. See the screenshot below:

Analyse Data Integrity

Menu: Tools > Analyse Data Integrity...

warning

RUN Analyse Data Integrity ONLY when you have at least 1-3 hours for operations and SQL Account is fully stopped.

Use this to perform a data integrity check. It is recommended to perform this action weekly or monthly (before month-end closing).

Reasons to run this may include unpredictable matters such as:

1. Hardware malfunctions/glitches (e.g., network switch, computer, server).
2. Network instability (e.g., wireless connection loss).
3. Power failure.
4. Operating System failure.

Parts of Analyse Data Integrity - click to expand

There are 3 parts to Analyse Data Integrity:

a. Regular Data Integrity (Default)

• Check AP Knock Off Integrity
• Check AR Knock Off Integrity
• Update Customer Outstanding
• Check Document Integrity
• Check Document Transfer Integrity
• Check Delivery Order/Invoice/Cash Sales to Credit Note Posting Date
• Check Production Document Transfer Integrity
• Check GL Opening Balance
• Check GST DO -> IV Posting Integrity
• Repost Stock Transactions
• Calculate Stock Costing
• Compress Stock Item Pictures
• Update Stock Balance Quantity
• Update Supplier Outstanding
• Resequence Table Fields
• Regenerate Views
• Remove Temporary Table

b. Reposting (Optional)

• Repost AR Documents
• Repost AP Documents
• Repost GL Documents
• Repost PH Documents
• Repost SL Documents

NOTE:

1. Reposting might take a longer time to perform for the selected documents.

2. It is recommended to run this on the server side.

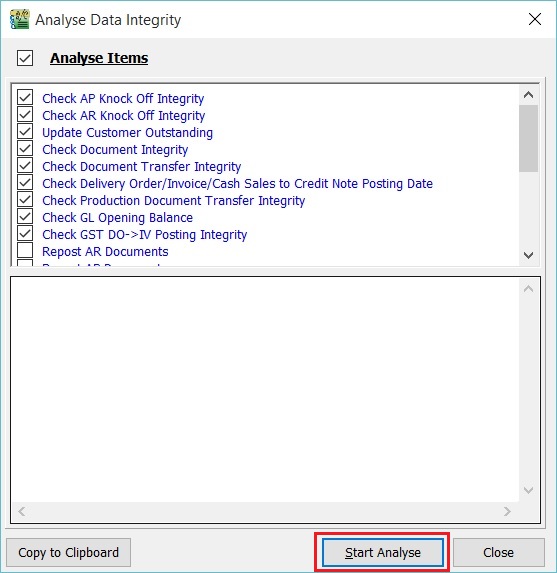

To Start Analyse

1. Tick the Analyse Items required, otherwise skip this step.

2. Click on Start Analyse.

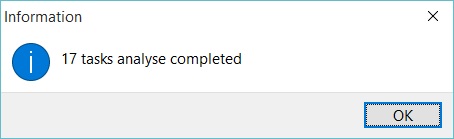

3. A message will inform you when the total tasks ticked have completed analysis.

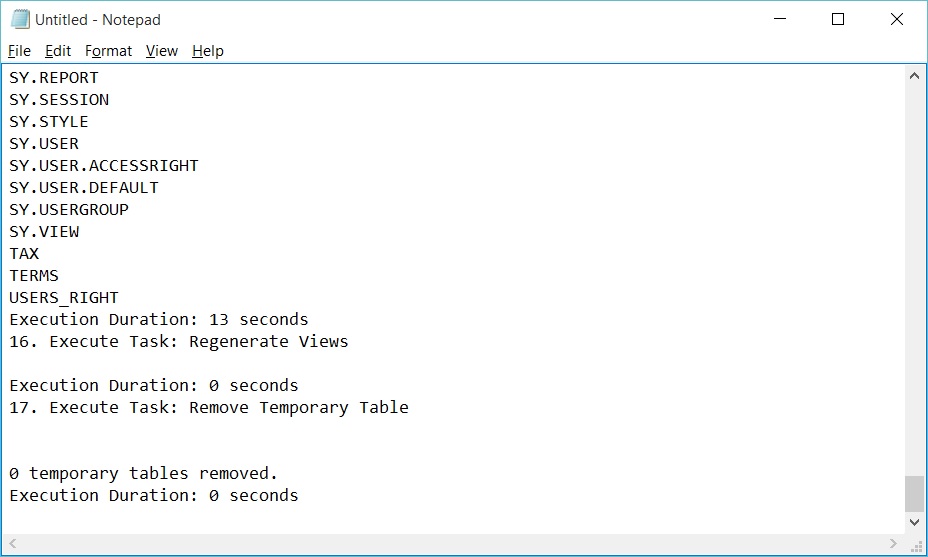

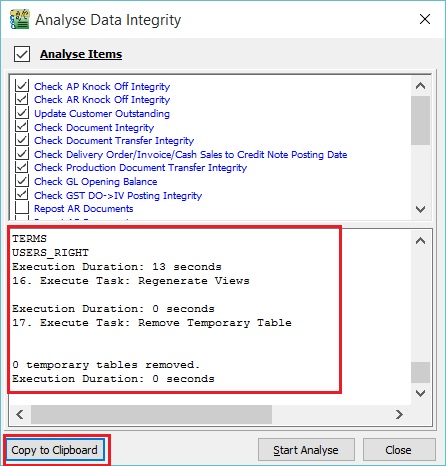

4. You can copy the analysis log details by clicking Copy to Clipboard.



5. Open Notepad or Microsoft Word and paste it.

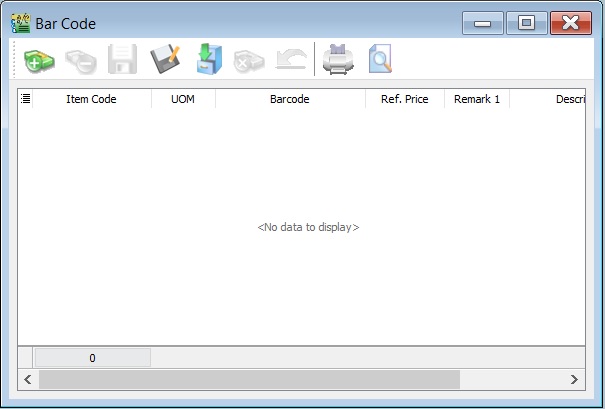

Print Bar Code (Direct Printer)

Menu: Tools > Print Bar Code (Direct Printer)

Use this to print barcode labels using a Special Bar Code Printer for items created in Maintain Stock Item.

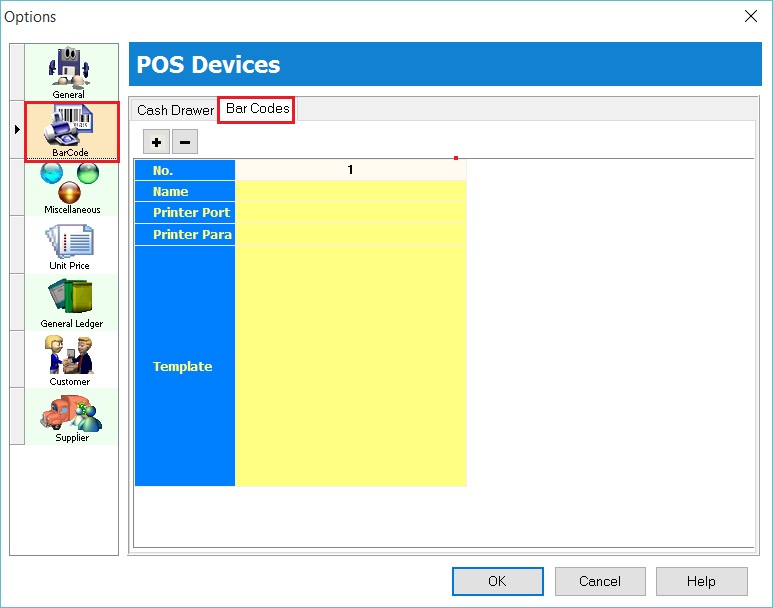

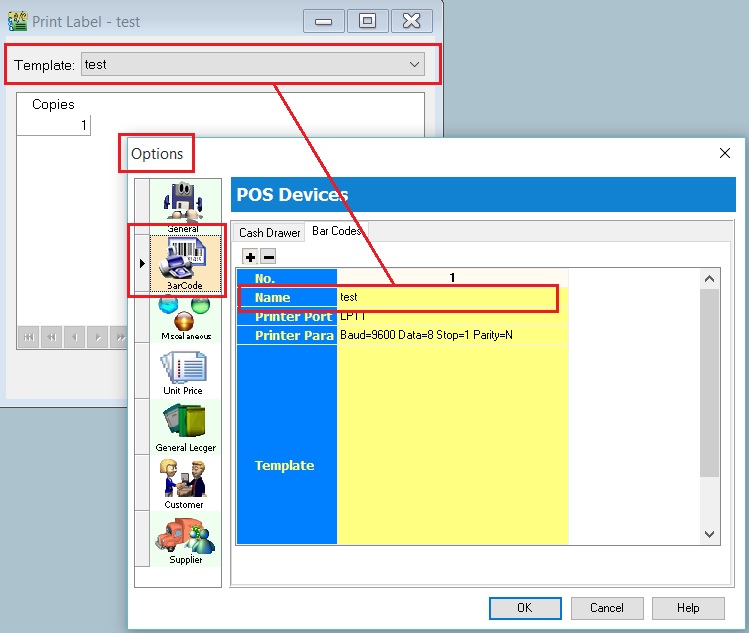

Bar Code Printer Setting

Menu: Tools > Options... (BarCode)

1. Insert the new barcode printer settings and template.



2. Click OK to exit.

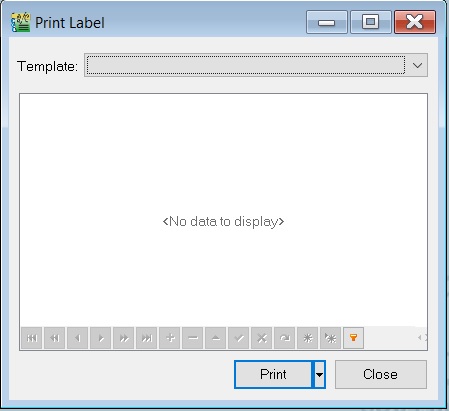

Print the Bar Code Label

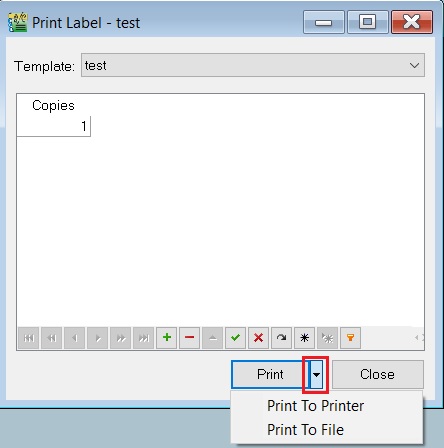

1. Click the arrow key down beside the Print button. See the screenshot below.
2. You can choose either Print to Printer (barcode printer) or Print To File (output as a text file).

Print Bar Code (Windows Printer)

Menu: Tools > Print Bar Code (Windows Printer)

Use this to print barcode labels using a Windows Printer for items created in Maintain Stock Item.

Update Item Bar Code Listing

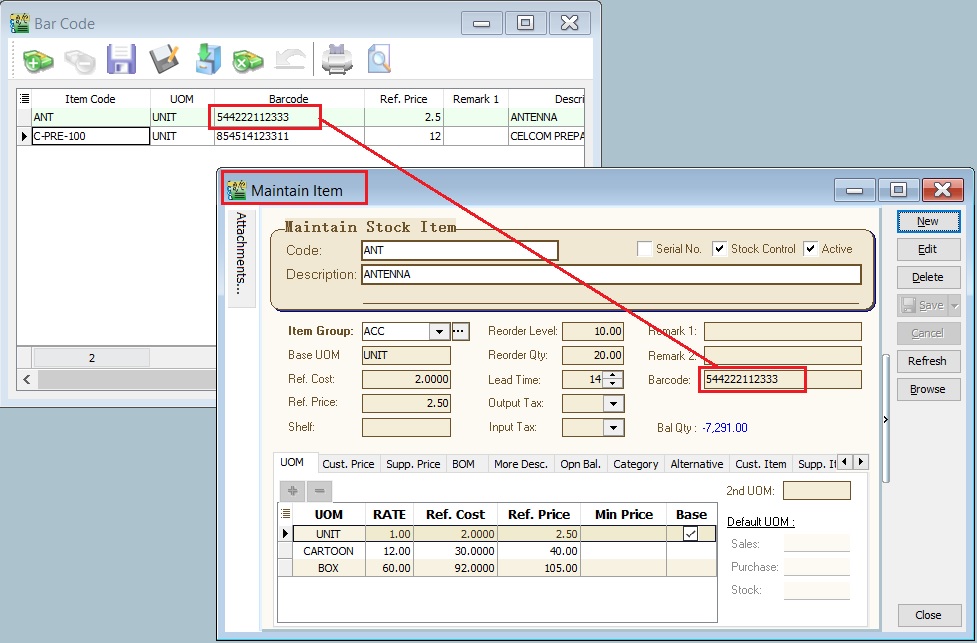

1. First, update the item barcode in Maintain Stock Item.



2. Click the + button to insert items. See the screenshot below.



3. Click the SAVE button to save the item barcode listing. Type a file name (e.g., BarCode_Items_31122015) to save. See the screenshot below.

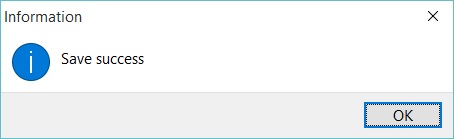

4. A message will be prompted. Click OK.

Load the Previous Item Bar Code Listing

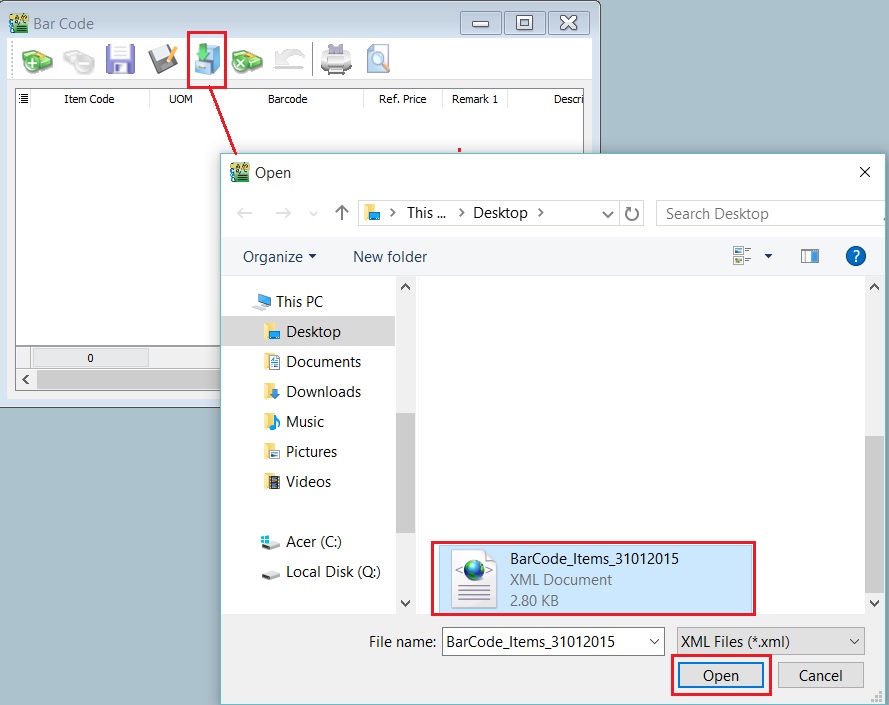

1. Click the Cabinet button to load a previous file for the item barcode listing (e.g., BarCode_Items_31122015). Click OPEN.

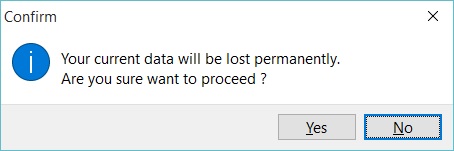

2. A confirmation message will be prompted. Click OK to load it or NO to cancel.



3. A "Load success" message will be prompted. Click OK to proceed.

Preview/Print the Bar Code Level

1. Click Preview or Printer (to skip the preview).



2. After the preview, click the Printer button to print.

How to Change the Label Size (mm) Measurement for the Bar Code Label

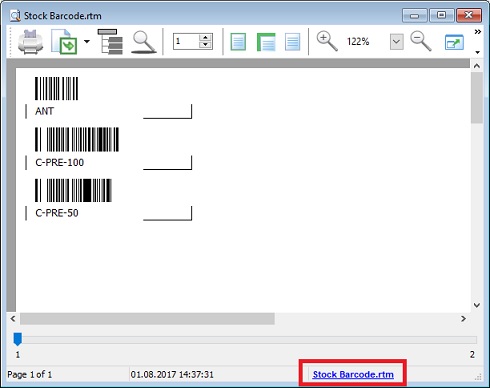

1. Click on the Report Name. See the screenshot below.

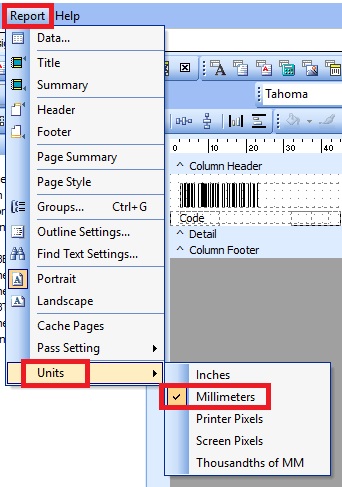

2. To change the paper unit measurement, click Report > Units and choose Millimeters.

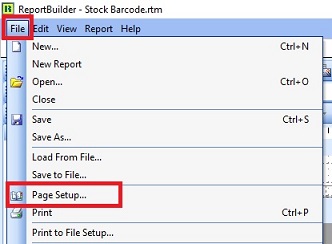

3. To change the paper size, click File > Page Setup....



4. Click the Paper Size tab and change the Width and Height to 35 and 25 respectively (mm). For example, the label paper size is 35mm x 25mm.

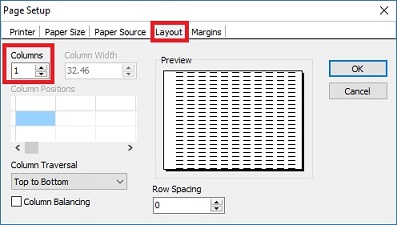

5. Check the Layout tab to ensure Columns is set to 1.

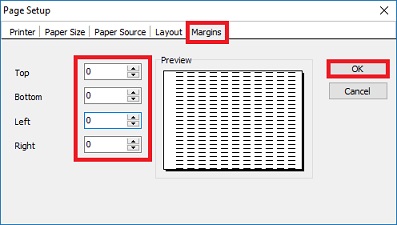

6. Check the Margin tab to ensure all (Top, Bottom, Left, Right) are set to 0. Click OK to exit Page Setup.



7. To ensure each page contains 1 barcode of an item, right-click on the Detail band and select Position.



8. Set Print Count to 1. Click OK to confirm.



9. Save the report with another name.

Options

Options (Acc) - click to expand

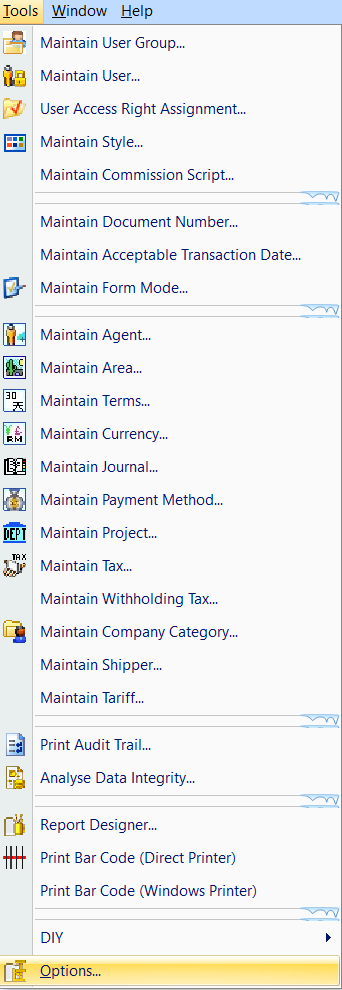

Menu: Tools > Options...

Settings for the following:

1. General
2. BarCode
3. Miscellaneous
4. Unit Price
5. General Ledger
6. Customer
7. Supplier

General

• Automation Server Registration: Use this to register/communicate with external applications via the Windows platform.

Bar Code

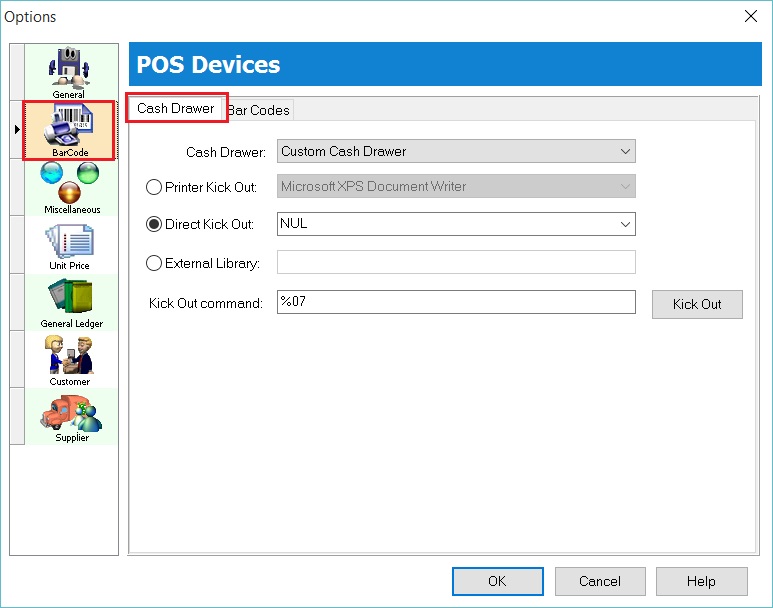

• Define the Cash Drawer settings with a compatible device.

• Define the Barcode settings with a compatible device (e.g., barcode printer).

Miscellaneous

Other settings.

To set the display format

• To understand the display format, see the picture below:

Numbering Type	Display Format	Example
Accounting Value	#,0.00;(#,0.00)	Amount/DR/CR display format Positive value = 1,000.00 Negative value = (1,000.00)
Currency Rate	#,0.0000	Exchange Rate display format, e.g. 1 USD = 4.2334 MYR
Stock Quantity	#,0.00;-#,0.00	Qty display format Qty In = 2.00 units Qty Out = -2.00 units
Item Selling Price	#,0.00;-#,0.00	Sales Unit Price display format, e.g. unit selling price = 25.53
Item Purchase Price / Costing	#,0.00;-#,0.00	Purchase Unit Price and Total Cost display format, e.g. unit purchase price = 15.33

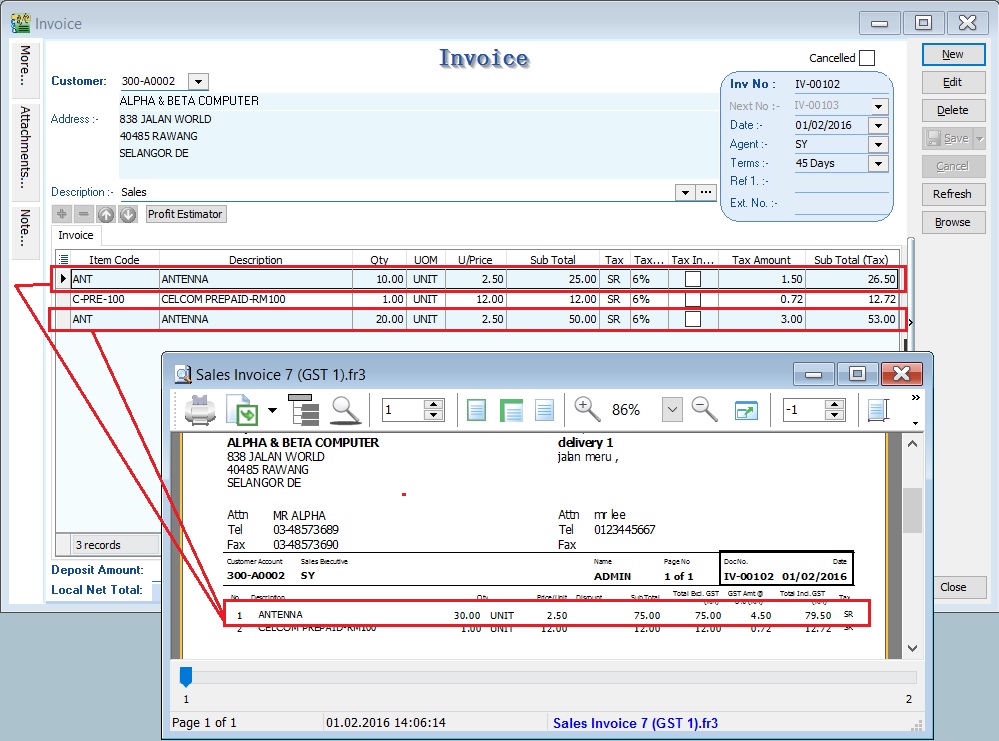

Merge Same Item Code

1. Tick this option to merge the same items' quantity and amount when printing documents (e.g., Sales Invoice, Cash Sales, etc.).
2. Conditions:

• a. Same Item Code;
• b. Same UOM;
• c. Same Unit Price;
• d. Same Disc;
• e. Same Tax Code.

Prompt Negative Stock Quantity Dialog Box

• Tick this option, and the system will prompt an alert message if stock falls below the quantity on hand, re-order level, or minimum quantity in sales documents.

Show Document Project

1. Tick this option to enable the selection of a Document Project.
2. See the example in the screenshot below.

Runtime Stock Costing Calculation for Stock Document

1. Enable this to execute costing calculations when printing stock document reports (report names ending with Actual Cost) in Stock Issue, Stock Adjustment, and Stock Transfer (available in the multiple warehouse module).

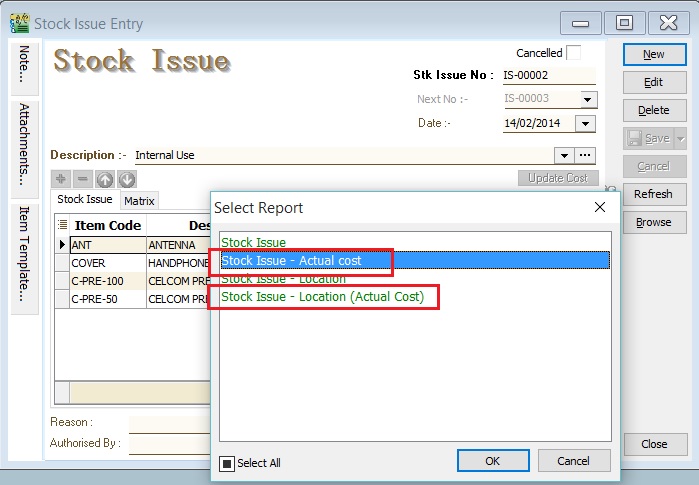

2. See the example of a Stock Issue in the screenshot below.

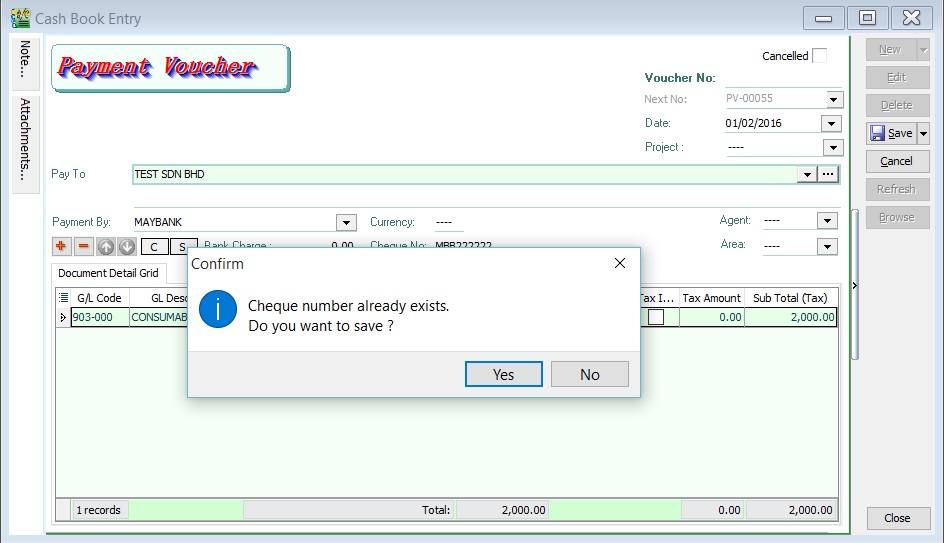

Prompt Duplicate Cheque Number

• Alert a message if a duplicate cheque number is saved in a Payment Voucher or Official Receipt.

Use Doc Date For Acceptable Transactions Date Checking

1. The system will use the document date instead of the post date to check and allow saving based on the dates set in Maintain Acceptable Transaction Date.
2. For instance, if the document date is 01/01/2016 and the post date is 17/02/2016, the system will not allow saving if it falls outside the acceptable transaction date range (e.g., 01/02/2016 - 29/02/2016). See the screenshot below.

Post Audit Trail for Stock/Sales/Purchase Detail

• Audit log the changes made in Sales and Purchase details.

Default UOM

• Set the default base UOM when creating a new item in Maintain Stock Item.

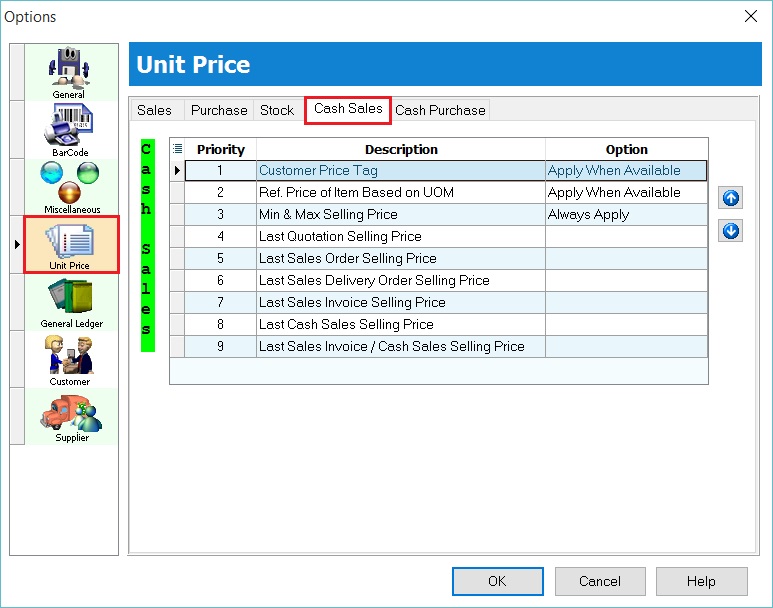

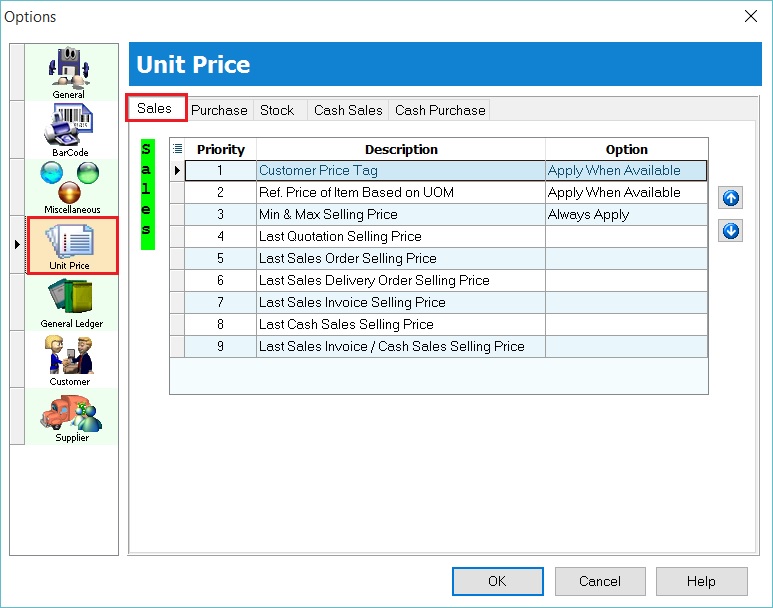

Unit Price

• Set the unit price priority applied to Sales / Purchase / Stock documents when selecting an item code for a customer/supplier.

• Sales

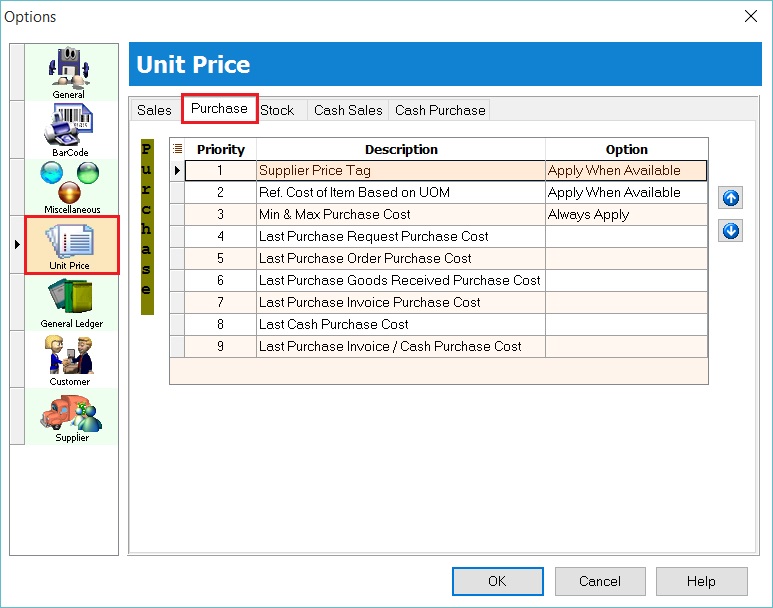

• Purchase

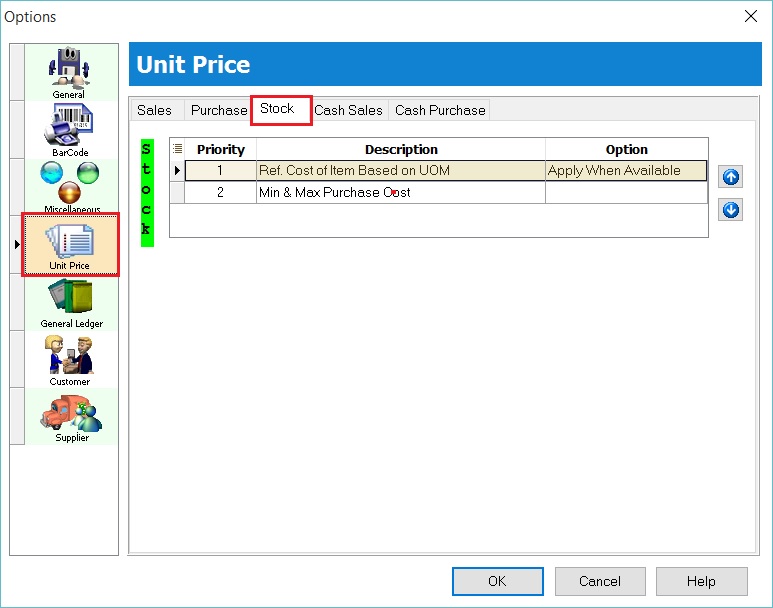

• Stock

• Cash Sales

• Cash Purchase

General Ledger (GL)

• It is important to define these settings correctly in a new database.

Financial Start Period Define the company's Financial Start Date (e.g., 01/01/2016). The system will notify you of the New Financial Start Date on January 1st every year.

System Conversation Date The date of conversion from another system or new company database setup.

Default Account Default accounts used for automatic posting by the system.

Default Account	Account	Explanation
Foreign Exchange Rate Gain Account	530-000	Foreign Exchange Rate Gain auto posting from Customer and Supplier Payment.
Foreign Exchange Rate Loss Account	980-000	Foreign Exchange Rate Loss auto posting from Customer and Supplier Payment.
Bank Charge Account	902-000	Bank charge auto posting from GL Cash Book Entry, Customer and Supplier Payment if entered in the bank charge field.
Contra Account	450-000	Applicable to Customer and Supplier Contra.
Sales Account	500-000	Default sales account in Sales Invoice and Debit Note if empty item code.
Cash Sales Account	500-000	Default cash sales account in Sales Cash Sales if empty item code.
Sales Returns Account	510-000	Default sales returns account in Sales Credit Note if empty item code.
GST-Output Tax Prepaid	GST-103	Applicable to 21 Days Rules and Non-Refundable Deposit.
GST-Sales Deferred Tax	GST-202	Applicable to Bad Debt Relief and Bad Debt Recovered related to Customer.
Purchase Account	610-000	Default purchase account in Purchase Invoice and Debit Note if empty item code.
Cash Purchase Account	610-000	Default cash purchase account in Purchase Cash Purchase if empty item code.
Purchase Return Account	612-000	Default purchase returns account in Purchase Returns if empty item code.
GST-Purchase Deferred Tax	GST-102	Applicable to Bad Debt Relief and Bad Debt Recovered related to Supplier.
GST-Payable (Kastam)	GST-KASTAM	RMCD accounts.
Unclaimable GST Account	GST-301	Applicable to Mixed Supplies only.

Default Journal

1. Classify transactions into the Journal created in Maintain Journal. Usually left as default.

2. This is very useful for applying the Journal of Transactions Listing and Summary reports.



3. Below is the default journal list:

Default Journal	Journal
Bank Journal	BANK
Cash Journal	CASH
Journal Entry	GENERAL
Foreign Bank Adjustment	BANK
Foreign Exchange Rate Gain/Loss	GENERAL
Customer/Supplier Contra	GENERAL
Customer Invoice	SALES
Customer Cash Sales	SALES
Customer Credit Note	SALES
Customer Debit Note	SALES
Supplier Invoice	PURCHASE
Supplier Cash Purchase	PURCHASE
Supplier Credit Note	PURCHASE
Supplier Debit Note	PURCHASE

Customer

• It is important to define the Customer settings in a new database.

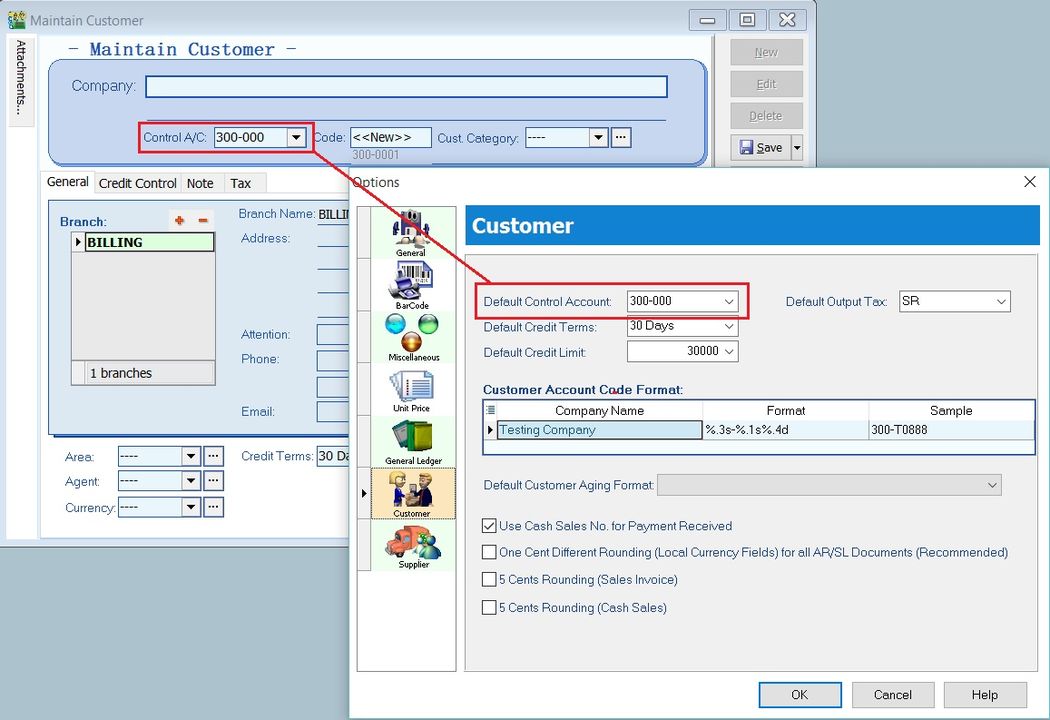

Default Control Account The default control account used when creating a new customer in Maintain Customer.

Default Credit Terms The default credit terms used when creating a new customer in Maintain Customer.

Default Credit Limit The default credit limit value used when creating a new customer in Maintain Customer.

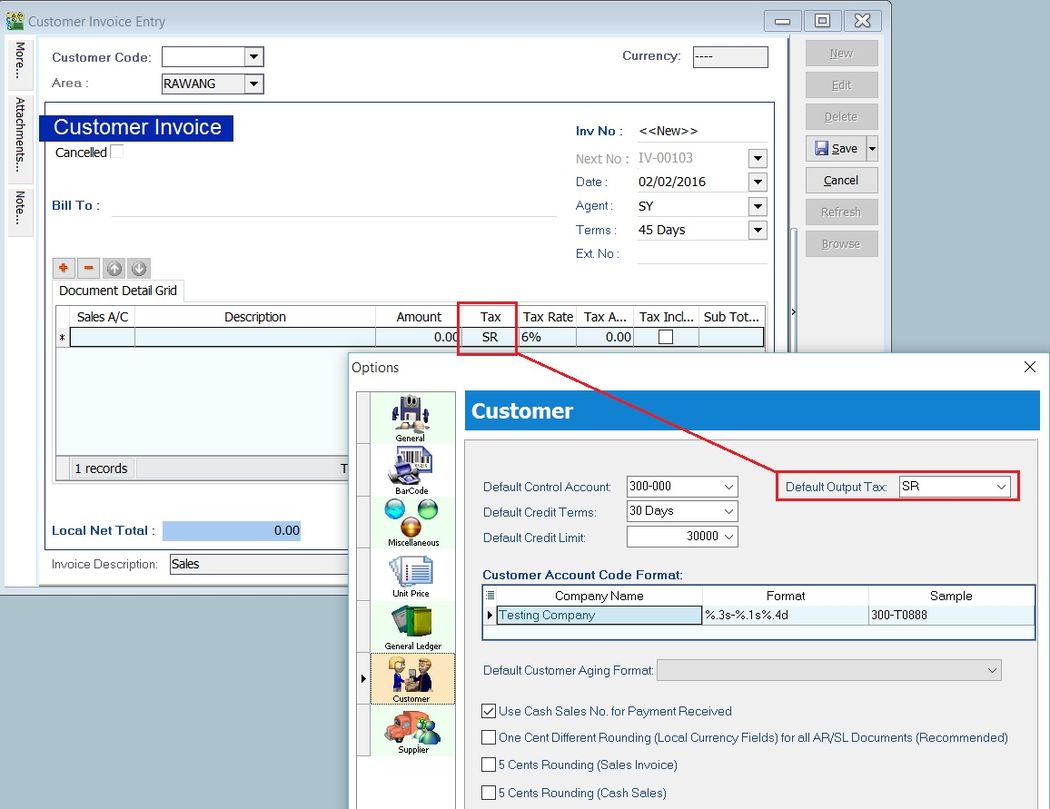

Default Output Tax The default output tax code used when creating a new customer or sales document entry (e.g., Customer Invoice, Customer Debit Note, etc.).

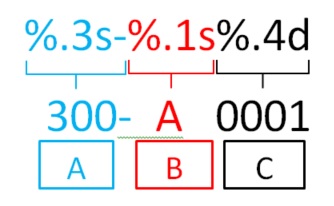

Customer Account Code Format

1. Define the customer code format.
2. Format explanation:

Ref	Code Format	Explanation
A	%.3s-	First number of digits from Customer Control Account code.
B	%.1s	First character from Customer Name.
C	%.4d	Sequence running number.

Example 1: a. Customer Control Account = 300-000 b. Customer Name = ALI BABA SDN BHD

Code Format	Result
%.3s-	300-
%.1s	A
%.4d	0001

c. Customer Code = 300-A0001

Example 2: a. Customer Control Account = 3001-0000 b. Customer Name = ALI BABA SDN BHD

Code Format	Result
%.4s/	3001/
%.2s	AL
%.2d	01

c. Customer Code = 3001-AL01

Exceptional Customer Code Format (Regular Expression)

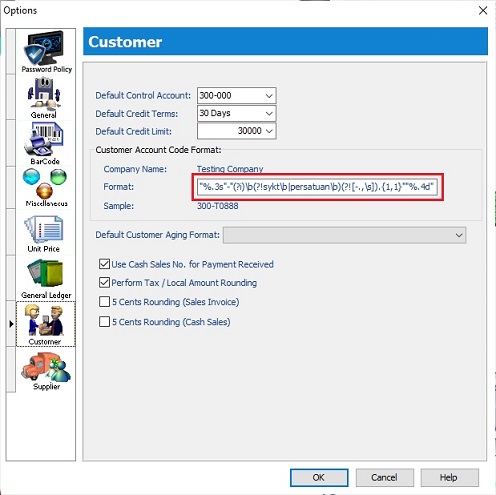

1. Copy and paste the regular expression line below into the Customer Format field (see the screenshot below).


   "%.3s"-"(?i)\b(?!sykt\b|persatuan\b)(?![-.,\s]).{1,1}""%.4d"


Example 1: a. Customer Name: SYKT ALI b. Keyword excluded: sykt (non-case sensitive) c. Customer Code = 300-A0001

Example 2: a. Customer Name: PERSATUAN KLANG b. Keyword excluded: persatuan (non-case sensitive) c. Customer Code = 300-K0001

Default Customer Aging Format

1. Set a default customer aging format to show the aging result at Inquiry > Account Inquiry (Customer).

2. Customer aging format list: a. Cust-Multi-F1-06 Mths Statement-Current,1 Mth,... b. Cust-Multi-F2-06 Mths Statement-Current,1 Mth,... c. Cust-Multi-F1-12 Mths Statement-Current,1 Mth,... d. Cust-Multi-F2-12 Mths Statement-Current,1 Mth,...

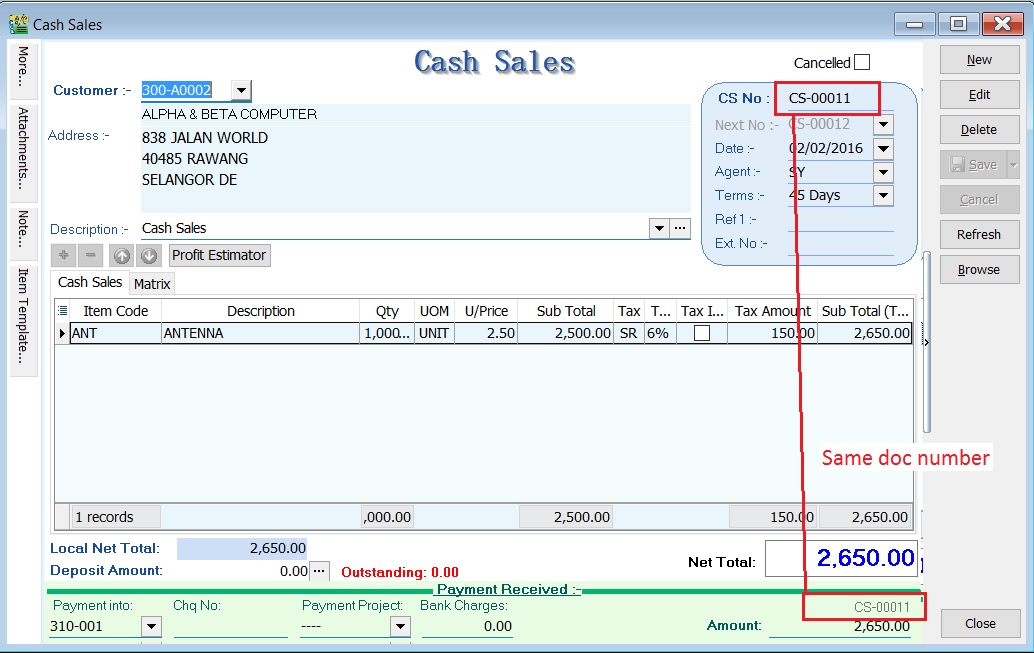

Use Cash Sales No. for Payment Received Use the Cash Sales No. as the official receipt number for cash sales only.

Perform Tax / Local Amount Rounding

1. Choose a method to calculate the tax amount consistently.

2. By default, this is unticked. A. One Cent Difference: Untick (Default)

   Calculated as the total of tax amounts from each detail amount multiplied by GST 6%. Total Tax Amount = 20.00 + 24.62 + 0.73 + 7.39 + 1.94 = 54.68

   | Items | Amount | Tax | Tax Amount | Total |

   |--------|--------|-----|------------|--------| | Item 1 | 333.33 | SR | 20.00 | 353.33 | | Item 2 | 410.37 | SR | 24.62 | 434.99 | | Item 3 | 12.13 | SR | 0.73 | 12.86 | | Item 4 | 123.15 | SR | 7.39 | 130.54 | | Item 5 | 32.26 | SR | 1.94 | 34.20 | | Total | 911.24 | | 54.68 | 965.92 |

B. One Cent Difference: Tick Based on the total document amount multiplied by GST 6%. Total Tax Amount based on itemized = 20.00 + 24.62 + 0.73 + 7.39 + 1.94 = 54.68 Total Tax Amount based on total amount = 911.24 x 6% = 54.67 Difference = 54.68 - 54.67 = 0.01 Therefore, the system will perform an auto rounding mechanism on the largest value (i.e., item 2 = 24.62 - 0.01 = 24.61).

Items	Amount	Tax	Tax Amount	Total
Item 1	333.33	SR	20.00	353.33
Item 2	410.37	SR	24.61	434.98
Item 3	12.13	SR	0.73	12.86
Item 4	123.15	SR	7.39	130.54
Item 5	32.26	SR	1.94	34.20
Total	911.24		54.67	965.91

5 Cents Rounding (Sales Invoice) This option will automatically insert an item code RTN5Cents to adjust the total invoice amount if the total amount is not in simple rounding.

5 Cents Rounding (Cash Sales) This option will automatically insert an item code RTN5Cents to adjust the total cash sales amount if the total amount is not in simple rounding.

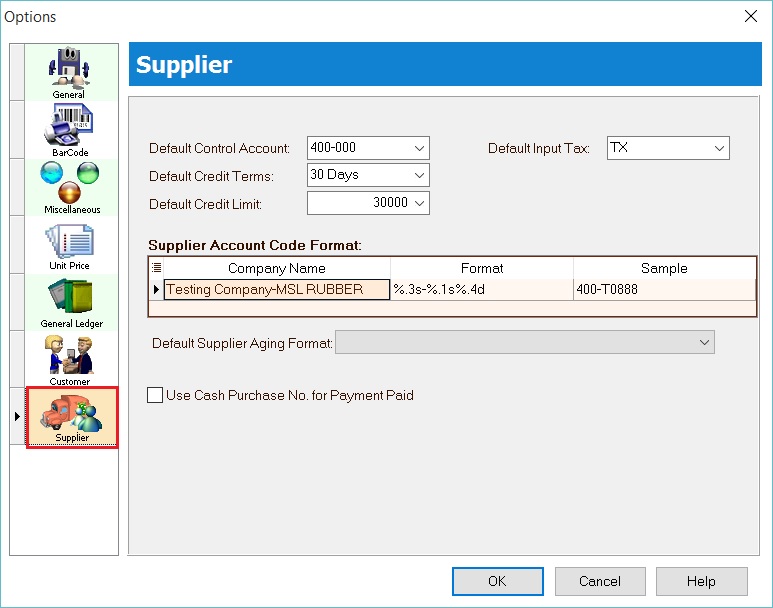

Supplier

Supplier - click to expand

• It is important to define the Supplier settings in a new database.

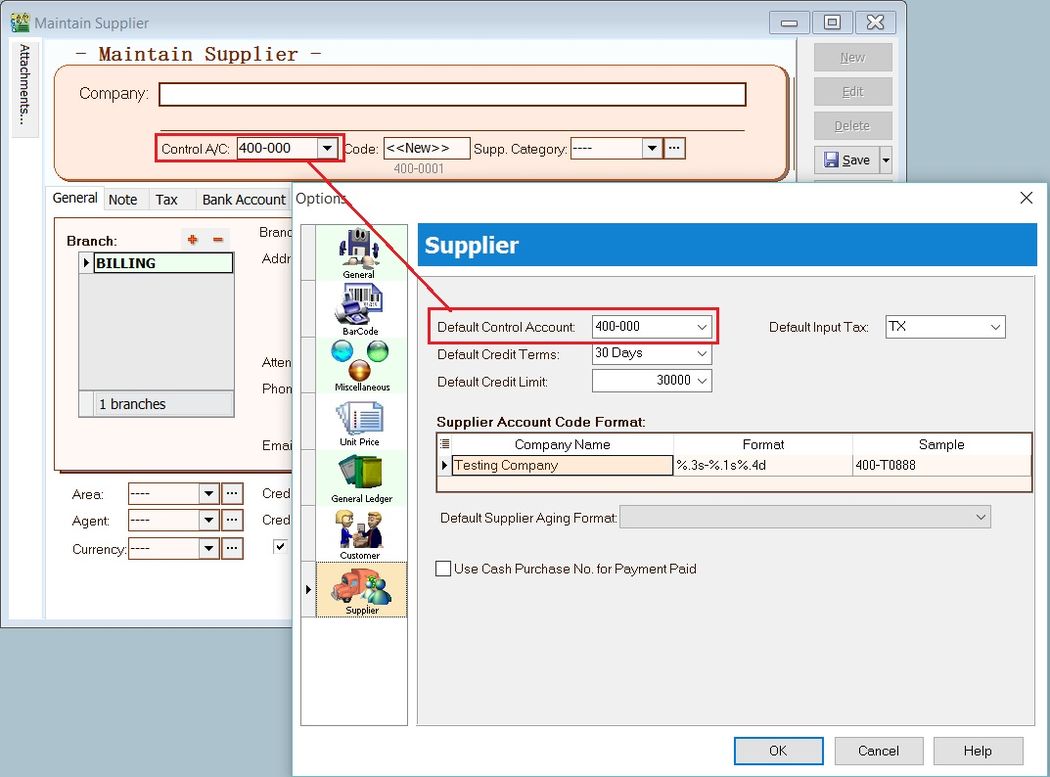

Default Control Account The default control account used when creating a new supplier in Maintain Supplier.

Default Credit Terms The default credit terms used when creating a new supplier in Maintain Supplier.

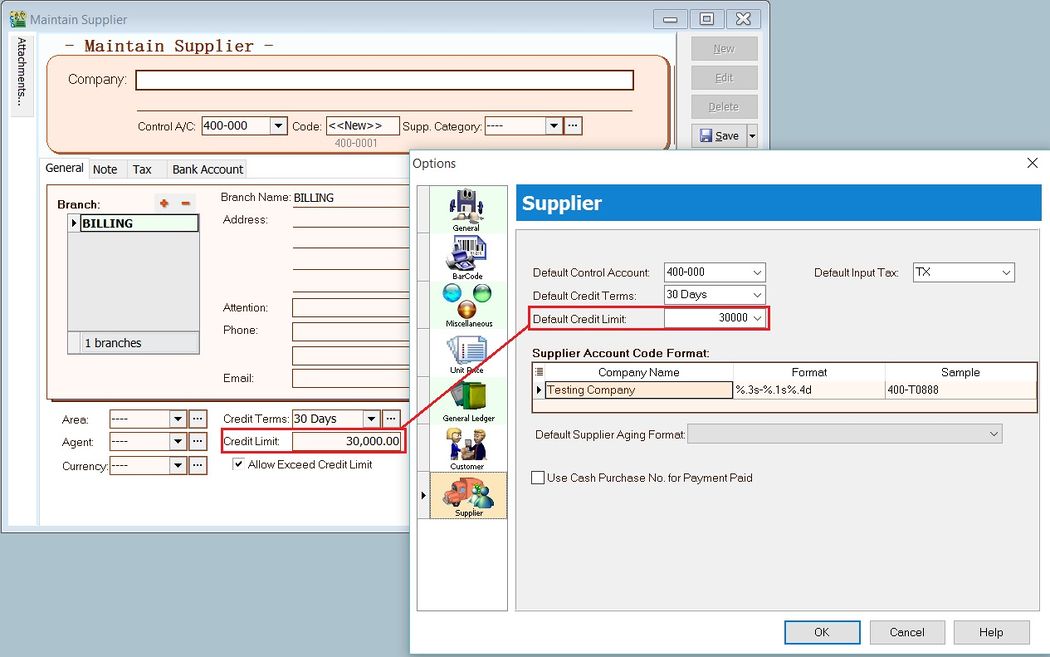

Default Credit Limit The default credit limit value used when creating a new supplier in Maintain Supplier.

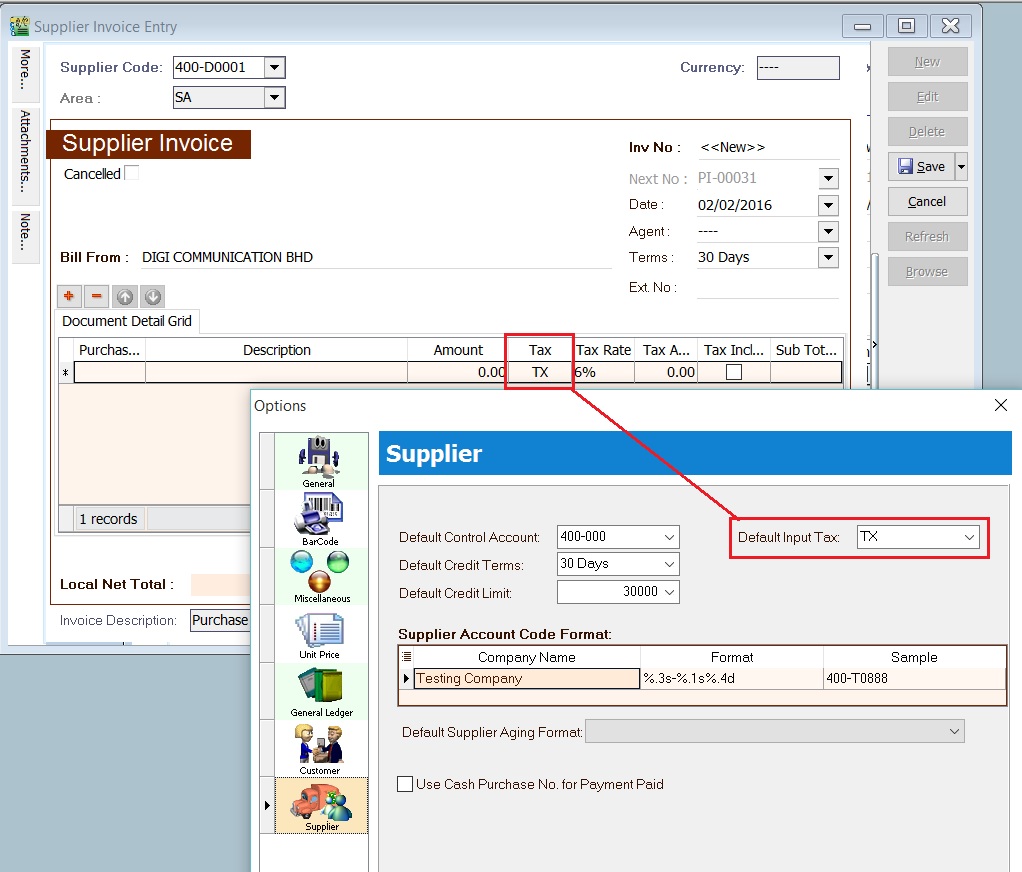

Default Input Tax The default input tax code used when creating a new supplier or purchase document entry (e.g., Supplier Invoice, Supplier Debit Note, etc.).

Supplier Account Code Format

1. Define the supplier code format.
2. Format explanation:

Ref	Code Format	Explanation
A	%.3s-	First number of digits from Supplier Control Account code.
B	%.1s	First number of characters from Supplier Name.
C	%.4d	Sequence running number.

Example 1:

1. Supplier Control Account = 400-000

2. Supplier Name = ALI BABA SDN BHD

   Code Format	Result
   %.3s-	400-
   %.1s	A
   %.4d	0001

3. Supplier Code = 400-A0001

Example 2:

1. Supplier Control Account = 4001-0000

2. Supplier Name = ALI BABA SDN BHD

   Code Format	Result
   %.4s/	4001/
   %.2s	AL
   %.2d	01

3. Supplier Code = 4001-AL01

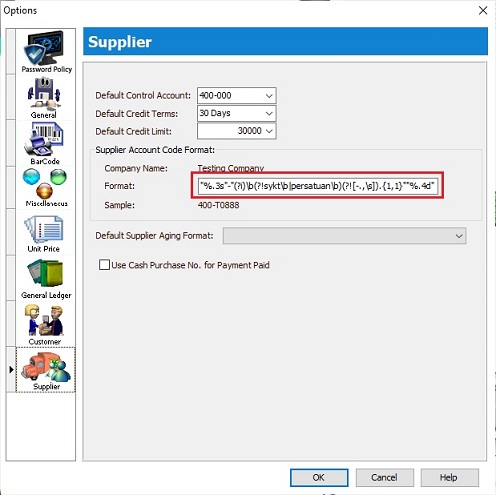

Exceptional Supplier Code Format (Regular Expression)

1. Copy and paste the regular expression line below into the Supplier Format field (see the screenshot below).

      "%.3s"-"(?i)\b(?!sykt\b|persatuan\b)(?![-.,\s]).{1,1}""%.4d"

Example 1:

1. Supplier Name: SYKT TAN & SON
2. Keyword excluded: sykt (non-case sensitive)
3. Supplier Code = 400-T0001

Example 2:

1. Supplier Name: PERSATUAN BOLA SEPAK
2. Keyword excluded: persatuan (non-case sensitive)
3. Supplier Code = 400-B0001

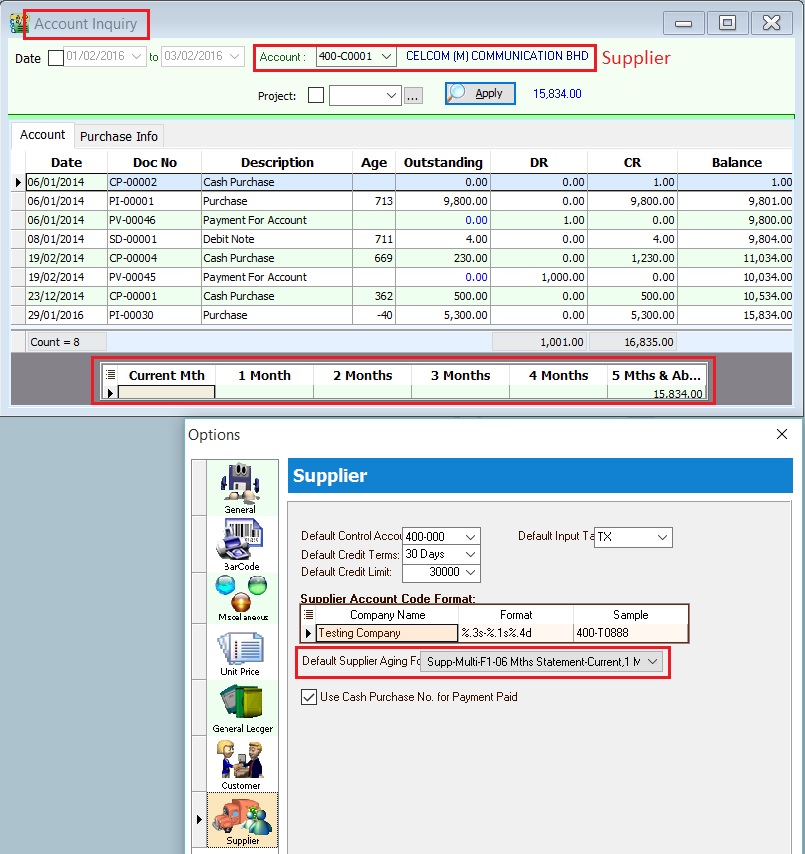

Default Supplier Aging Format

1. Set a default supplier aging format to show the aging result at Inquiry > Account Inquiry (Supplier).
2. Supplier aging format list:

• Supp-Multi-F1-06 Mths Statement-Current,1 Mth,...
• Supp-Multi-F2-06 Mths Statement-Current,1 Mth,...
• Supp-Multi-F1-12 Mths Statement-Current,1 Mth,...
• Supp-Multi-F2-12 Mths Statement-Current,1 Mth,...

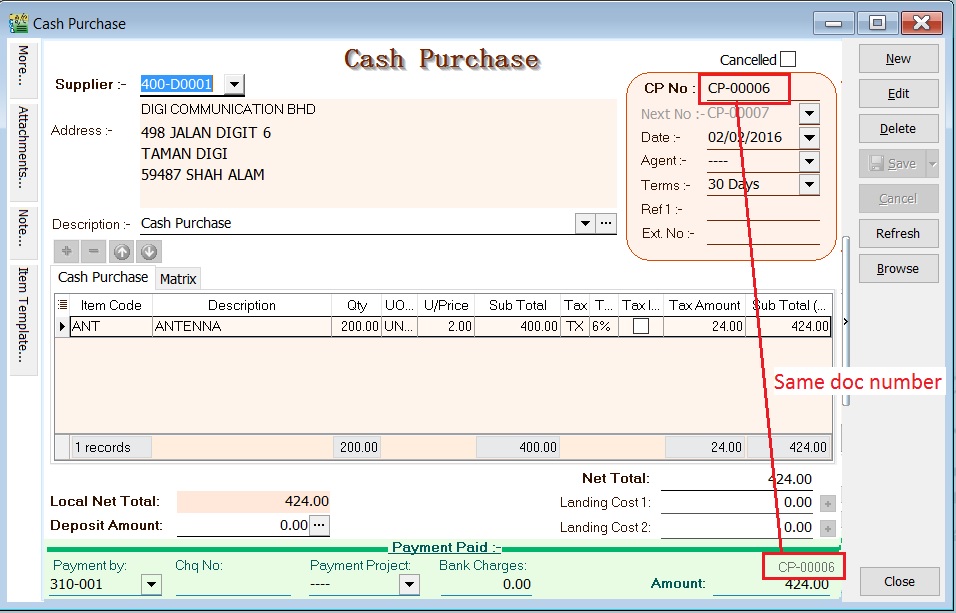

Use Cash Purchase No. for Payment Paid Use the Cash Purchase No. as the payment voucher number for cash purchase only.

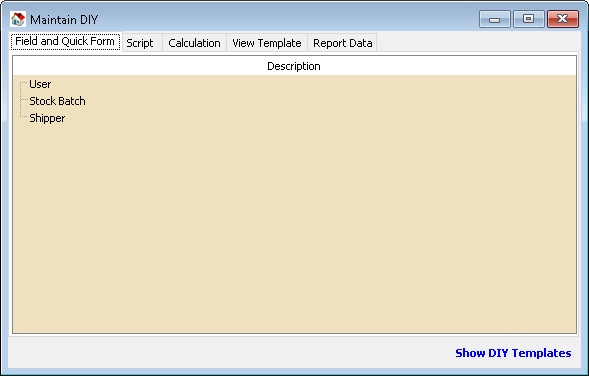

Maintain DIY

Menu: Tools > DIY > Maintain DIY...

This additional module includes DIY Fields and the DIY Script Module.

Function	Description
Field and Quick Form	Users can self-create new User Defined Field(s) and design the layout.

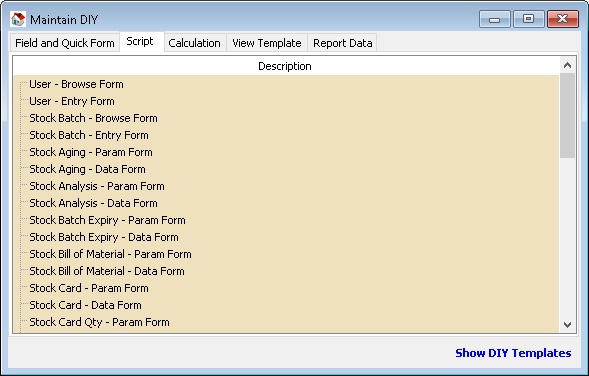

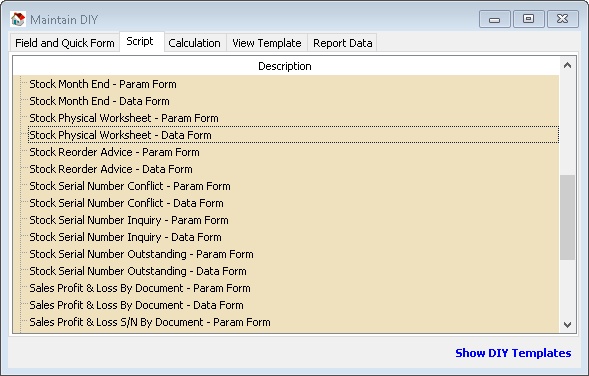

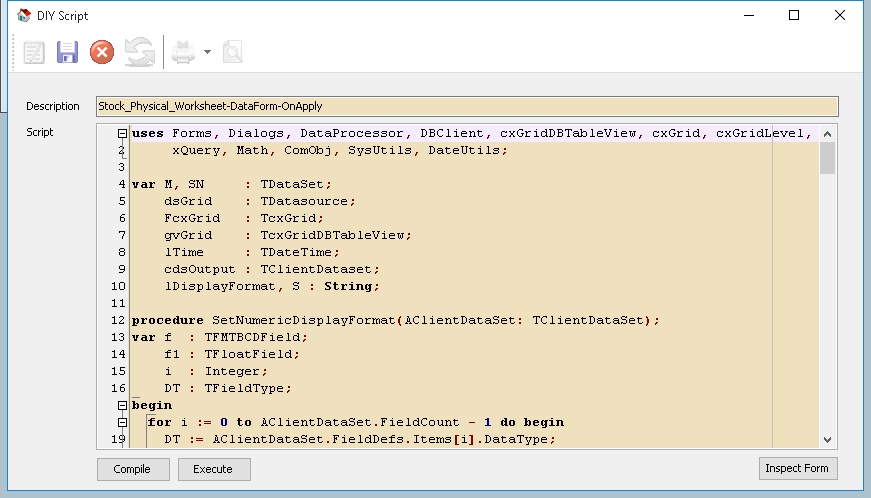

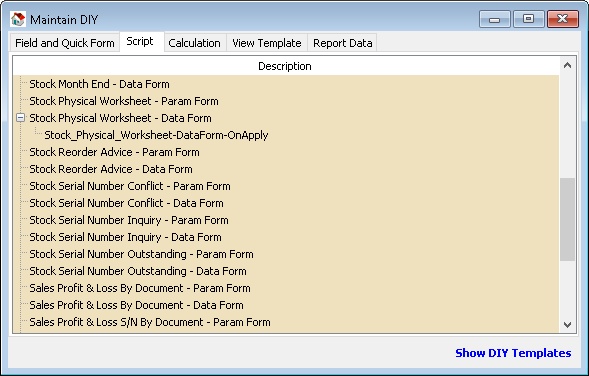

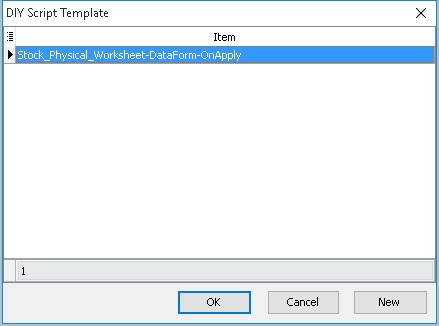

Script	Customize the application.
Calculation	Override the built-in calculation (SQL Payroll ONLY).
View Template	For advanced Form Mode.
Report Data	Deprecated.

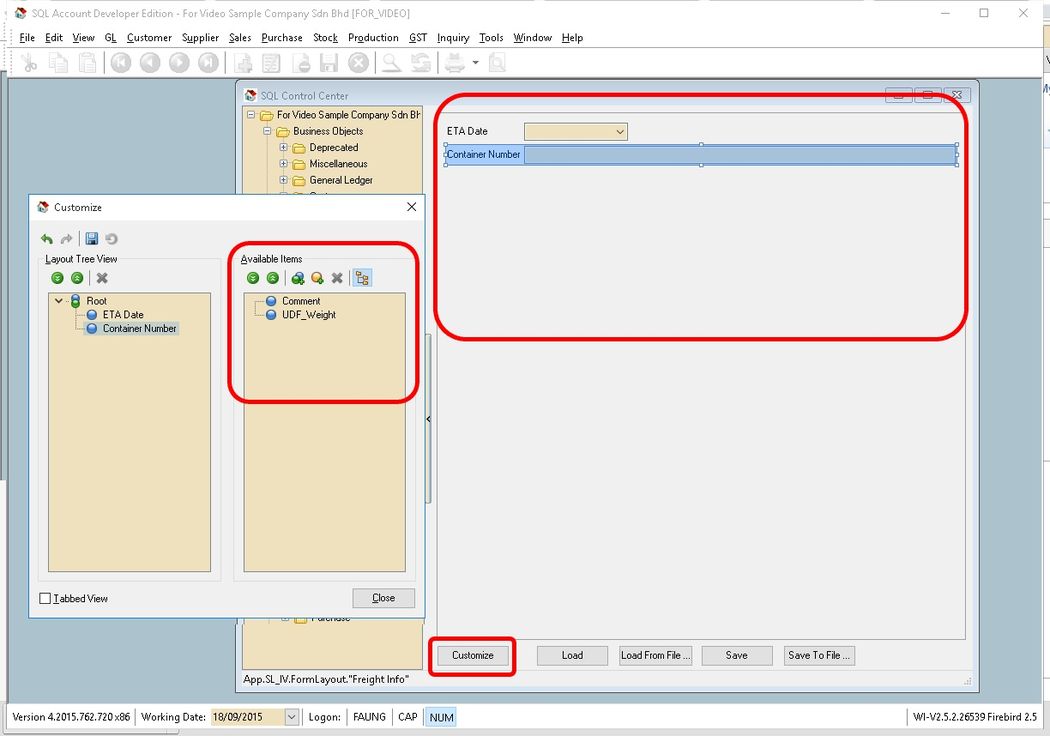

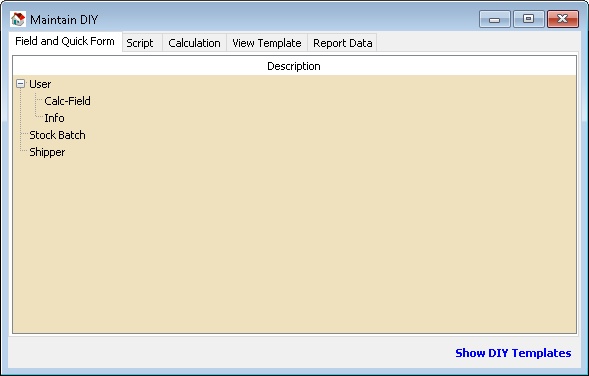

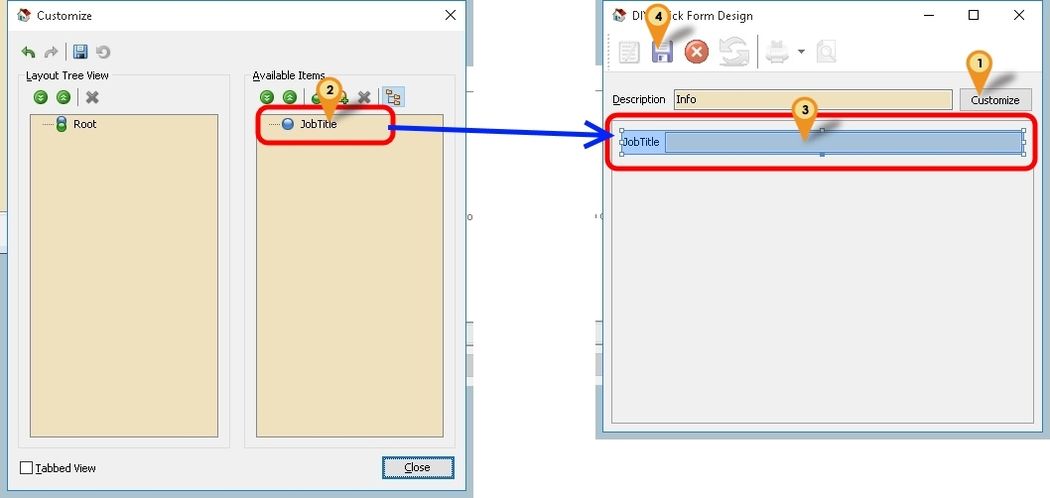

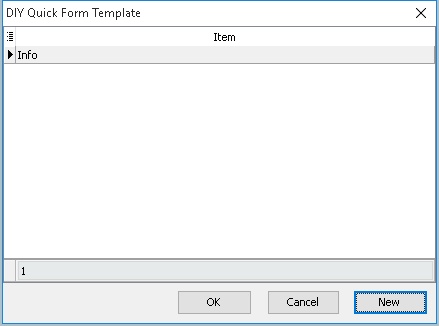

Field and Quick Form

The following example demonstrates these actions:

• Create UDF_JobTitle in Maintain User.
• Create a New Form in Maintain User.

1. Right-click on User.



2. Select New Field.



3. Click the New button.

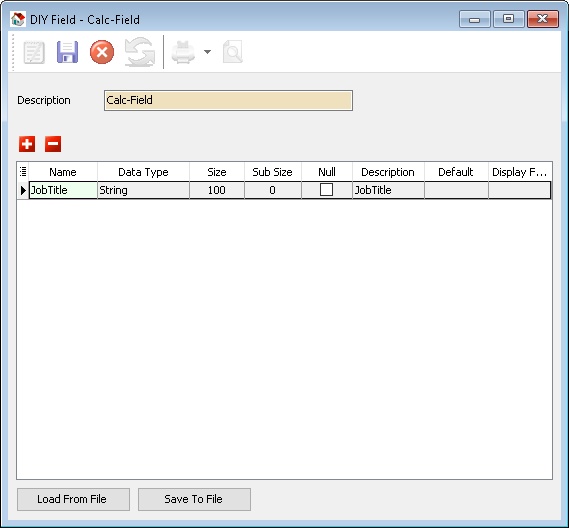

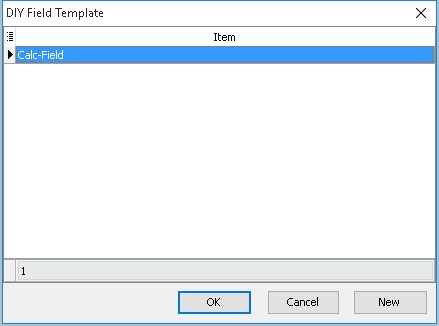

4. Enter a description (e.g., Calc-Field) in the Description field (Alphanumeric only, no spaces).

5. Click the + button to add a new UDF Field and enter/select the options as shown in the image above.

6. Click Save (the Blue Disc icon) when finished.

7. Close the window.

   • Available Data Field Types:

     Field Type	Definition
     String	Text data of a fixed length (up to 8192 bytes).
     Unicode String	A field representing a Unicode (16 bits per character) string.
     Boolean	A Boolean value.
     Integer	Whole numbers in the range of long integers (32 bits).
     Currency	Currency values with the same range as the Real data type.
     Bcd	Real numbers with a fixed number of digits after the decimal point.
     Date	A date value.
     Blob	Binary data with no size limit (BLOB stands for binary large object). The theoretical maximum limit is 2 GB.
     Memo	Text of arbitrary length.

     warning

     • Only String data can increase the field size, so plan properly before adding the field.
     • Users cannot change from one data type to another once saved.
     • Avoid creating too many UDF fields as it will reduce system performance and take longer to save data entries.



8. Select the item just created (e.g., Calc-Field).

9. Click the OK button.

10. Right-click on User again.



11. Select New Quick Form.



12. Click the New button.



13. Enter a description to be shown in Maintain User (e.g., Info) in the Description field (Alphanumeric only, no spaces).

14. Click the Customize button (Icon 1).

15. Drag the UDF Field from Available Items (Icon 2) to the empty space (Icon 3).

16. Click the Close button in the Customize window.

17. Click Save (Icon 4) when finished.

18. Close the window.



19. Select the item just created (e.g., Info).

20. Click the OK button.



21. Done.

Script

This is an additional module (DIY Script Module) that enables users to override or customize the SQL system. The language used is Pascal.

• Available forms to customize:

Form Type	Example	Description
Browse Form		Script runs/executes when in the Browse window form.
Entry Form		Script runs/executes when in the Data Entry window form.
Param Form		Script runs/executes when at Icon 1 (seldom used).
Data Form		Script runs/executes when at Icon 2 (frequently used).

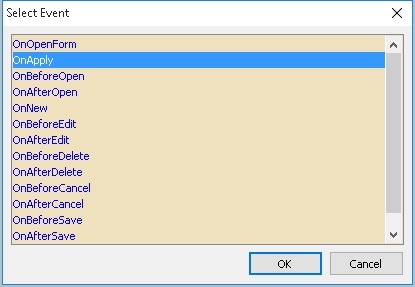

• Available Actions/Events:

Action/Event	Description
OnOpenForm	The script triggers on opening the form (e.g., on opening the Sales Invoice form).
OnApply	The script triggers after clicking the Apply button (for Data Form).
OnBeforeOpen	The script triggers before the form opens.
OnAfterOpen	The script triggers after the form opens.
OnNew	The script triggers after the built-in New button action executes.
OnBeforeEdit	The script triggers before the built-in Edit button action executes.
OnAfterEdit	The script triggers after the built-in Edit button action executes.
OnBeforeDelete	The script triggers before the built-in Delete button action executes.
OnAfterDelete	The script triggers after the built-in Delete button action executes.
OnBeforeCancel	The script triggers before the built-in Cancel button action executes.
OnAfterCancel	The script triggers after the built-in Cancel button action executes.
OnBeforeSave	The script triggers before the built-in Save button action executes.
OnAfterSave	The script triggers after the built-in Save button action executes.

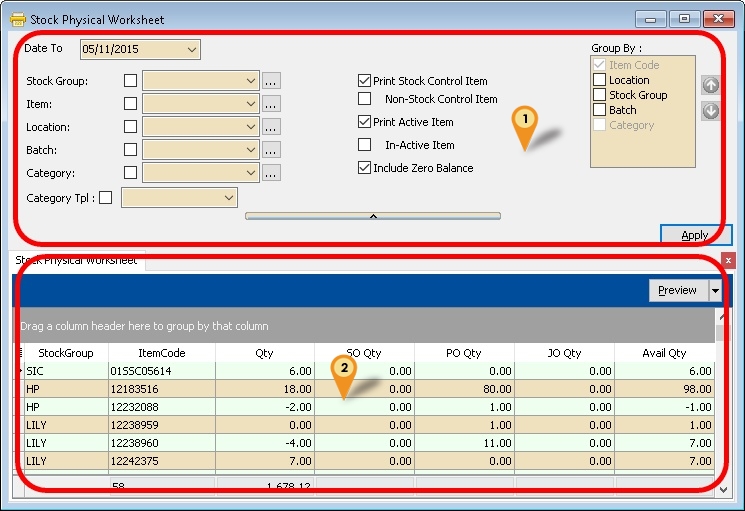

Example 1 - List Serial Number in Stock Physical Worksheet

The following example demonstrates these actions:

• After applying the Stock Physical Worksheet, a new tab will be automatically created.
• List all serial numbers in the new grid.

Level: Advanced:

1. Right-click on Stock Physical Worksheet - Data Form.



2. Select New Script.



3. Select OnApply.

4. Click the OK button.



5. Click the New button.



6. Enter a description (e.g., Stock_Physical_Worksheet-DataForm-OnApply) in the Description field (Alphanumeric only, no spaces).

7. Copy the script below and paste it into the Script field.

   DataForm-OnApply Script


   uses Forms, Dialogs, DataProcessor, DBClient, cxGridDBTableView, cxGrid, cxGridLevel,
      xQuery, Math, ComObj, SysUtils, DateUtils;

   var M, SN     : TDataSet;
      dsGrid    : TDatasource;
      FcxGrid   : TcxGrid;
      gvGrid    : TcxGridDBTableView;
      lTime     : TDateTime;
      cdsOutput : TClientDataset;
      lDisplayFormat, S : String;

   procedure SetNumericDisplayFormat(AClientDataSet: TClientDataSet);
   var f  : TFMTBCDField;
      f1 : TFloatField;
      i  : Integer;
      DT : TFieldType;
   begin
   for i := 0 to AClientDataSet.FieldCount - 1 do begin
      DT := AClientDataSet.FieldDefs.Items[i].DataType;
      if DT = ftFMTBcd then begin
         f := TFMTBCDField(AClientDataSet.Fields.Fields[i]);
         if not (f = nil) then f.DisplayFormat := lDisplayFormat;
      end;
      if DT = ftFloat then begin
         f1 := TFloatField(AClientDataSet.Fields.Fields[i]);
         if not (f1 = nil) then f1.DisplayFormat := lDisplayFormat;
      end;
   end;
   end;

   procedure PrepareNewTab;
   begin
   FcxGrid.RootLevelOptions.DetailTabsPosition := dtpTop;
   gvGrid := FcxGrid.CreateView('TcxGridDBTableView') as TcxGridDBTableView;
   with FcxGrid.Levels.Add do begin
      Caption  := 'Calc';
      GridView := TcxCustomGridView(gvGrid);
      Active   := True;
   end;

   with gvGrid do begin
      Name                             := 'Restricted_1';
      OptionsCustomize.ColumnFiltering := True;
      OptionsView.ColumnAutoWidth      := False;
      OptionsView.Footer               := True;
      OptionsView.GroupByBox           := False;
      OptionsBehavior.IncSearch        := True;
      DataController.DataSource        := dsGrid;
      OptionsData.Editing              := False;
   end;
   end;

   procedure TuneGrid;
   var i : integer;
      DT : TFieldType;
   begin
   SetNumericDisplayFormat(cdsOutput);
   with gvGrid.DataController do begin
      DataSource := dsGrid;
      CreateAllItems(False);
   end;
   with gvGrid do begin
      //Hide Columns
      //GetColumnByFieldName('DtlKey').Visible          := False;
      //Rename Columns Caption
      GetColumnByFieldName('ItemCode').Caption        :='Item Code';
   end;

   with gvGrid.DataController.Summary do begin
      BeginUpdate;
      try
         with TcxGridDBTableSummaryItem(FooterSummaryItems.Add) do begin
         Column   := gvGrid.Columns[0];
         Position := spFooter;
         Kind     := skCount;
         Format   := 'Count = #';
         end;
         for i := 0 to cdsOutput.FieldDefs.Count-1 do begin
         DT := cdsOutput.FieldDefs.Items[i].DataType;
         if (DT = ftFMTBcd) or (DT = ftFloat) then begin
            with TcxGridDBTableSummaryItem(FooterSummaryItems.Add) do begin
               Column   := gvGrid.Columns[i];
               Position := spFooter;
               Kind     := skSum;
               Format   := lDisplayFormat;
            end;
         end;
         end;
         finally
         EndUpdate;
      end;
   end;
   gvGrid.ApplyBestFit(nil, False, False);
   end;

   procedure CreateXMLTable;
   begin
   if Assigned(cdsOutput) then
      cdsOutput.Free;
   cdsOutput := TClientDataSet.Create(FcxGrid);
   cdsOutput.FieldDefs.Assign(SN.FieldDefs);
   cdsOutput.CreateDataSet;
   dsGrid.DataSet := cdsOutput;
   end;

   procedure AppendData;
   var i : integer;
   begin
   M.First;
   while not M.Eof do begin
      SN.DisableControls;
      SN.First;
      While not SN.Eof do begin
         cdsOutput.Append;
         for i:=0 to SN.FieldDefs.Count-1 do
         cdsOutput.FindField(SN.FieldDefs.Items[i].Name).Value := SN.FindField(SN.FieldDefs.Items[i].Name).Value;
         cdsOutput.Post;
         SN.Next;
      end;
      SN.EnableControls;
      M.Next;
   end;
   end;

   begin
   M       := Self_DataProcessor.GetDataSetByName('Main');
   SN      := Self_DataProcessor.GetDataSetByName('SerialNumber');
   FcxGrid := TcxGrid(Self.FindComponent('cxGrid1'));
   dsGrid  := TDataSource.Create(M);

   lTime := now;
   s := 'Stock Physical Worksheet';
   lDisplayFormat := '#,0.00;-#,0.00;-';


   try
      Self.Caption := s + '- Prepare Tab';
      PrepareNewTab;
      Self.Caption := s + '- Prepare XML';
      CreateXMLTable;
      Self.Caption := s + '- Append Data';
      AppendData;
      Self.Caption := s + '- Tuning Grid';
      TuneGrid;
   finally

      lTime := Now - lTime;
      Self.Caption := Format(s + ' - [Elapsed Time: %s ]',[FormatDateTime ('hh:nn:ss:zzz', lTime)]);
   end;
   end.


8. Click Save (the Blue Disc icon).

9. Close the window.



10. Select the item just created (e.g., Stock_Physical_Worksheet-DataForm-OnApply).

11. Click the OK button.



12. Click Stock > Print Stock Physical Worksheet > Apply.

Example 2 - Set Default Filtering for Sales

The following example demonstrates these actions:

• Filter by Agent in Sales Profit & Loss By Document.
• Disable selection for Agent.

Level: Basic:

1. Right-click on Sales Profit & Loss By Document - Param Form.

2. Select New Script.

3. Select OnOpenForm.

4. Click the OK button.

5. Click the New button.

6. Enter a description (e.g., SL-PnL-ParamForm-OnOpen) in the Description field (Alphanumeric only, no spaces).

7. Copy the script below and paste it into the Script field.

   Param Form - OnOpenForm Script


   uses SysUtils, Dialogs, Forms;

   var C, D : TControl;
      L: TStringList;
   begin
   C := Self.FindChildControl('edAgent_Panel') as TWinControl;
   L := TStringList.Create;
   try
      if C <> nil then C.Enabled := False; // Disable Selection
      C := TWinControl(C).FindChildControl('edAgent_Edit') as TWinControl;
      L.Add('NF');
      L.Add('LF');
      (C as TControl).SetTextBuf(L.CommaText);//For Multi Records
   //    (C as TControl).SetTextBuf('LF');//For 1 record
   finally
      L.Free;
   end;
   end.


8. Click Save (the Blue Disc icon).

9. Close the window.

10. Select the item just created (e.g., SL-PnL-ParamForm-OnOpen).

11. Click the OK button.

12. Click Sales > Print Profit & Loss By Document....

Example 3 - Drop Down List at Maintain User

The following example demonstrates these actions:

• Create a dropdown list of the Project List in Maintain User for UDF_Project.

Level: Advanced:

1. Right-click on User - Entry Form.

2. Select New Script.

3. Select OnOpenForm.

4. Click the OK button.

5. Click the New button.

6. Enter a description (e.g., UserEntryForm-OnOpen) in the Description field (Alphanumeric only, no spaces).

7. Copy the script below and paste it into the Script field.

   Entry Form - OnOpen Script

   uses Forms, StdCtrls, DBCtrls, Dialogs, ComObj, DBClient;

   Var edProject     : TDBLookupComboBox;
      btnCPassword  : Tbutton;
      M, dsList     : TDataSource;
      lbProject     : TComponent;
      C             : TControl;
      FComServer    : Variant;
      cdsList       : TClientDataset;

   function ComServer: Variant;
   begin
   if FComServer = Null then begin
      FComServer := CreateOleObject('SQLAcc.BizApp');
   end;
   Result := FComServer;
   end;

   procedure GetList;
   var lSQL    : String;
   begin
   FComServer := null;
   cdsList := TClientDataset.Create(C);
   lSQL := 'SELECT Code, Description FROM Project WHERE IsActive=''T'' ';

   try
      cdsList.Data := ComServer.DBManager.Execute(lSQL);
      dsList.Dataset := cdsList;
   finally
      FComServer := null;
   end;
   end;

   begin
   M := TDataSource(Self.FindComponent('dsMain'));
   C := Self.FindChildControl('lbName');
   dsList := TDataSource.Create(C);
   GetList;
   if Assigned(C) then begin
      edProject   := TDBLookupComboBox.Create(C);
      lbProject  := TLabel.Create(C);

      with TLabel(lbProject) do begin
         Parent     := C.Parent;
         Caption    := '&1. Project :';
         Left       := 200;
         Top        := 68;
         FocusControl := edProject;
      end;

      with edProject do begin
         Parent  := C.Parent;
         Top     := 65;
         Left    := 260;
         Width   := 120;
         Name    := 'edProject';
         Datasource     := M;
         ListSource     := dsList;
         DataField      :='UDF_Project';
         DropDownWidth  := 500;
         KeyField       := 'Code';
         ListFieldIndex := 1; //Search By Description
         ListField      := 'Code;Description'; //Show 2 Column
      end;
   end;
   end.


8. Click Save (the Blue Disc icon).

9. Close the window.

10. Select the item just created (e.g., UserEntryForm-OnOpen).

11. Click the OK button.

12. Click Tools > Maintain User....

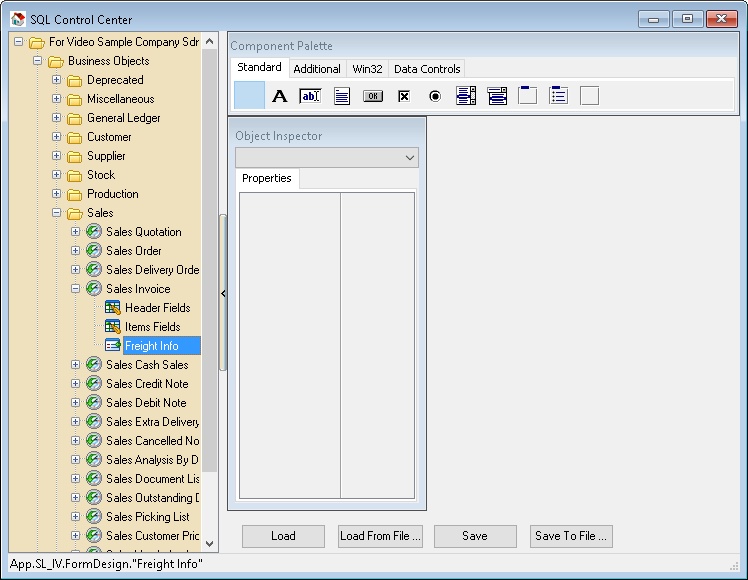

SQL Control Center

Menu: Tools > DIY > SQL Control Center...

Create new field (DIY Fields Module)

DIY Fields

This is a paid module.

This additional module (DIY Fields Module) enables users to self-create new User Defined Field(s).

• Available Data Field Types:

Field Type	Definition
String	Text data of a fixed length (up to 8192 bytes).
Boolean	A Boolean value.
Integer	Whole numbers in the range of long integers (32 bits).
Currency	Currency values with the same range as the Real data type (Max 4 decimal points).
Float	Real numbers with a fixed number of digits after the decimal point.
Date	A date value.
Picture	A picture value.
Memo	Text of arbitrary length.

• For an explanation of each data type, refer to w3schools.

warning

• Avoid using Picture data if possible, as it will cause your database size to increase rapidly.
• Only String data can increase the field size, so plan properly before adding the field.
• Users cannot change from one data type to another once saved.
• Avoid creating too many UDF fields as it will reduce system performance and take longer to save data entries. (Recommended maximum is 30 UDF fields).
• Avoid creating String data with an excessively large size. (Recommended maximum is 200).

• Users can create DIY Fields in either Header Fields or Item Fields.
• Each table has the following interface:

Name	Description
Name	Field name. Alphanumeric only, no spaces.
Data Type	Type of field.
Size	The field size. Only applicable for Float, Integer, and String data types.
Sub Size	The field sub-size (normally the decimal point). Only applicable for the Float data type.
Caption	Field name to be shown in the user interface.
Required	The current field MUST not be empty.
Default Value	Default value to insert on a new record.
Display Format	Set the display format for Float, Currency, and Integer data types.
Load	Reload the script from the database (only for DIY Script).
Load From File	Load script/fields from a text file. Be careful: the system will delete existing fields before loading.
Save	Save the current script/field. Do not delete, rename, and insert at the same time (only for DIY Fields).
Save To File	Save the current script/fields to a text file.
+ Button	Add a new field.
- Button	Delete the selected field.

Header Fields

The following example is for Sales Invoice:

Add New Fields:

1. In the left panel, look for Sales Invoice > Header Fields.
2. Click the + button on top to add new fields as shown in the image above.
3. Click the Save button.

Design Layout

There are 2 ways to create the layout for new fields added.

Advanced Form Design

This mode is only for users who know how to use Delphi.

• Pros

• Freely adjust and place components.

• Cons

• Not easy to design.
• Does not support Date and Picture data types.

1. Select New Advanced Form Design.



2. Enter the name (e.g., Freight Info); this will be shown in the Sales Invoice data entry.

3. Click OK.

4. Click Freight Info (the name created in Step 3 above) in the left panel.





   • This Standard component is just for fixed labeling or decoration.

   • Details for each button can be found at delphibasics.



   • This Data Controls component is used for variable data that can be used in data entry.

   • Below are the details for each button (from left):

   Component	Purpose
   DBText	Data-aware label that can display a field from a currently active record.
   DBEdit	Data-aware edit box that can display or edit a field from a currently active record.
   DBMemo	Data-aware memo box that can display or edit text BLOB data from a currently active record.
   DBImage	Data-aware image box that can display, cut, or paste bitmapped BLOB images to and from a currently active record.
   DBListBox	Data-aware list box that can display values from a column in a table.
   DBCheckBox	Data-aware check box that can display or edit a Boolean data field from a currently active record.
   DBRichEdit	Data-aware Rich Text Editor that can display or edit text BLOB data from a currently active record.
   cxDBSpinEdit	Data-aware edit box that can display or edit Integer or Float data from a currently active record.

   Normally we only use

   Standard tab components:

   • Label: For labeling each field. Data Controls tab components:
   • DBEdit: For String data.
   • DBRichEdit: For Memo data.
   • cxDBSpinEdit: For Currency, Float, or Integer data.

5. Click the Standard tab and select the Label button to place it on the right panel.

6. In the Object Inspector, look for:

   • Caption: Set this to the caption you like (e.g., Container Number).
   • Font: Set the Size to 12 or any size you prefer.



7. Click the Data Controls tab and select the DBEdit button to place it on the right panel.

8. In the Object Inspector, look for:

   • DataField: Set this to the UDF field name (normally UDF_FieldName, e.g., UDF_ContainerNo).
   • Font: Set the Size to 12 or any size you prefer.



9. Repeat Step 6 through Step 8 for the rest of the UDF fields.

10. Click the Save button when finished.

    • Quick Form Design (Recommended)

    • This mode is for users who do not know how to use Delphi.

    Pros: Easy to design.

    Cons: Unable to freely adjust and place components. Does not support Rich Text Editor.

11. Select New Quick Form Design.



12. Enter the name (e.g., Freight Info); this will be shown in the Sales Invoice data entry.

13. Click OK.

14. Click Freight Info (the name created in Step 3 above) in the left panel.



15. Click the Customize button.

16. Drag the UDF Field from the Available Item dialog box and drop it onto the right panel.

17. Repeat Step 7 for the rest of the UDF fields.

18. Click the Save button when finished.

Item Fields No layout design is needed for Item Field UDFs. You can drag all UDF fields from the Field Chooser in the data entry.

• Add New Fields

1. In the left panel, look for Sales Invoice > Item Fields.

2. Click the + button on top to add new fields as shown in the image above.

3. Click the Save button.



4. Drag the UDF field from the Customization dialog.

5. Drop it into the column you want it to be shown in (e.g., between the Description column and the Qty column).

DIY Authenticator

Tools > DIY > DIY Authenticator...

This function is used to lock the Maintain DIY Module so that only authorized persons are allowed to access it.

Requirements

• Mobile phone with a camera.
• QR Reader application.
• Google Authenticator.

Setup Authenticator

1. Enter an account name or use the default name. This will be shown in the Google Authenticator list.



2. Enter an Access ID. This is used by the system to pair with Google Authenticator.



3. Select the device you want to use for scanning.



4. Use Google Authenticator to scan the QR barcode.

5. Enter the code generated by Google Authenticator.

6. Click Pair.



7. The system will prompt the dialog below if pairing is successful.



Each time a user clicks Maintain DIY, the dialog below will prompt for a Verification Code.

Remove Locking

1. Click Tools > DIY > DIY Authenticator....

2. Enter the Verification Code.



3. The system will prompt the options below.

4. Click Remove Access ID.



   Option Name	Properties
   Remove Access ID	Permanently unlock Maintain DIY.
   Recover Access ID	Retrieve the current Access ID.
   Reset Access ID	Recreate a new Access ID.

5. The system will prompt the dialog below if successfully unlocked.

warning

Ensure you keep several copies of the QR code, as once lost, we are unable to retrieve the Access ID.

More customisations at SQL Control Center
