Reports

Create and design X-Pos report templates in SQL Account. When a terminal synchronizes, the latest templates are automatically sent to X-Pos as part of its metadata.

Preview Report Templates

The print sections in SQL Account let you preview how each report will appear in X-Pos Terminal.

Enter sample values into the available datasets to create a mock transaction, then preview the report. These values are used only to test the report layout and do not create actual transactions.

After confirming the report design, synchronize the terminal metadata to send the latest template to X-Pos.

Preview Values Are Not Calculated Automatically

The report preview is intended only for visualizing the report layout. Discounts, taxes, totals, rounding, and other values are displayed exactly as entered.

Some information is retrieved automatically when you select an item, UOM, payment method, user, or location. Other calculations occur only when a formula or calculation has been configured in the report designer.

tip

Use sample values that represent real scenarios, such as long item descriptions, multiple payments, discounts, taxes, and large amounts. This helps identify layout issues before the template is used at the terminal.

Print Sales Receipt

Use this section to preview a completed sales receipt. Enter sample values into the Main, Document_Detail, and Payment datasets to simulate a completed sale.

How to Print Sales Receipt

1. From the main menu, go to POS → Print Sales Receipt.

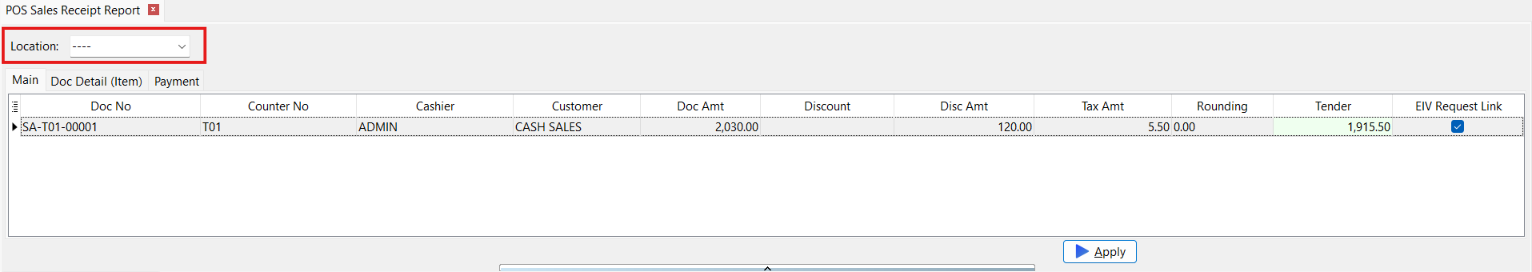

2. Select a Location. The default location code is ----.

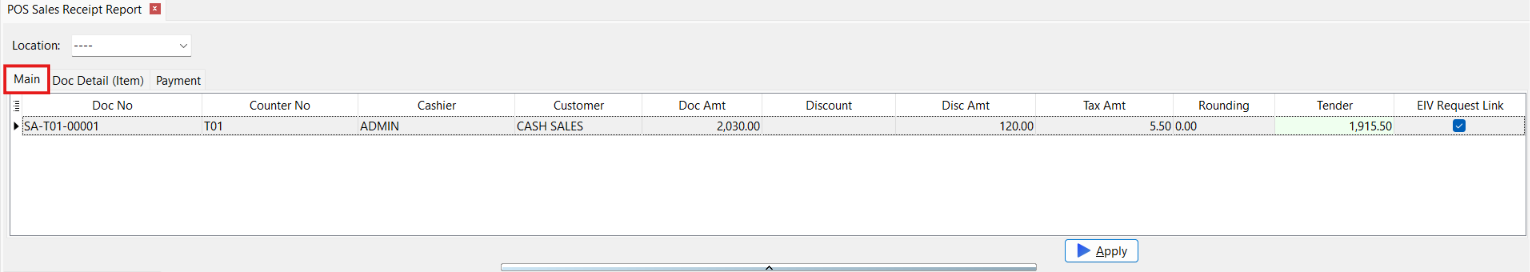

3. Enter sample transaction information in the Main tab.

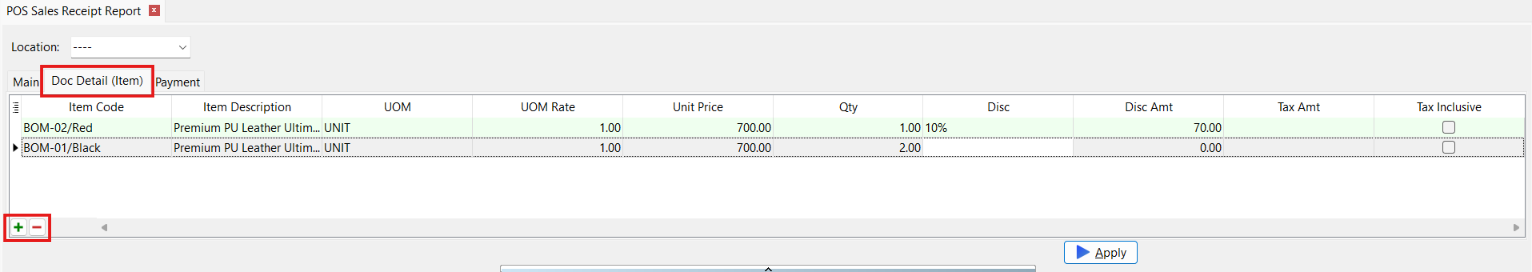

4. Add one or more item lines in the DocDetail tab.

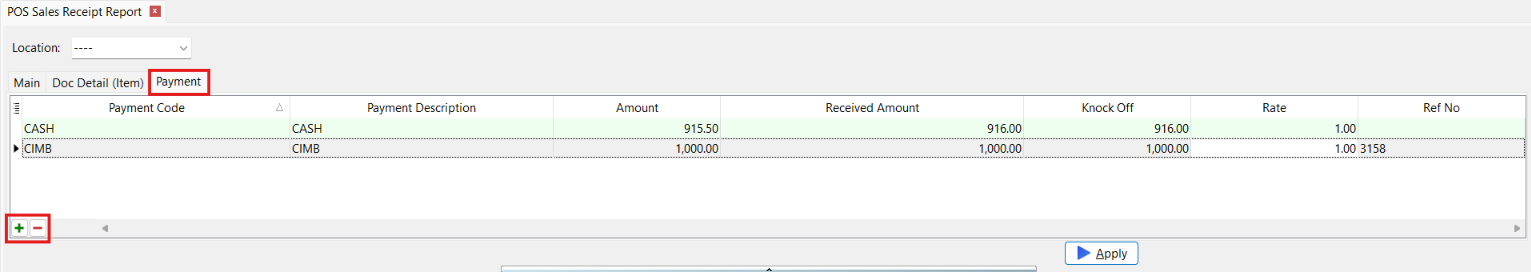

5. Add one or more payment records in the Payment tab.

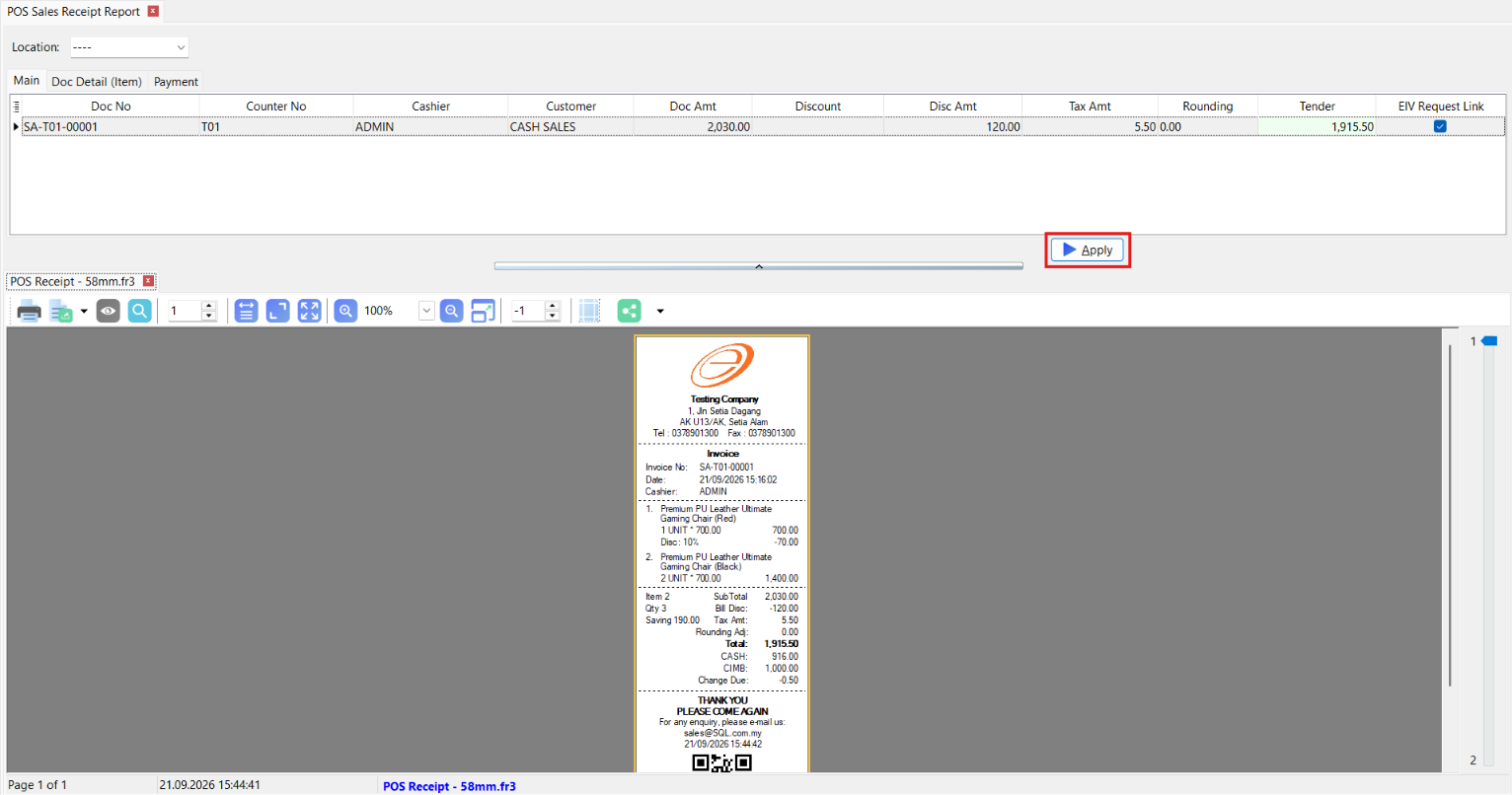

6. Click Apply to preview how the receipt will appear in X-Pos Terminal.



Available Datasets

Dataset	Description
Main	Contains one record with the receipt header, transaction totals, and status information.
Document_Detail	Contains one or more item-line records. It is displayed as DocDetail in the preview window.
Payment	Contains one or more payment records.

The report can use selected location code to retrieve information configured in Maintain Location.

Main

Field	Description
DocNo	Sales document number.
DocDateTime	Date and time of the transaction.
DocType	Sales document type.
Cashier	Cashier or user who processed the transaction. The current user is selected by default.
CustID	Customer identifier assigned to the transaction.
Promoter	Promoter assigned to the transaction.
CounterNo	Counter number from which the transaction was processed.
PriceTag	Price tag used to retrieve item prices and discounts in Document_Detail.
DocAmt	Final document amount entered for the preview.
Disc	Overall bill-discount value or expression.
DiscAmt	Total bill-discount amount entered for the preview.
TaxAmt	Total tax amount entered for the preview.
Rounding	Rounding adjustment entered for the preview.
Tender	Amount tendered by the customer.
VoidAt	Date and time at which the transaction was voided.
VoidBy	User who voided the transaction.
VoidDesc	Description or remark recorded for the voided transaction.
Remark	General transaction remark.
Reason	Reason recorded for the transaction or related action.
RefDoc	Reference document number.
EIVRequestLink	E-Invoice request value used to preview a link or QR code. Checked to generate a sample value.

note

The generated EIVRequestLink is for previewing the report layout only. It does not create an actual E-Invoice request.

Document_Detail

Field	Description
ItemCode	Stock-item code. Selecting an item retrieves its item information and default pricing.
ItemDesc	Item description retrieved from the selected stock item.
UOM	Unit of measurement. The default sales UOM is selected automatically.
UOMRate	Conversion rate for the selected UOM. The default value is 1.
UnitPrice	Selling price retrieved using the selected item, UOM, quantity, and price tag.
BatchNo	Batch number assigned to the item.
SerialNumber	Serial number assigned to the item.
Group	Stock group retrieved from the selected item.
Remark2	Additional description retrieved from Description 2 of the selected item.
Qty	Item quantity. The default value is 1.
Disc	Item-discount value or expression. An applicable price discount may be retrieved automatically.
DiscAmt	Item-discount amount entered for the preview.
TaxId	Tax code applied to the item line.
TaxRate	Tax rate entered for the item line.
TaxAmt	Tax amount entered for the item line.
TaxInclusive	Indicates whether tax is included in the item price. It is cleared by default.
DiscountedPrice	Item price after discount, entered for the preview.
FinalPrice	Final item price entered for the preview.

Automatic Item Information

Selecting an ItemCode retrieves the ItemDesc, Remark2, Group, UOM, UOMRate, UnitPrice, and Disc.

Changing the UOM refreshes its rate and selling price.

Payment

Field	Description
PMCode	Payment-method code. Selecting a payment method retrieves its description.
PMDesc	Payment-method description retrieved from the selected PMCode.
DateTime	Date and time at which the payment was recorded.
Amount	Payment amount in the selected payment currency.
ReceivedAmount	Amount received from the customer.
KnockOff	Payment amount applied against the sales document.
Rate	Currency exchange rate used for the payment.
RefNo	Payment reference number.

Print Sales Hold Bill

Use this section to preview a hold-bill receipt. Enter sample values into the Main and Document_Detail datasets to simulate a held transaction.

A hold bill has not been completed, so it does not contain a Payment dataset.

How to Print Sales Hold Bill

1. From the main menu, go to POS → Print Sales Hold Bill.

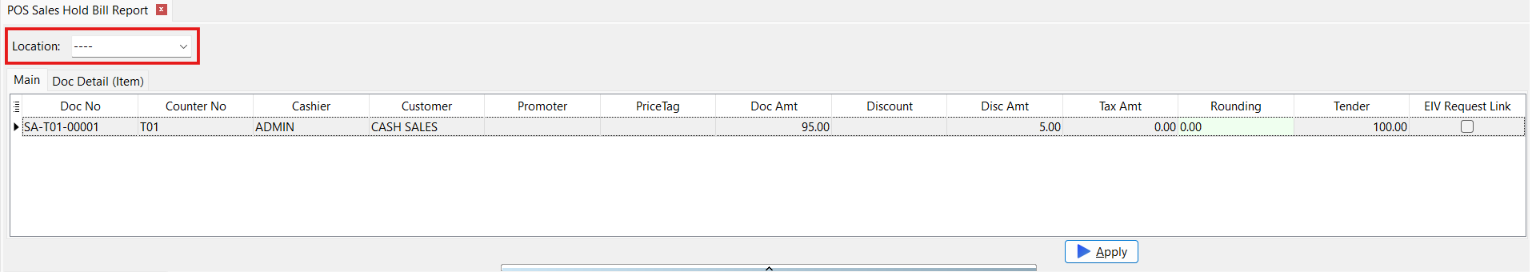

2. Select a Location. The default location code is ----.

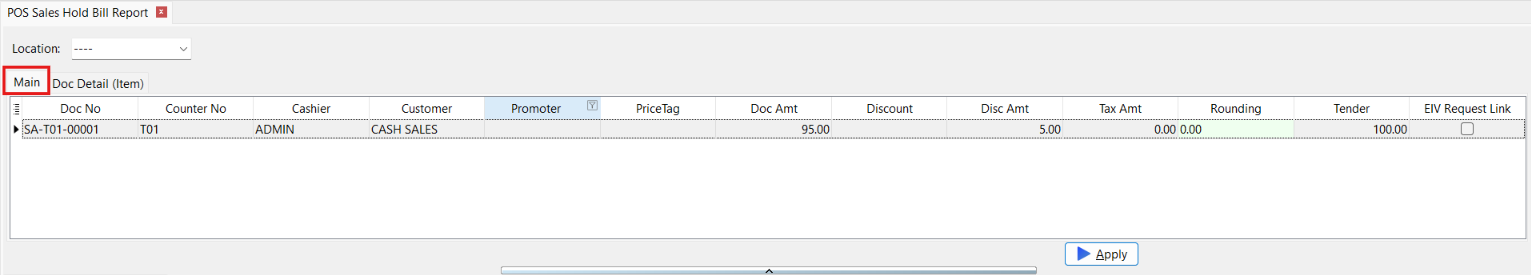

3. Enter sample transaction information in the Main tab.

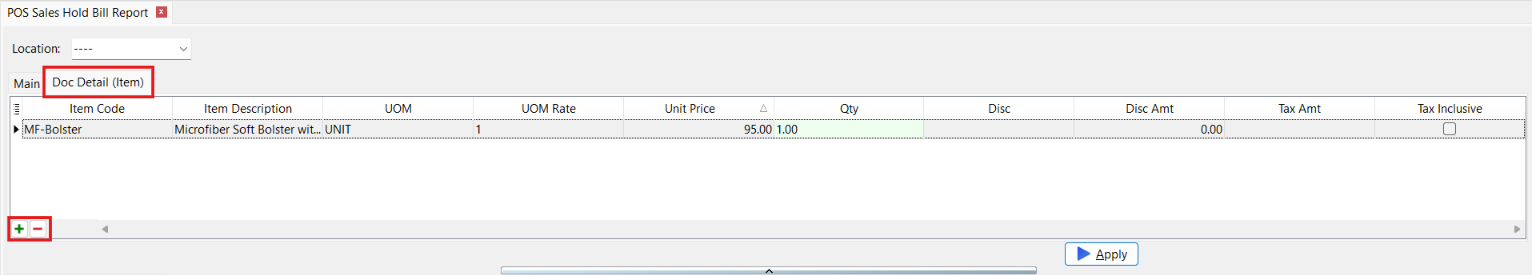

4. Add one or more item lines in the DocDetail tab.

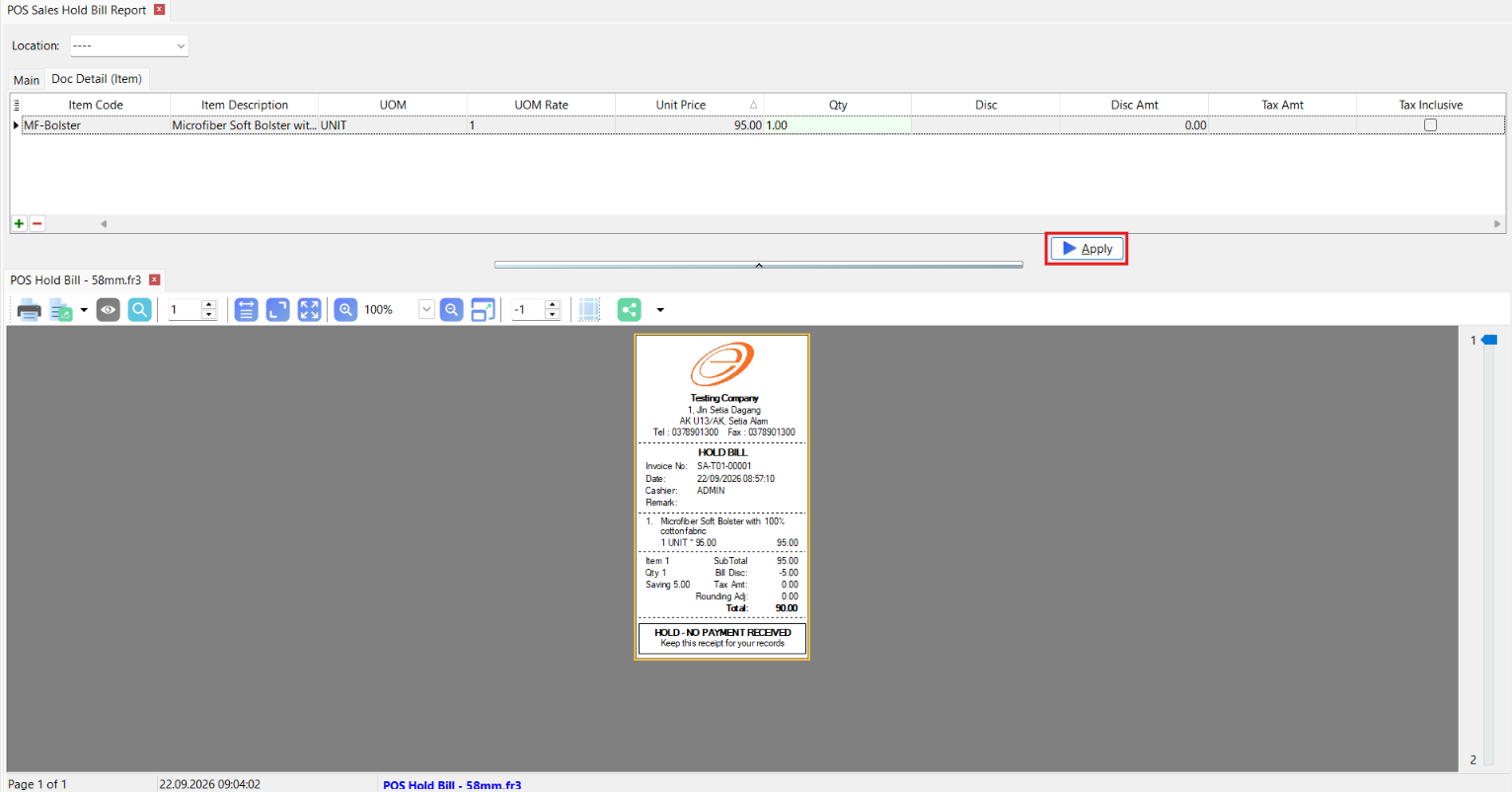

5. Click Apply to preview how the hold-bill receipt will appear in X-Pos Terminal.



Available Datasets

Dataset	Description
Main	Contains one record with the hold-bill header, totals, and status information.
Document_Detail	Contains one or more item-line records. It is displayed as DocDetail in the preview window.

The report can use selected location code to retrieve information configured in Maintain Location.

Main

Field	Description
DocNo	Hold-bill document number.
DocDateTime	Date and time at which the bill was placed on hold.
DocType	Document type.
Cashier	Cashier or user who created the hold bill. The current user is selected by default.
CustID	Customer identifier assigned to the hold bill.
Promoter	Promoter assigned to the hold bill.
CounterNo	Counter number from which the hold bill was created.
PriceTag	Price tag used to retrieve item prices and discounts in Document_Detail.
DocAmt	Current document amount entered for the preview.
Disc	Overall bill-discount value or expression.
DiscAmt	Total bill-discount amount entered for the preview.
TaxAmt	Total tax amount entered for the preview.
Rounding	Rounding adjustment entered for the preview.
Tender	Tender amount entered for the preview.
VoidAt	Date and time at which the document was voided, if applicable.
VoidBy	User who voided the document, if applicable.
VoidDesc	Description or remark recorded for the voided document.
Remark	General hold-bill remark.
Reason	Reason recorded for the document or related action.
RefDoc	Reference document number.
EIVRequestLink	Sample E-Invoice request value used by the report template.
RequestLink	Indicates whether the report should display the E-Invoice request link or QR code.

Document_Detail

Field	Description
ItemCode	Stock-item code. Selecting an item retrieves its item information and default pricing.
ItemDesc	Item description retrieved from the selected stock item.
UOM	Unit of measurement. The default sales UOM is selected automatically.
UOMRate	Conversion rate for the selected UOM. The default value is 1.
UnitPrice	Selling price retrieved using the selected item, UOM, quantity, and price tag.
BatchNo	Batch number assigned to the item.
SerialNumber	Serial number assigned to the item.
Group	Stock group retrieved from the selected item.
Remark2	Additional description retrieved from Description 2 of the selected item.
Qty	Item quantity. The default value is 1.
Disc	Item-discount value or expression. An applicable price discount may be retrieved automatically.
DiscAmt	Item-discount amount entered for the preview.
TaxId	Tax code applied to the item line.
TaxRate	Tax rate entered for the item line.
TaxAmt	Tax amount entered for the item line.
TaxInclusive	Indicates whether tax is included in the item price. It is cleared by default.
DiscountedPrice	Item price after discount, entered for the preview.
FinalPrice	Final item price entered for the preview.

Automatic Item Information

Selecting an ItemCode retrieves the ItemDesc, Remark2, Group, UOM, UOMRate, UnitPrice, and Disc.

Changing the UOM refreshes its rate and selling price.

Print Stock Item Barcode

Use this section to preview stock-item barcode labels. Add sample records to the Main dataset to check the barcode content and label layout.

How to Print Stock Item Barcode

1. From the main menu, go to POS → Print Stock Item Barcode.

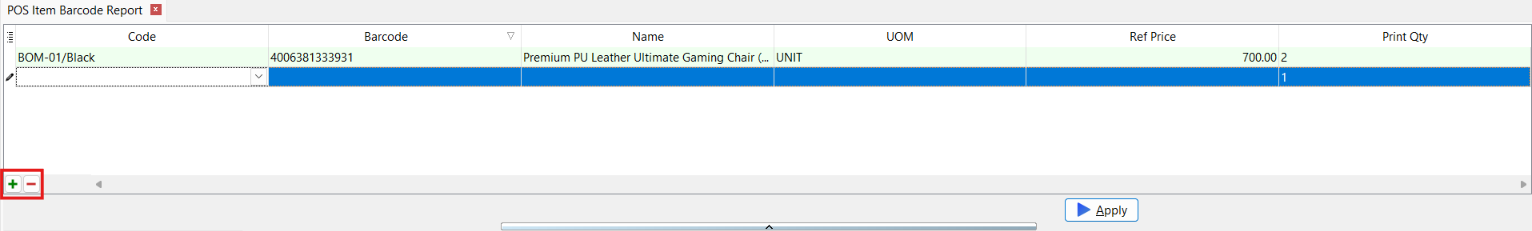

2. Add one or more rows to the item grid.

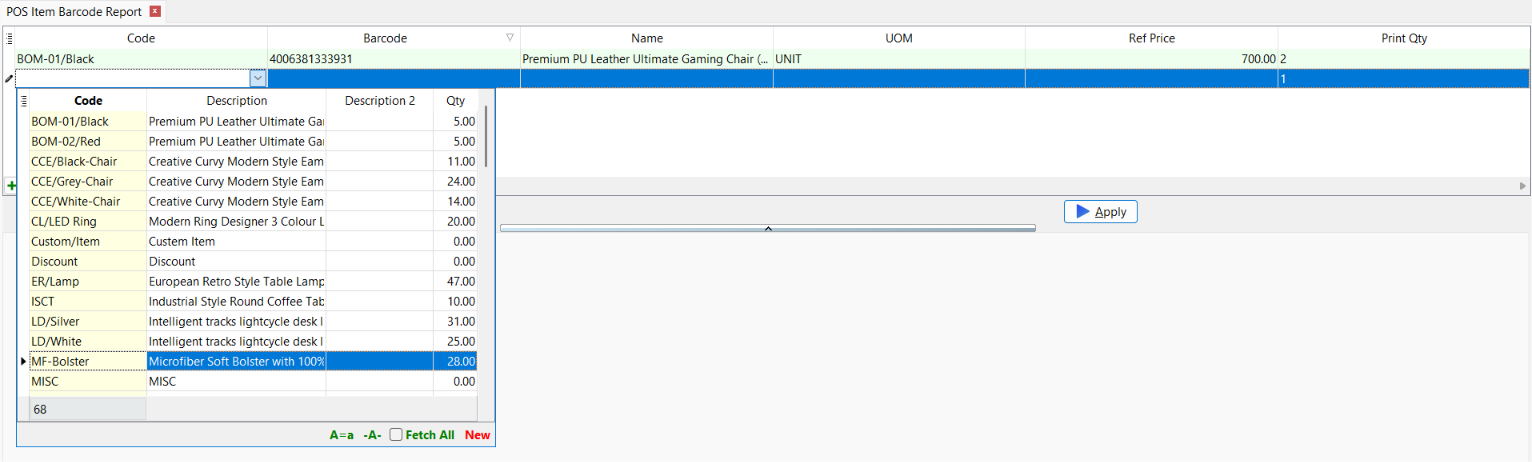

3. Select a stock item under Code.



4. Confirm the automatically retrieved item information and default UOM.

5. Change the UOM if a barcode for another UOM is required.

6. Enter an ExpiryDate, if applicable.

7. Enter the number of labels under PrintQty. The default value is 1.

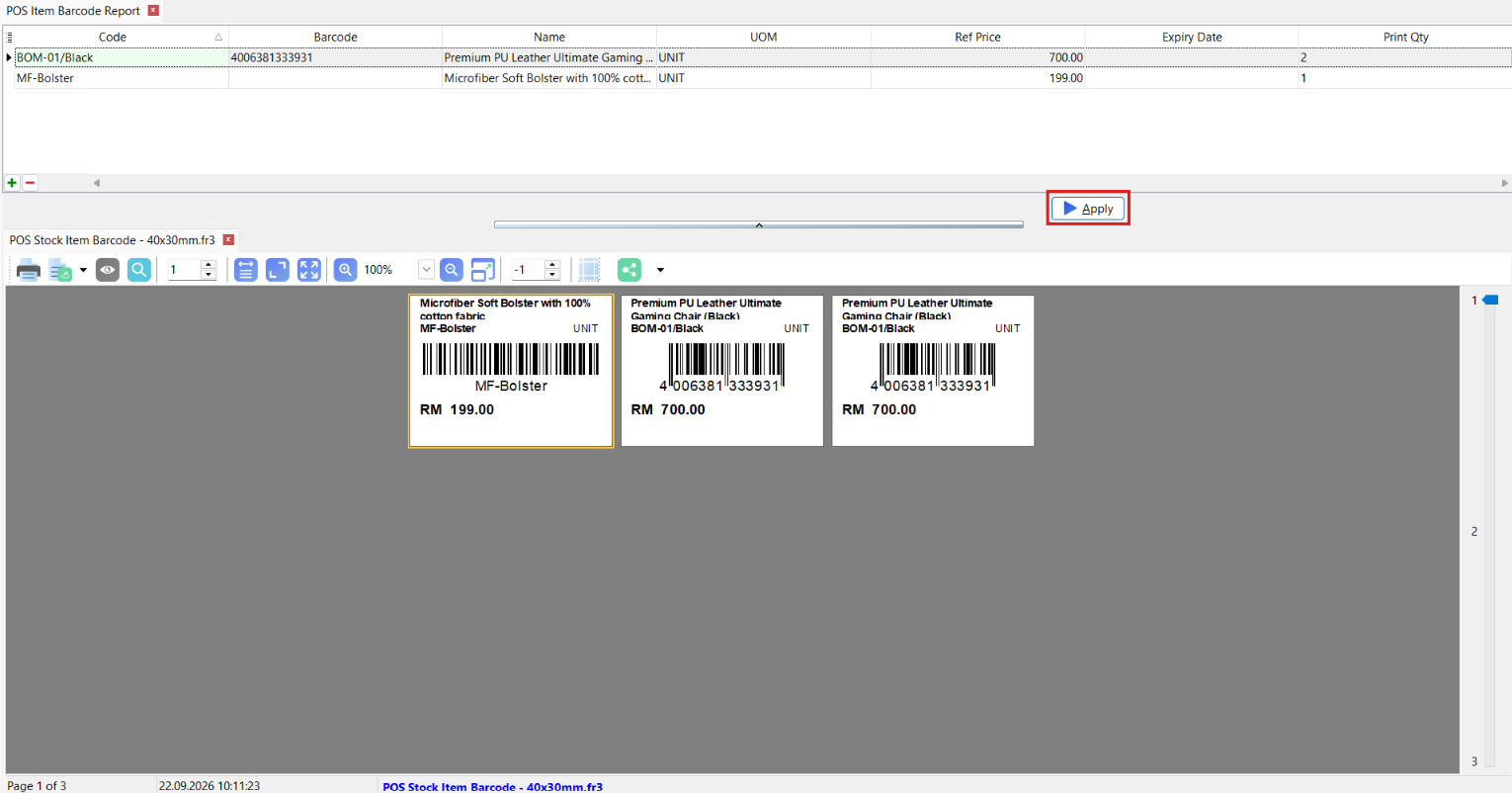

8. Click Apply to preview how the barcode labels will appear in X-Pos Terminal.



Manual Entry

Instead of selecting an existing stock item, you can manually enter the Barcode, Name, Expiry Date, Ref Price and Print Qty directly into the grid. This is useful for previewing a label before the item exists in the system, or for a one-off label that doesn't need a stock record.

Available Datasets

Dataset	Description
Main	Contains one or more stock-item barcode records.

Main

Field	Description
Barcode	Barcode retrieved for the selected item and UOM.
Code	Stock-item code. Selecting an item retrieves its descriptions, remarks, default UOM, UOM rate, reference price, and barcode.
Name	Item name retrieved from the item's main description.
Description2	Second item description.
Description3	Third or extended item description.
Remark1	First item remark.
Remark2	Second item remark.
UOM	Unit of measurement represented by the barcode. The default sales UOM is selected automatically.
Rate	Conversion rate for the selected UOM.
RefPrice	Reference selling price for the selected UOM.
ExpiryDate	Expiry date to display on the barcode label.
PrintQty	Number of labels to print. The default value is 1.

Automatic Barcode Information

Selecting a stock item retrieves the Name, Description2, Description3, Remark1, Remark2, UOM, Rate, RefPrice, and Barcode

Changing the UOM refreshes Rate, RefPrice, and Barcode. If more than one barcode exists for the selected item and UOM, the first available barcode is used.

Print Cash In / Cash Out

Use this section to preview a cash-in or cash-out receipt. Enter sample values into the CashFlow dataset to simulate a cash movement.

How to Print Cash In / Cash Out

1. From the main menu, go to POS → Print Cash In / Cash Out.

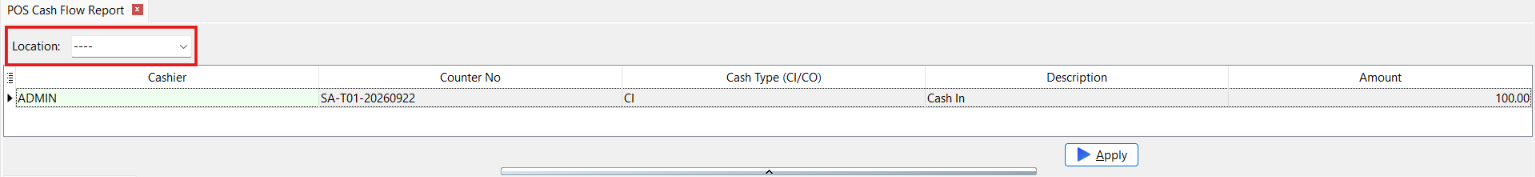

2. Select a Location. The default location code is ----.

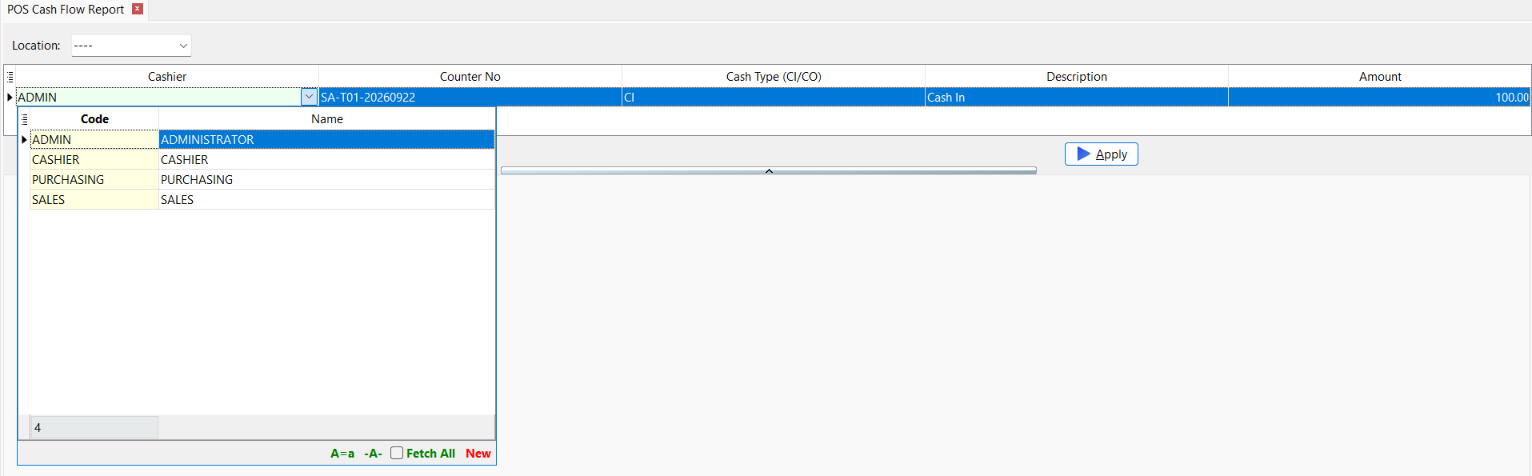

3. Select or enter the user under Cashier.



4. Enter the counter number.

5. Set the cash-flow Type, such as CI for Cash In or CO for Cash Out.

6. Enter a description and amount.

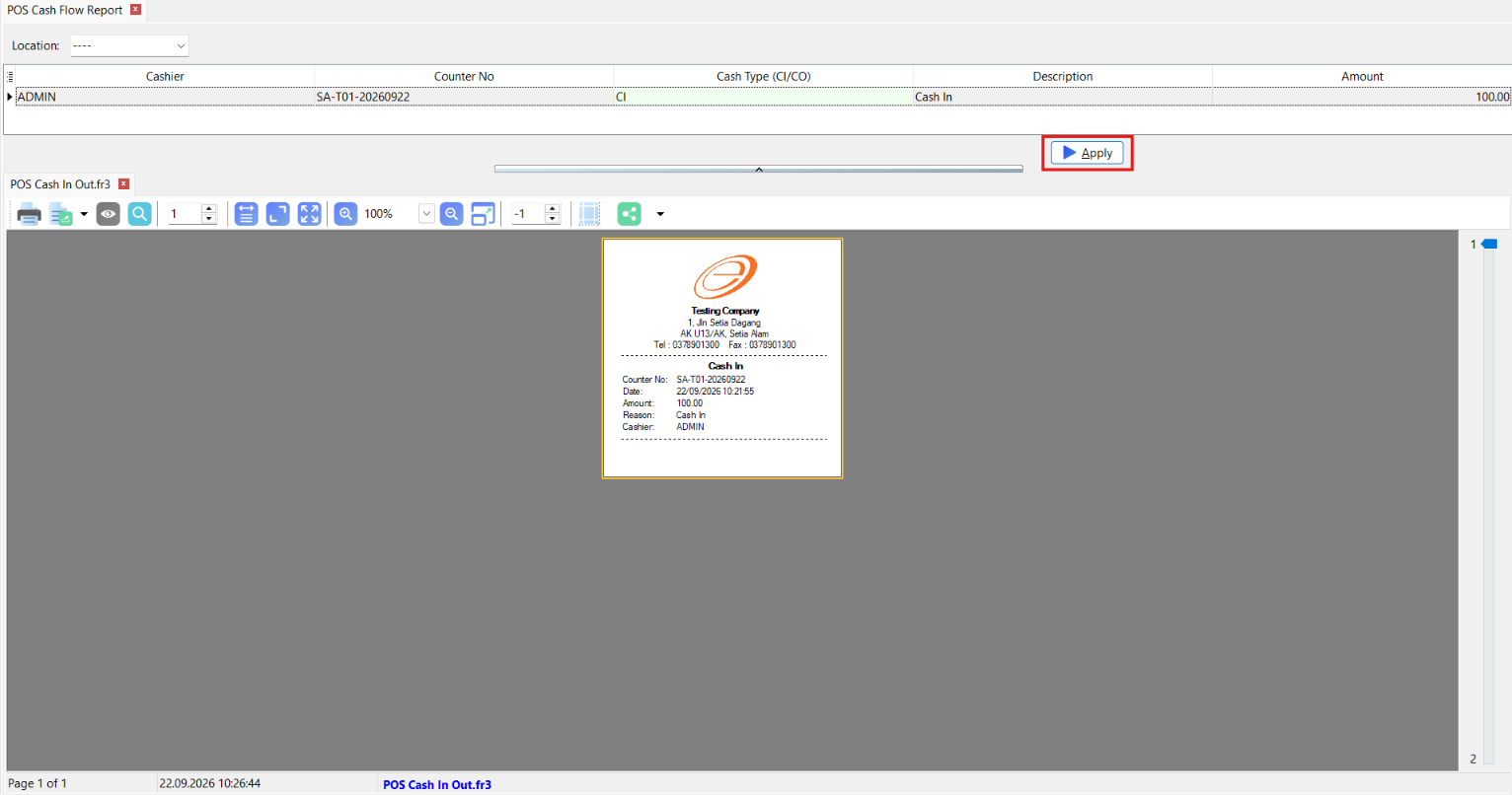

7. Click Apply to preview how the cash-in or cash-out receipt will appear in X-Pos Terminal.



Available Datasets

Dataset	Description
CashFlow	Contains one record with the cash-movement details.

The report can use selected location code to retrieve information configured in Maintain Location.

CashFlow

Field	Description
Code	User or operator code associated with the cash movement. A user lookup is available for this field.
CounterNo	Counter number associated with the cash movement.
DocDateTime	Date and time at which the cash movement was recorded.
Type	Cash-flow type code, such as CI for Cash In or CO for Cash Out.
Description	Description or reason for the cash movement.
Amount	Amount added to or removed from the counter.

Print Counter Management Report

Use this section to preview counter-management reports. Select a report type, then enter sample values into the available datasets to simulate an open or closed counter session.

How to Print a Counter Management Report

1. From the main menu, go to POS → Print Counter Management Report.

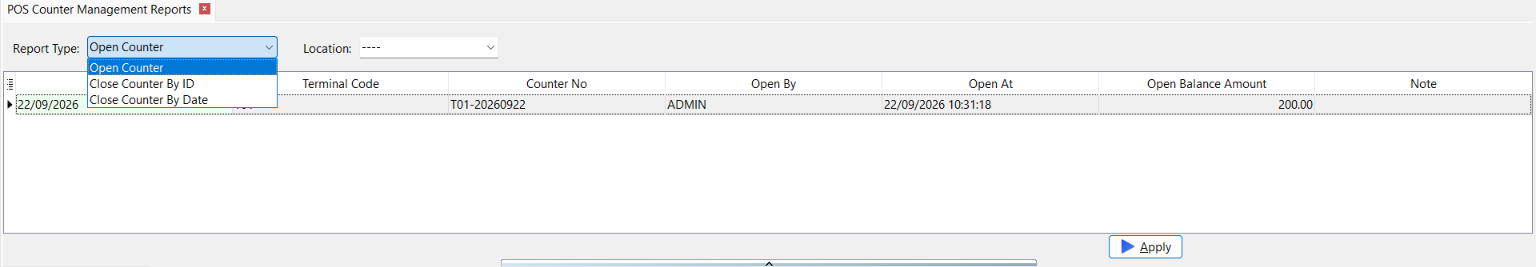

2. Select a Report Type:

   • Open Counter
   • Close Counter by ID
   • Close Counter by Date

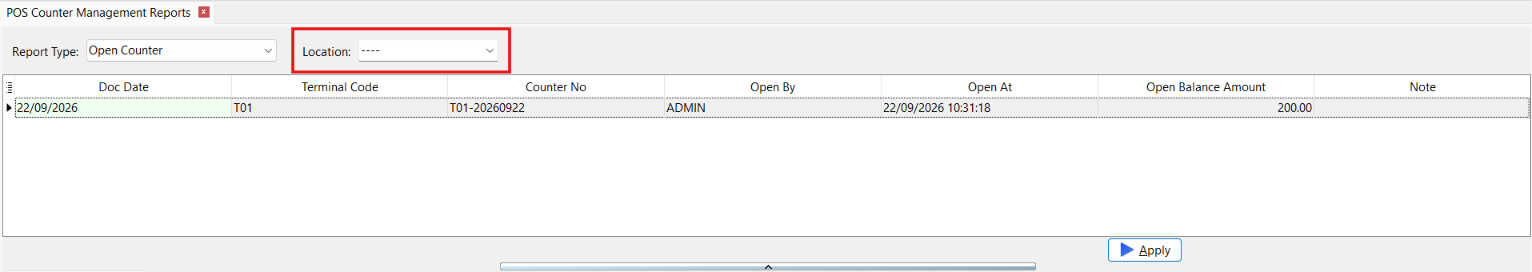

3. Select a Location. The default location code is ----.



4. Enter sample values into the datasets displayed for the selected report type.

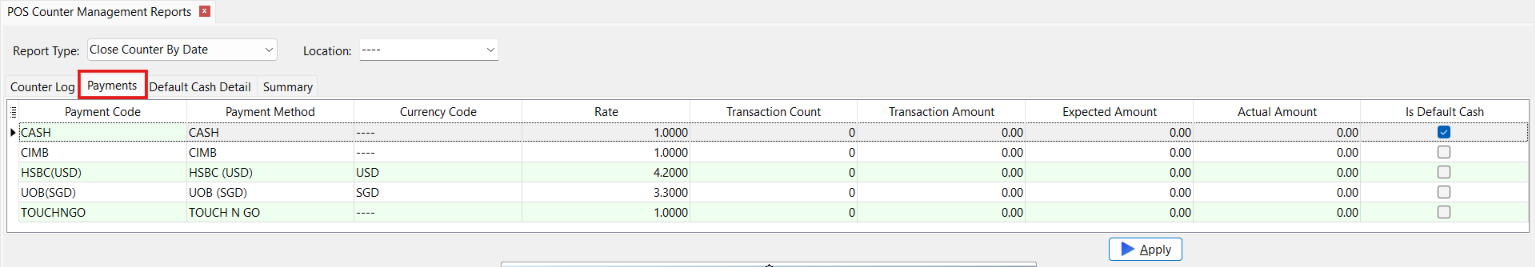

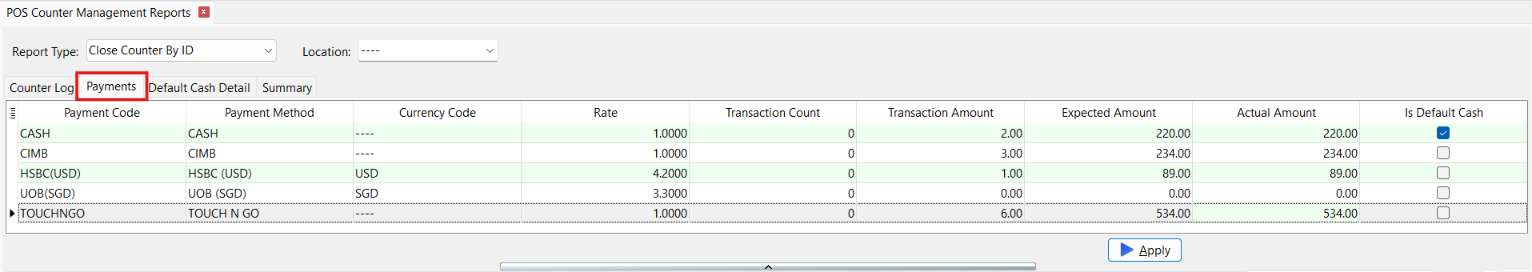

5. Add or update payment records where applicable.

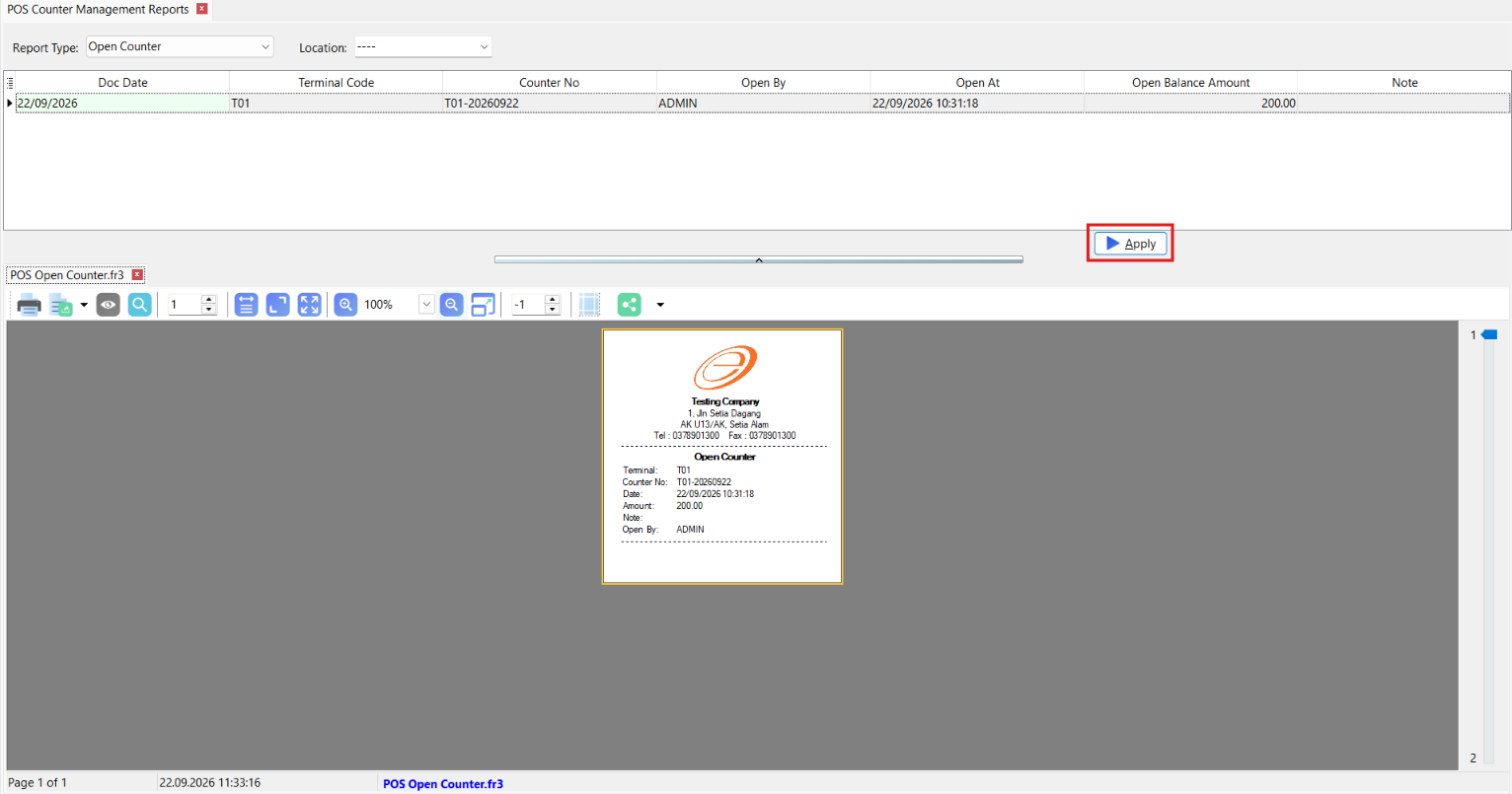

6. Click Apply to preview how the counter-management report will appear in X-Pos Terminal.



Report Types

Report Type	Available Datasets	Description
Open Counter	CtrLog	Previews the opening details of one counter session.

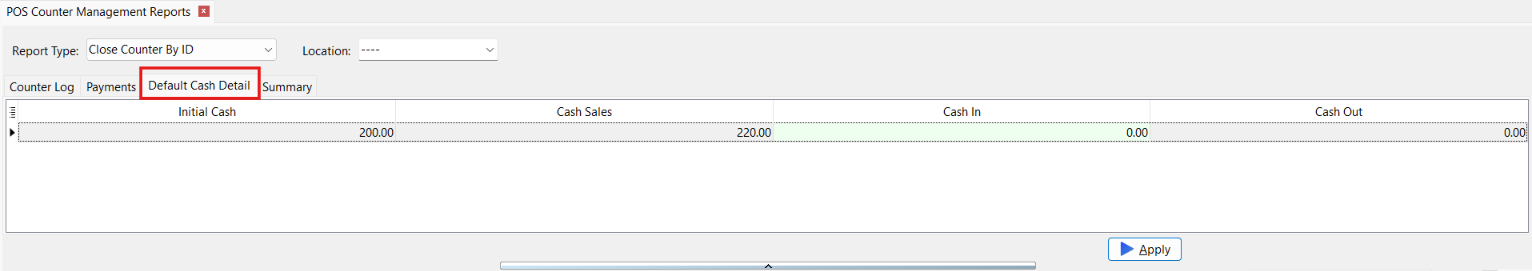

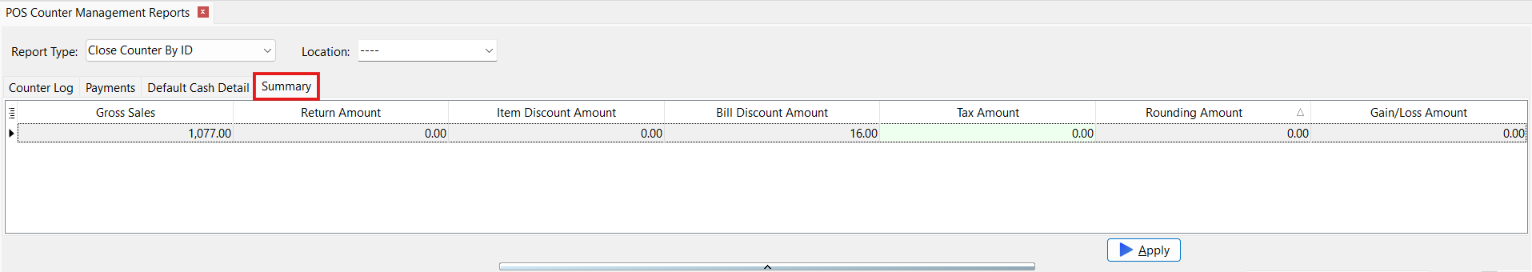

Close Counter by ID	CtrLog, CtrPayment, DefaultCashDetail, Summary	Previews the closing details of one counter session.

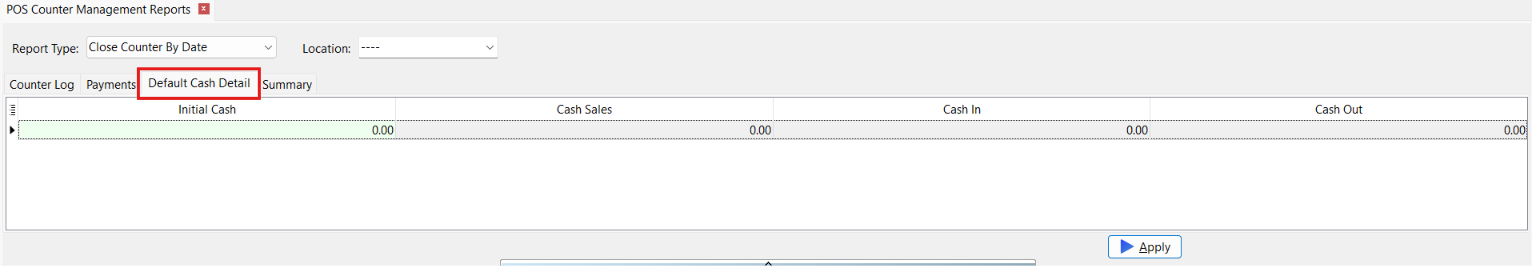

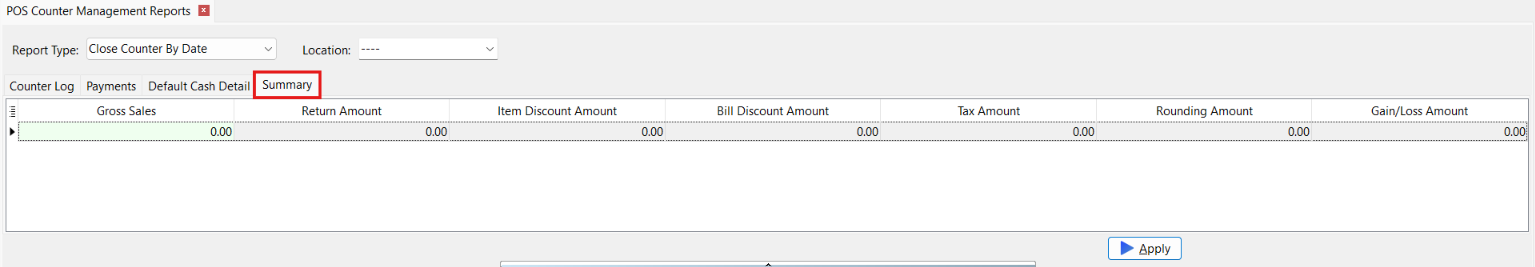

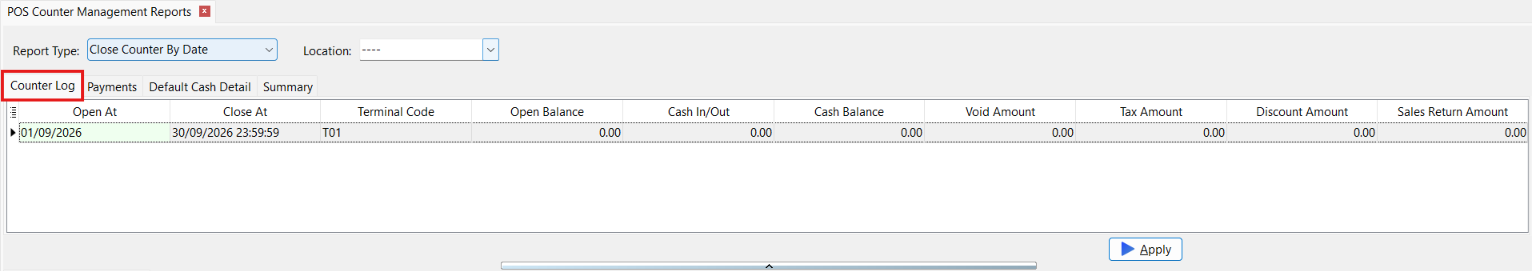

Close Counter by Date	CtrLog, CtrPayment, DefaultCashDetail, Summary	Previews a counter-closing summary for a date range.

The report can use selected location code to retrieve information configured in Maintain Location.

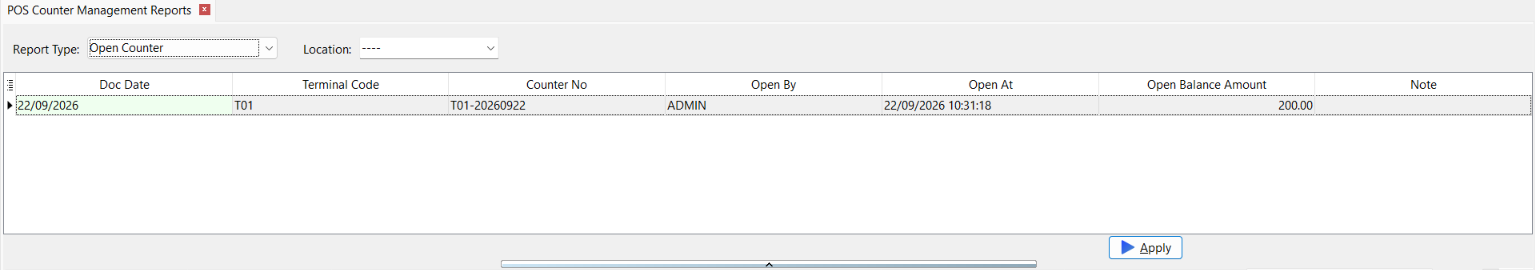

Open Counter Datasets

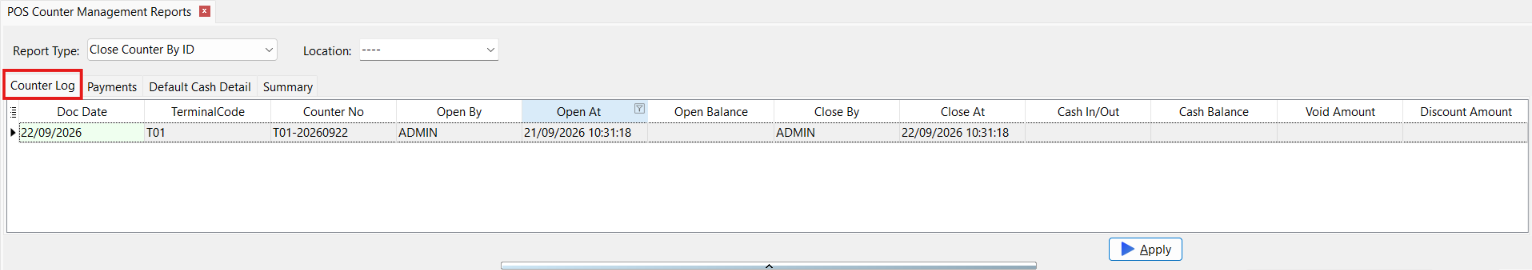

CtrLog

Field	Description
CounterNo	Counter number.
DocDate	Counter-session date.
TerminalCode	Code of the terminal used to open the counter.
OpenBy	User who opened the counter. A user lookup is available for this field.
OpenAt	Date and time at which the counter was opened.
OpenBal	Opening cash balance.
Note	Note recorded when the counter was opened.

Close Counter by ID Datasets

CtrLog

Field	Description
Autokey	Internal identifier of the counter session.
CounterNo	Counter number.
DocDate	Counter-session date.
TerminalCode	Code of the terminal used for the counter session.
OpenBy	User who opened the counter. A user lookup is available for this field.
OpenAt	Date and time at which the counter was opened.
OpenBal	Opening cash balance.
Note	Note recorded for the counter session.
CloseBy	User who closed the counter. A user lookup is available for this field.
CloseAt	Date and time at which the counter was closed.
CashInOut	Net cash-in and cash-out amount for the counter session.
CashBal	Cash balance for the counter session.
VoidAmt	Total value of voided transactions.
TaxAmt	Total tax amount.
DiscAmt	Total discount amount.
SalesReturnAmt	Total sales-return amount.
CountBill	Number of sales bills processed.
CountVoid	Number of voided bills.
CountCN	Number of credit notes.

CtrPayment

The CtrPayment dataset is automatically populated with the active X-Pos payment methods configured in SQL Account.

Field	Description
PMCode	Payment-method code.
PaymentMethod	Payment-method description.
CurrencyCode	Currency assigned to the payment method.
Rate	Current selling rate for the payment currency.
TransactionCount	Number of transactions processed using the payment method.
TransactionAmt	Total transaction amount for the payment method.
ExpectedAmt	Amount expected according to the recorded transactions.
ActualAmt	Amount counted or entered when closing the counter.
IsDefaultCash	Indicates whether the payment method is the default cash method. 1 represents yes and 0 represents no.

The payment code, description, currency, rate, and default-cash status are retrieved automatically. The transaction count and amounts default to zero for the preview.

DefaultCashDetail

Field	Description
InitialCash	Cash balance entered when the counter was opened.
CashSales	Total cash received from sales.
CashIn	Total cash added to the counter.
CashOut	Total cash removed from the counter.

Summary

Field	Description
GrossSales	Total sales amount before returns and discounts.
ReturnAmt	Total sales-return amount.
ItemDiscAmt	Total discount applied to individual items.
BillDiscAmt	Total discount applied to entire bills.
TaxAmt	Total tax amount.
RoundingAmt	Total rounding adjustment.
GainLossAmt	Total gain or loss for the counter session.

Close Counter by Date Datasets

CtrLog

For this report type, OpenAt and CloseAt define the reporting period instead of the opening and closing times of one counter.

Field	Description
OpenAt	Start date and time of the reporting period. The default is the start of the current month.
CloseAt	End date and time of the reporting period. The default is the end of the current month.
TerminalCode	Terminal code included in the preview.
OpenBal	Total opening balance for the report.
CashInOut	Net cash-in and cash-out amount for the reporting period.
CashBal	Cash balance for the reporting period.
VoidAmt	Total value of voided transactions.
TaxAmt	Total tax amount.
DiscAmt	Total discount amount.
SalesReturnAmt	Total sales-return amount.
CountBill	Number of sales bills processed.
CountVoid	Number of voided bills.
CountCN	Number of credit notes.

CtrPayment

The CtrPayment dataset uses the same fields as Close Counter by ID and is automatically populated with the active X-Pos payment methods.

Field	Description
PMCode	Payment-method code.
PaymentMethod	Payment-method description.
CurrencyCode	Currency assigned to the payment method.
Rate	Current selling rate for the payment currency.
TransactionCount	Number of transactions processed using the payment method.
TransactionAmt	Total transaction amount for the payment method.
ExpectedAmt	Amount expected according to the recorded transactions.
ActualAmt	Amount counted or entered when closing the counter.
IsDefaultCash	Indicates whether the payment method is the default cash method. 1 represents yes and 0 represents no.

DefaultCashDetail

Field	Description
InitialCash	Total opening cash balance.
CashSales	Total cash received from sales.
CashIn	Total cash added during the reporting period.
CashOut	Total cash removed during the reporting period.

Summary

Field	Description
GrossSales	Total gross sales for the reporting period.
ReturnAmt	Total sales-return amount.
ItemDiscAmt	Total item-discount amount.
BillDiscAmt	Total bill-discount amount.
TaxAmt	Total tax amount.
RoundingAmt	Total rounding adjustment.
GainLossAmt	Total gain or loss for the reporting period.

Report Template Checklist

Before synchronizing a report template to X-Pos:

• Select the correct report type.
• Preview the report using representative sample data.
• Test discounts, taxes, multiple payments, returns, voided transactions, and foreign currencies where applicable.
• Check long descriptions and large values for alignment or wrapping issues.
• Confirm the printer, paper size, and page layout.
• Synchronize the terminal metadata after creating or modifying the template.
