Guide

Create Payroll

Maintain Employee's Opening Balance

• Maintaining an employee’s opening balance is necessary when the employee joins the company in a month later than January.
• The previous PCB amount must be entered so that the system can correctly calculate the PCB amount payable each month.

1. Navigate to Open Payroll.



2. Double click the year in Open Payroll



3. Double click the transaction under ‘Opening’



4. Select the employee by double clicking on the name



5. Key in all the employee’s opening balance information



Mapping of SQL 'opening' to EA form

Special Note for Additional EPF and Additional PCB

• Additional EPF and Additional PCB are used when additional remuneration (e.g., bonus, commission, paid leave) is given.
• In the EA form, normal EPF and additional EPF are grouped into one.
• However, SQL recommends users split the amount for more detailed input.

info

Frequency – Used when a company pays salary twice or more in a month.

Final Process

This option allows you to process the Monthly Salary and Final Salary.

1. Go to Payroll and select New Payroll.

   tip

   Some companies do not have a month-end payroll cut-off date (e.g., the 26th of the month). You can preset your company's payroll cut-off date using the "..." button.



2. Click on the Process option.

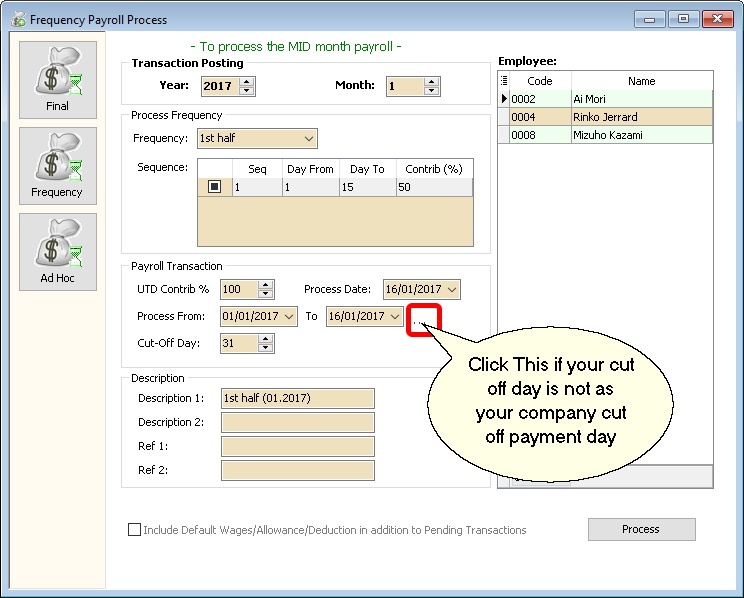

Frequency Process

Used to process mid-month salary payroll. The salary payout is based on an average percentage of the Fixed Salary.

This is not the last pay of the month.

Ad Hoc Process

Used to process mid-month Ad Hoc Payroll.

Default Option:

• All (PCB, SOCSO, EPF) contributions for Fixed Transactions will be 0.
• Values will be 0 (Zero), and the user needs to manually enter a value for all or selected employees.

This option allows the user to control the Contribution (default 100%) for Fixed Transactions.

In other words, if you have a Bonus with PCB (A) only, just set the Contribution to 0%.

Open Payroll

info

Once you have created the payroll, you can view your actions and make amendments if necessary.

1. Navigate to Payroll > Open Payroll. Alternatively, access it from the home page by clicking Open Payroll.



2. Select an employee and double-click their name to check individual amounts.



   info

   You can process two month-ends on the same day. Initially, you can choose to check the first batch of employees.

   When processing the second batch, you can check the second batch of users.

   Example:

   BATCH 1





   BATCH 2





Open Pending Payroll

tip

Before processing the month-end, you can use Open Pending Payroll to enter all other ad hoc info like extra allowance, overtime, claims, etc.

• This allows the user to prepare transactions (e.g., Overtime, Deduction) before processing the payroll.

• Available Pending Type Transactions:

  • Wages, Allowance, Tax Deduction, Overtime
  • Deduction, Advance Paid, Claims, Loan
  • CP38, Advance Deduct, Bonus, Paid Leave
  • Director Fees, Unpaid Leave, Tax Benefit, Commission

• After entering all pending transactions, the user may proceed to the next step using either:

  • New Payroll > Final Process
  • New Payroll > Ad Hoc Process

• Note: For Pending Advance Paid, you must use New Payroll > Ad Hoc Process before using New Payroll > Final Process.

Steps

1. Go to Payroll > Open Pending Payroll.



2. Double-click on the info you want to input, e.g., Overtime.



3. Insert the overtime info accordingly:

   1. Click the ➕ button to add new overtime.



   2. Insert the info accordingly, such as employee, overtime code, work unit, etc.



   3. Once updated, click Save.



4. Once the update is finished, you may process the month-end and observe the result.

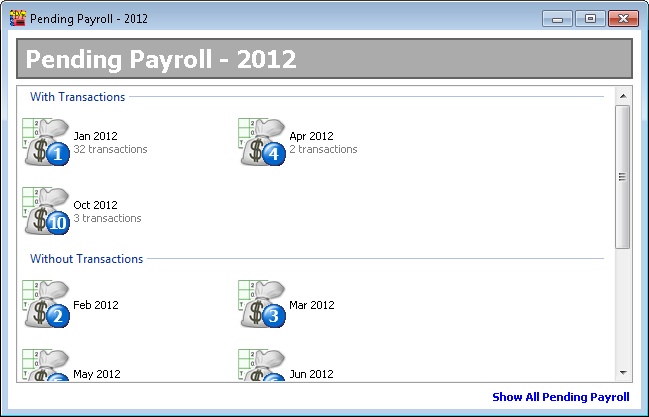

Pending YYYY

• YYYY represents the Year (e.g. if in 2013 will show as Pending 2013).
• To show the pending in Monthly (with & without Transactions).

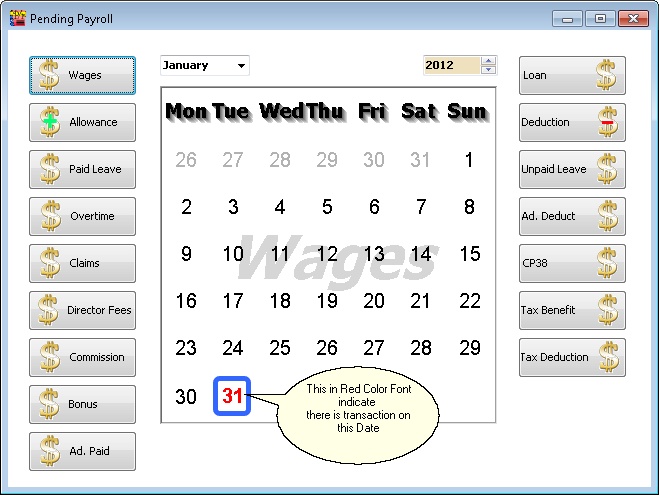

Pending Navigator

Show which Pending Type had transactions in the day view.

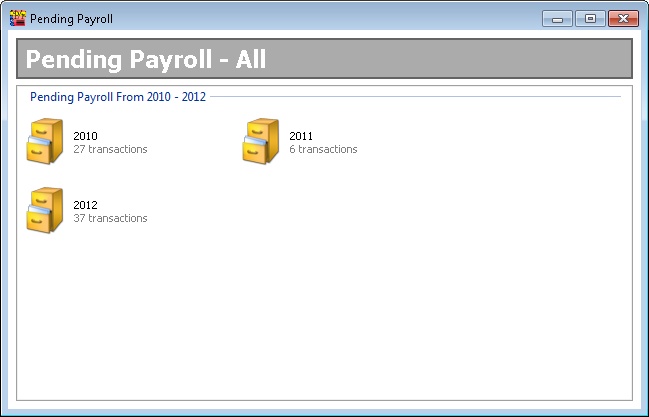

Show all Pending Payroll

To show the pending in Yearly (with Transactions).

Pending Transactions Types

1. Click the + button at the top of the screen (The Green + and Money icon) to insert record(s).

2. After completion, click the Blue Diskette icon at the top of the screen to save the record.

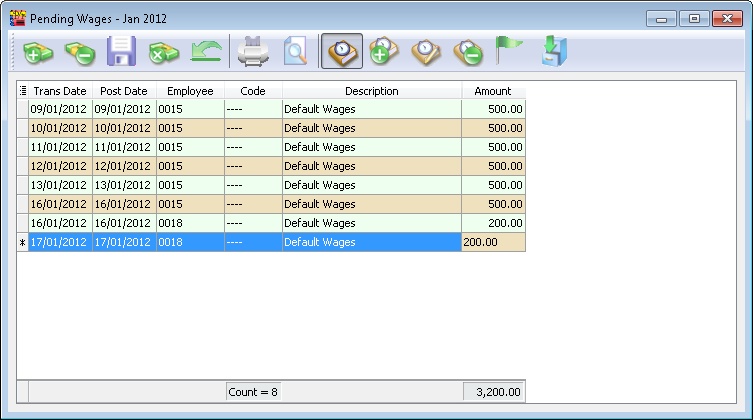

Pending Wages

This is useful for employees paid by the number of days they work (i.e., users can add the days when the selected employee comes to work).

Field Name	Description	Type / Length / Precision
Trans Date	Wages transaction date	Date
Post Date	Wages posting date	Date
Employee	Employee code	Alphanumerical, length 30
Code	Wages type	Alphanumerical, length 20
Description	Wages type description	Alphanumerical, length 160
Amount	Wages amount	Decimal, length 18, precision 2

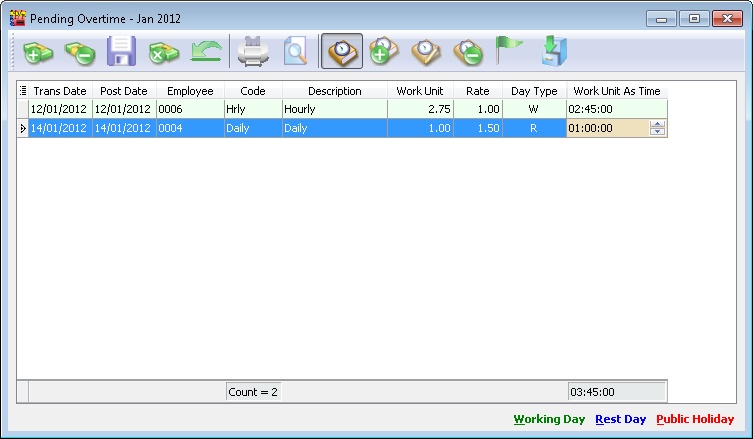

Pending Overtime

Field Name	Description	Type / Length / Precision
Trans Date	Overtime transaction date	Date
Post Date	Overtime posting date	Date
Employee	Employee code	Alphanumerical, length 30
Code	Overtime type	Alphanumerical, length 20
Description	Overtime type description	Alphanumerical, length 160
Work Unit	It can be in Hours or Day depend what Overtime Type selected and Unit type is set at Maintain Overtime	Decimal, length 18, precision 8
Rate	Overtime rate	Decimal, length 18, precision 8
Day Type	It follow the Post Date to determine the Day Type which is set at Maintain Calender	Alpha, length 1
Work Unit As Time	Overtime entered as time (HH:MM:SS)	Time

Pending Paid Leave

Field Name	Description	Type / Length / Precision
Trans Date	Paid leave transaction date	Date
Post Date	Paid leave posting date	Date
Employee	Employee code	Alphanumerical, length 30
Description	Paid leave description	Alphanumerical, length 160
Amount	Paid leave amount	Decimal, length 18, precision 2

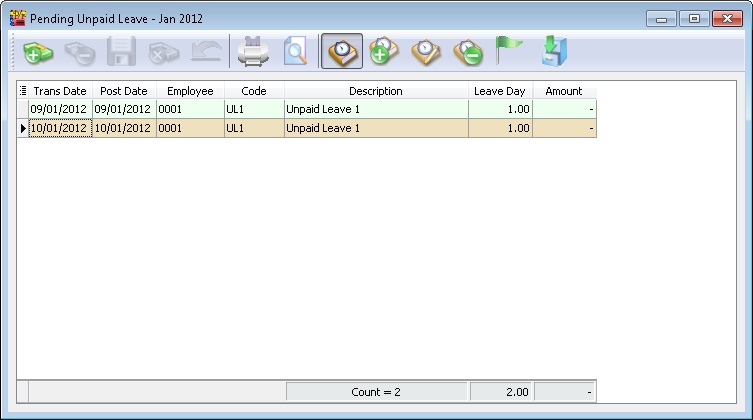

Pending Unpaid Leave

Field Name	Description	Type / Length / Precision
Trans Date	Unpaid leave transaction date	Date
Post Date	Unpaid leave posting date	Date
Employee	Employee code	Alphanumerical, length 30
Code	Unpaid leave type	Alphanumerical, length 20
Description	Unpaid leave type description	Alphanumerical, length 160
Leave Day	Number of unpaid leave days	Decimal, length 18, precision 8
Amount	Unpaid leave amount (Leave blank if want calculated by system)	Decimal, length 18, precision 2

Pending Claim

Field Name	Description	Type / Length / Precision
Trans Date	Claim transaction date	Date
Post Date	Claim posting date	Date
Employee	Employee code	Alphanumerical, length 30
Code	Claim type	Alphanumerical, length 20
Description	Claim type description	Alphanumerical, length 160
Ref1	Claim reference 1	Alphanumerical, length 20
Ref2	Claim reference 2	Alphanumerical, length 20
Amount	Claim amount	Decimal, length 18, precision 2

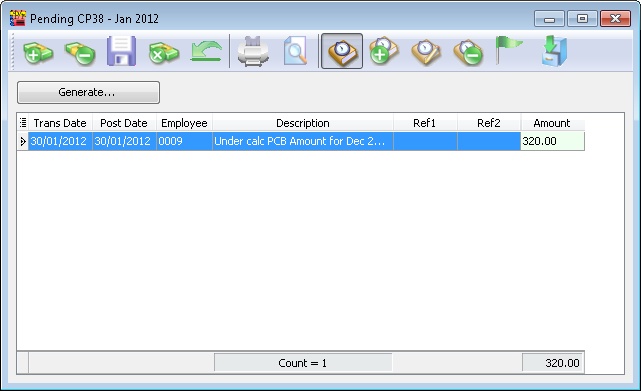

Pending CP38

This is generally towards settlement of outstanding taxes.

Field Name	Description	Type / Length / Precision
Trans Date	CP38 transaction date	Date
Post Date	CP38 posting date	Date
Employee	Employee code	Alphanumerical, length 30
Description	CP38 description	Alphanumerical, length 160
Ref1	Reference 1	Alphanumerical, length 20
Ref2	Reference 2	Alphanumerical, length 20
Amount	CP38 amount	Decimal, length 18, precision 2
Generate Button	For Batch Generate CP38

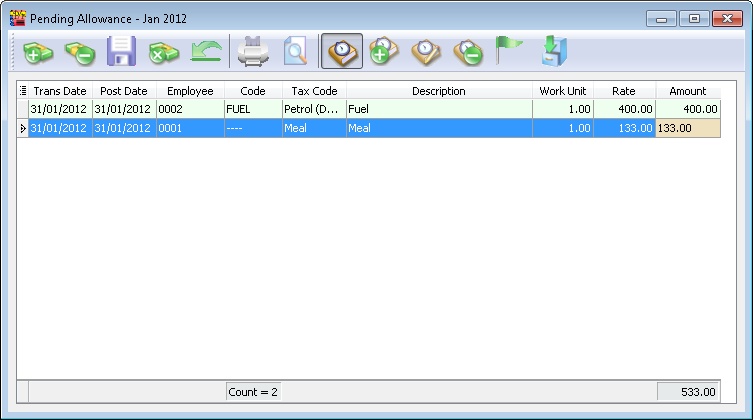

Pending Allowance

Field Name	Description	Type / Length / Precision
Trans Date	Allowance transaction date	Date
Post Date	Allowance posting date	Date
Employee	Employee code	Alphanumerical, length 30
Code	Allowance type	Alphanumerical, length 20
Tax Code	Tax exemption code	Alphanumerical, length 20
Description	Allowance type description	Alphanumerical, length 160
Work Unit	Allowance unit	Decimal, length 18, precision 8
Rate	Allowance rate	Decimal, length 18, precision 8
Amount	Allowance total amount	Decimal, length 18, precision 2

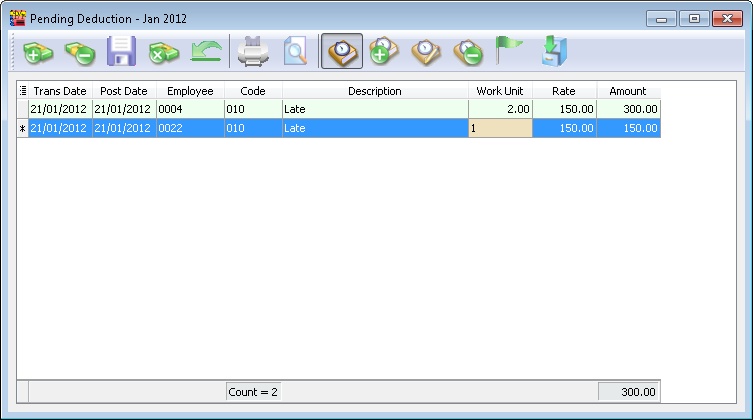

Pending Deduction & Pending Commission

Below Example information is applicable for

• Pending Deduction
• Pending Commission

Field Name	Description	Type / Length / Precision
Trans Date	Deduction / Commission transaction date	Date
Post Date	Deduction / Commission posting date	Date
Employee	Employee code	Alphanumerical, length 30
Code	Deduction / Commission type	Alphanumerical, length 20
Description	Deduction / Commission description	Alphanumerical, length 160
Work Unit	Deduction unit	Decimal, length 18, precision 8
Rate	Deduction rate	Decimal, length 18, precision 8
Amount	Deduction total amount	Decimal, length 18, precision 2

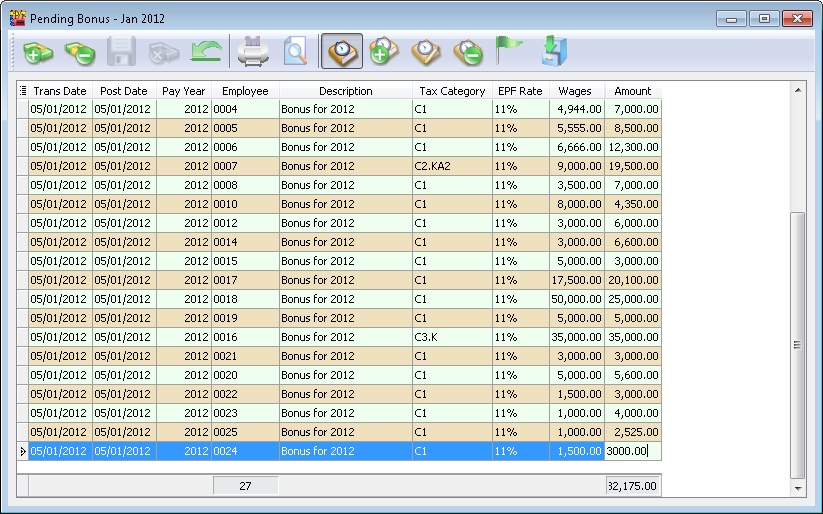

Pending Bonus & Pending Director Fees

Below Example information is applicable for

• Pending Bonus
• Pending Director Fees

Field Name	Description	Type / Length / Precision
Trans Date	Bonus / Director fees transaction date	Date
Post Date	Bonus / Director fees posting date	Date
Pay Year	Bonus year (Default is same year as Post Date)	Integer
Employee	Employee code	Alphanumerical, length 30
Tax Category	Employee tax category	Alphanumerical, length 10
EPF Rate	Bonus EPF rate	Alphanumerical, length 10
Wages	Employee wages amount	Decimal, length 18, precision 2
Amount	Bonus / Director fees amount	Decimal, length 18, precision 2

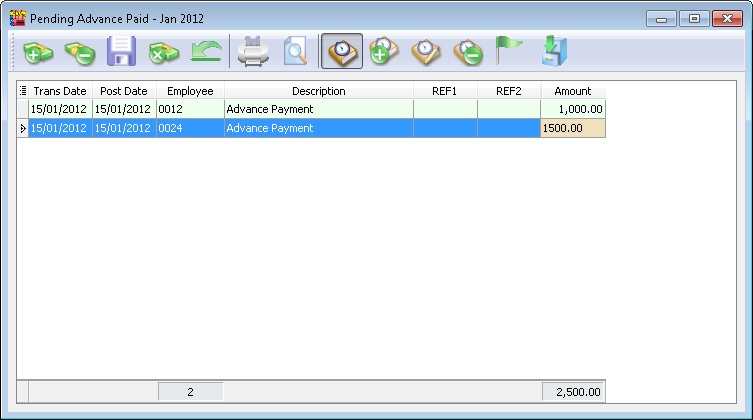

Pending Advance Paid, Pending Advance Deduct & Pending Loan

Below Example information is applicable for

• Pending Advance Paid
• Pending Advance Deduct (Only View because it derive from Advance Paid after Ad Hoc Process)
• Pending Commission

Field Name	Description	Type / Length / Precision
Trans Date	Advance / Loan transaction date	Date
Post Date	Advance / Loan posting date	Date
Employee	Employee code	Alphanumerical, length 30
Description	Description	Alphanumerical, length 160
Ref1	Reference 1	Alphanumerical, length 20
Ref2	Reference 2	Alphanumerical, length 20
Amount	Advance paid amount	Decimal, length 18, precision 2

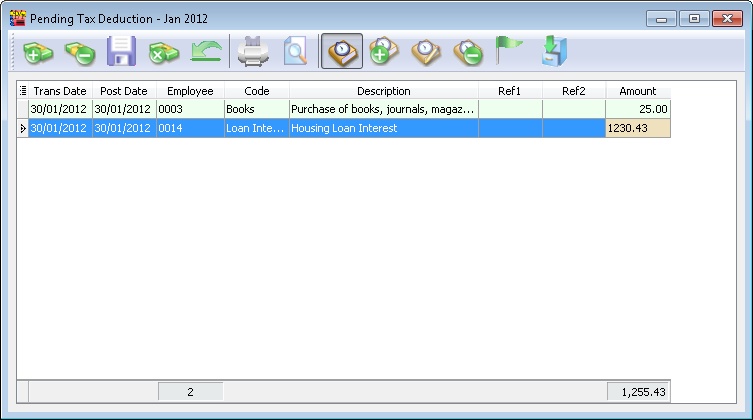

Pending Tax Benefit & Pending Tax Deduction

Below Example information is applicable for

• Pending Tax Benefit
• Pending Tax Deduction

Field Name	Description	Type / Length / Precision
Trans Date	Tax deduction / benefit transaction date	Date
Post Date	Tax deduction / benefit posting date	Date
Employee	Employee code	Alphanumerical, length 30
Code	Tax deduction code	Alphanumerical, length 20
Description	Tax deduction description	Alphanumerical, length 160
Ref1	Reference 1	Alphanumerical, length 20
Ref2	Reference 2	Alphanumerical, length 20
Amount	Tax deduction description	Decimal, length 18, precision 2

Example of Creating Open Pending Payroll

Advance Paid

info

Employee requests advance salary before month-end.

1. Navigate to Payroll > Open Pending Payroll.

2. Select Advance Paid.



3. Enter the details accordingly:

   Trans date = Date of advance payment application

   Employee = Select the employee

   Amount = Amount of advance payment



4. Go to Payroll > New Payroll.

5. Choose Ad Hoc.

6. Set the date when the employee takes the advance payment.

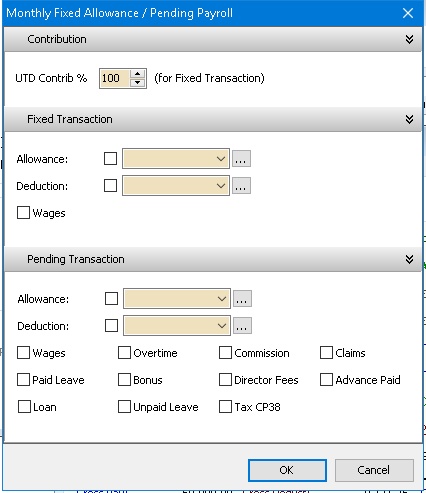

7. Under Process, select Monthly Fixed Allowance / Pending Payroll (a dialog box will appear as shown below).

8. Check "Advanced Paid".



9. Click Process.



10. Process Month End Payroll as usual; you will find an advance deduction at the month-end.



Bonus

1. Navigate to Payroll > Open Pending Payroll.



2. Click on Bonus.



3. Next, adjust the bonus for your employee:



   1. Click Add.
   2. Select your employee.
   3. Enter the amount.
   4. Click Save.

4. Go to Payroll > New Payroll and click on Ad Hoc.



5. Check EPF if you want to deduct EPF, and check PCB if you want to deduct PCB.

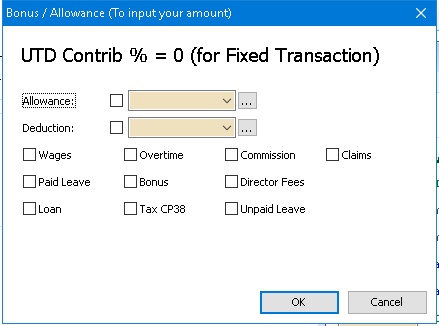

6. Check Bonus / Allowance (to input your amount).



7. Change the Description (Optional) and check the employee you are rewarding with a bonus.



8. Complete the process and check the payslip.



CP38

• CP38 is an instruction to deduct salary issued by LHDN. This CP38 instruction requires the employer to make additional deductions in monthly installments from the taxpayer's salary (other than a Monthly Tax Deduction) towards the settlement of the taxpayer’s income tax arrears.
• The Salary Deduction Order (CP38) for tax payment in installments aims to ease the burden on the taxpayer, who would otherwise have to pay the tax arrears in one lump sum under the Income Tax Act 1967.

1. Open Pending Payroll and choose CP38.



2. Click GENERATE at the top left of the window.



3. Enter the Amount you received from the LHDN Letter. For example, if employee (00001- Lucious) has to pay CP38 in June (RM450) and July (RM550), enter these amounts. Click GENERATE.



4. Click SAVE.



5. This pending task only needs to be completed once. It will impact both the June and July month-end processes. The following pictures illustrate the end result:



Generate Payment Voucher / Journal Entry

note

This is an Additional Module (Payroll Accounting (SQL Payroll)).

1. This module generates monthly payroll data converted into double entry and posts it into SQL Account.

2. It is available in SQL Payroll version 129 and above.

3. It is available to import payroll data in SQL Account version 745 and above.

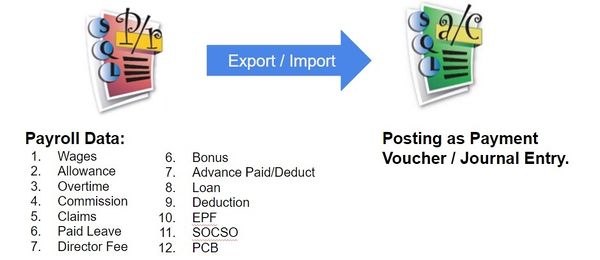

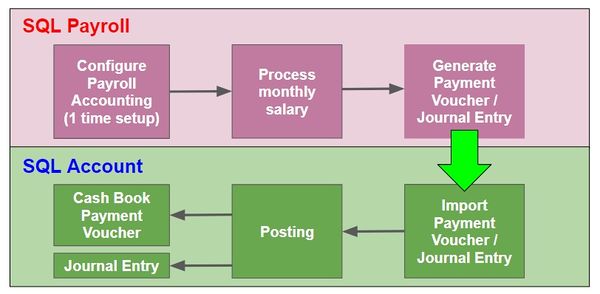

Overview of the Process Flow

Configure Payroll Accounting (One-time Setup)

Go to Menu: Payroll > Generate Payment Voucher / Journal Entry...

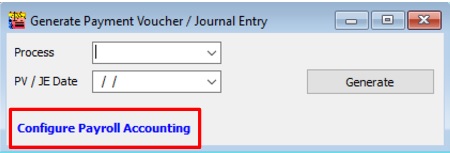

1. At Generate Payment Voucher / Journal Entry, click on Configure Payroll Accounting.



2. Overview of the Configure Payroll Accounting settings screen.

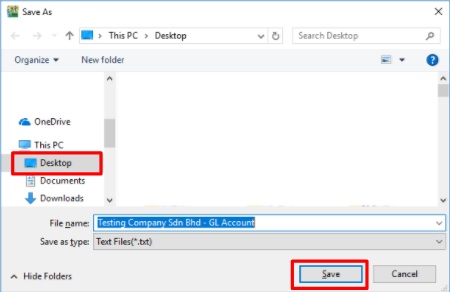

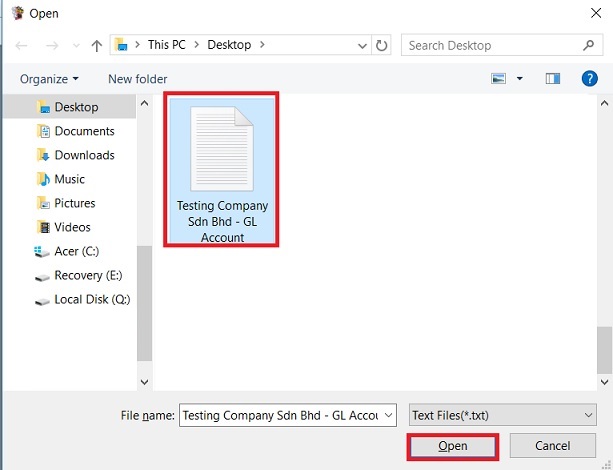

Step 1: Save GL Account to File (SQL Account)

1. Login to the SQL Account database.

2. Go to File > Import > (SQL Payroll) Import Payment Voucher / Journal Entry > Save GL Account File.





3. Save the SQL Account file to the Desktop.



Step 2: SQL Account GL Code

1. Click on Load From File.



2. Select a SQL Account file (*.txt) and click Open.



3. After the SQL Account GL Code has loaded, the company name and the last saved date and time will be displayed.



4. Click the Remove File button if you wish to load a new chart of accounts.

Step 3: GL Account Mapping

1. After loading the chart of accounts (in Step 2), you can lookup and map the GL Account code to wages, allowance, overtime, bonus, etc., accordingly.



2. Example of account mapping:

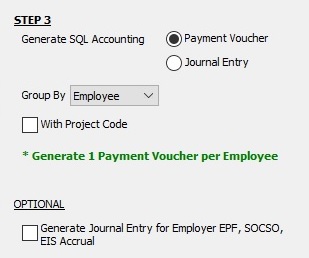

Step 4: Posting Method

1. Generate posting entry by Payment Voucher or by Journal Entry.

2. Group by Employee (available in payment voucher), Branch, Department, HR Group, or Category.

3. Check With Project Code to post the entry with a project code.

4. OPTIONAL: Generate Journal Entry for Employer EPF, SOCSO Accrual (unchecked by default). Some companies may charge the Employer EPF and SOCSO accrual in the next month.



Generate Payment Voucher / Journal Entry (Export)

To generate the Payment Voucher or Journal Entry from SQL Payroll, click on Generate.

Import Payment Voucher / Journal Entry (Import)

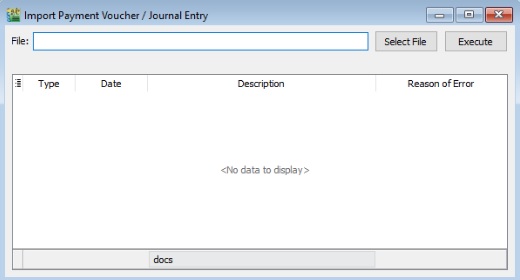

1. Login to the SQL Account database.

2. Go to File > Import > (SQL Payroll) Import Payment Voucher / Journal Entry...

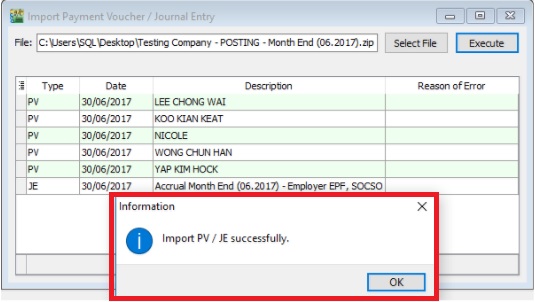

3. Click on Select File and choose the Payment Voucher/Journal Entry (payroll data) generated from SQL Payroll.



4. Click on Execute.
